Description

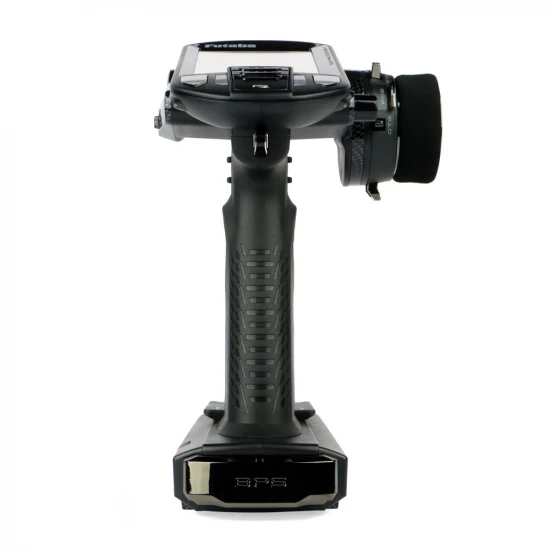

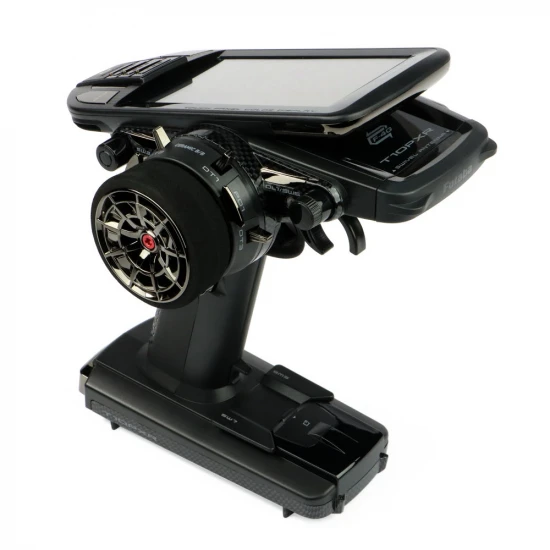

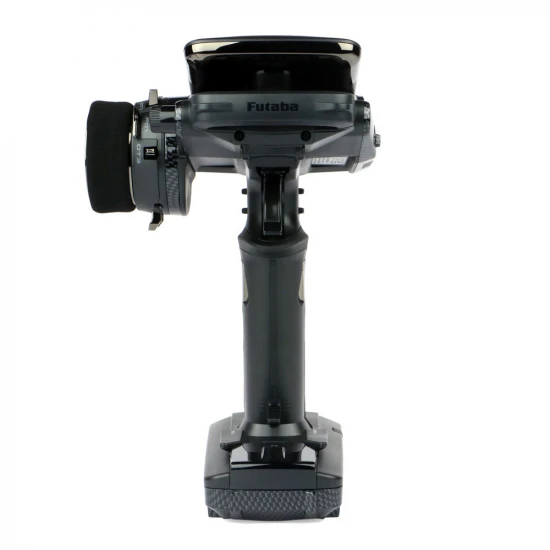

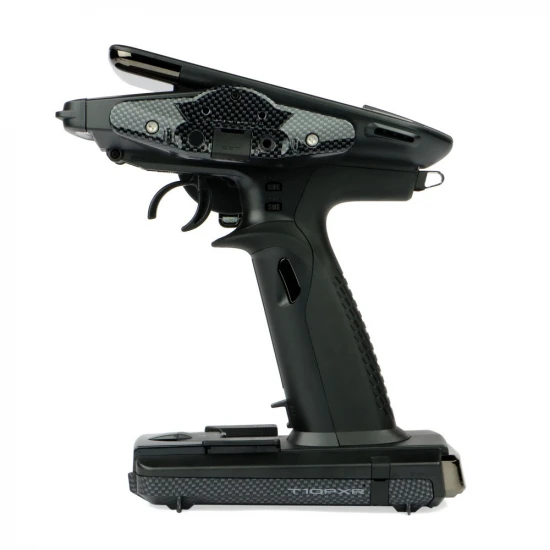

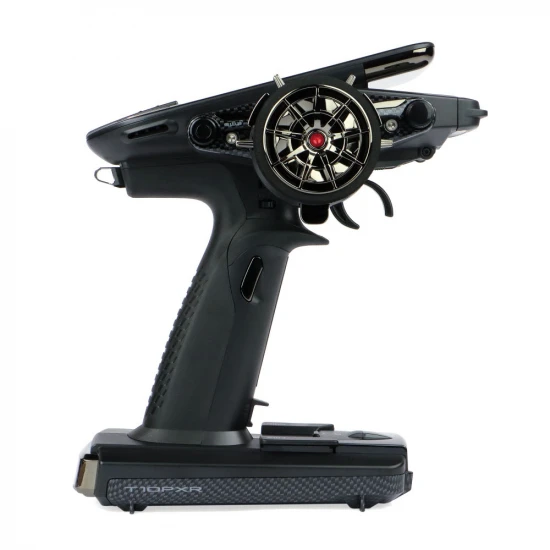

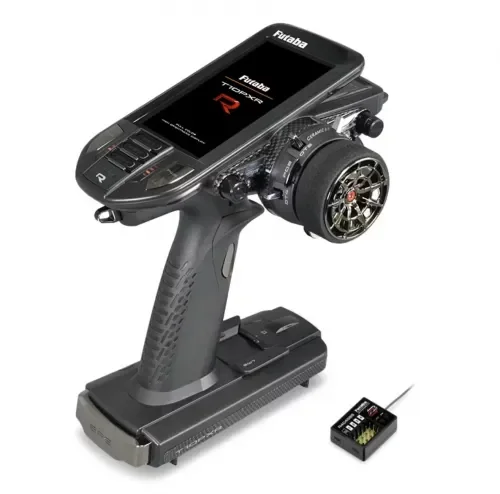

The Futaba T10PXR With R404SBS Receiver (FUT05003237-3) is a 10-channel surface radio system for radio-controlled models, supplied as a transmitter and receiver set. It is built around Futaba's fourth generation F-4G telemetry system, which the manufacturer states gives 30% faster response with UR servos, and it also supports FHSS, T-FHSS, T-FHSS SR and Mini-Z protocols.
The transmitter has a 4.3 inch full-colour HVGA transflective touchscreen that can be read both indoors and outdoors. From it you can adjust settings such as throttle curves, dual rates and telemetry readouts. With 40 model memories and model names of up to 15 characters, one radio can hold setups for a range of vehicles, including cars, trucks, tanks and crawlers. Telemetry can report temperature, RPM, voltage, amps and GPS data.
A wide set of mixing functions is built in, covering steering, brake, four-wheel steering, dual ESC, gyro, tank and track, winch, tilt and CPS lighting control, plus five programmable mixes. Traction control, A.B.S., throttle speed, steering speed and a 15-point response adjustment let you smooth out how the car reacts to inputs. A steering trim memory stores trim settings so you can switch between them as tyres wear during a long race.
The grip can be tailored with ceramic bearings on the wheel and trigger, adjustable wheel offset, angle and tension, trigger position adjustment and an alternative narrower grip. The radio can be converted to left-hand operation. Vibration alerts, voice feedback, a USB port and a microSD card slot for software updates and data storage are also included. It runs on four AA alkaline batteries, which are not supplied, or on the optional LT2F2000B LiPo battery. The Mini-Z protocol is offered for suggested compatibility with Kyosho Mini-Z models.
Specifications
- Channels: 10
- Radio protocols: F-4G, T-FHSS SR, T-FHSS, FHSS, Mini-Z
- Screen: 4.3 inch HVGA transflective colour LCD
- Model memory: 40
- Colour: Black
What's Included
- T10PXR 10-channel transmitter
- R404SBS receiver
- Dry battery holder (4x AA)
- LiPo battery spacer
- Wheel offset adapter and screws
- Wheel adapter and wheel angle spacer
- Large diameter steering wheel
- Large brake lever and twin finger brake lever
- Rubber grip, trigger guard and blind paddle set
- Hex wrench, UR/SR label sheet and short manual
Secured by Stripe
Futaba T10PXR With R404SBS Receiver Manuals & Guides
Manuals & Guides
Specifications
Race winning drivers will fully appreciate Futaba's T10PXR for this is a truly top-tier surface radio that's engineered for performance while offering complete customisation. Designed for those who seek the competitive edge, the 10PXR fuses cutting-edge technology with Futaba's renowned reliability, delivering unrivalled precision for anyone with a podium place in their sights.
Powered by Futaba’s ultra-fast 4th generation F-4G telemetry system, the PXR offers lightning-fast response and near-zero latency – giving a critical edge on the track. Meanwhile, its 10-channel capability is paired with an impressive 40 model memory, allowing you to manage all the vehicles you need with total ease, from 1/8 nitro buggies to electric touring cars, trucks, tanks and and everything in between. But, of course, there's more. Boasting 4.3 inches of vibrant full-colour, the transflective touchscreen delivers an intuitive and highly responsive interface, giving you full control over advanced settings such as throttle curves, dual rates and telemetry readouts. Among its standout features are dedicated truck and track mix menus, designed specifically for managing multi-axle trucks or dual-motor crawlers, as well as fine-tuning of traction and balance over different surfaces – ideal for competitive off-roaders who demand adaptability across disciplines.

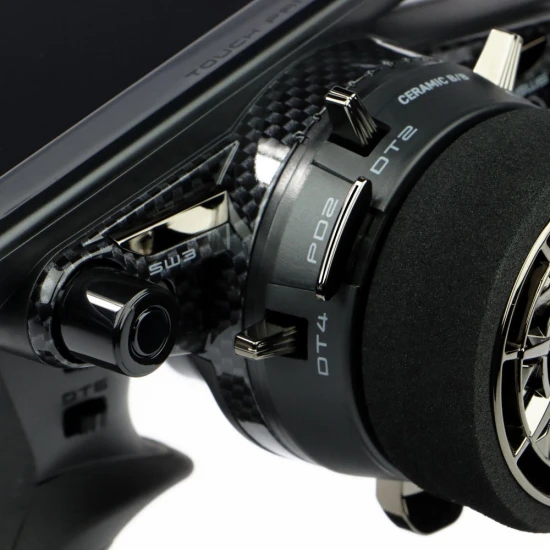

Ergonomically refined, the T10PXR features precision ceramic bearings on both trigger and wheel, along with adjustable steering angles, wheel and trigger adjustment, tension adjustment and even an alternative (narrower) grip. And, of course, it can quickly be converted to left-hand operation, all the above ensuring a perfectly tailored feel in the hand. USB connectivity, voice feedback and vibration alerts further enhance its capabilities making this radio as smart as it is powerful. As with the T10XCR new steering trim functionality memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.

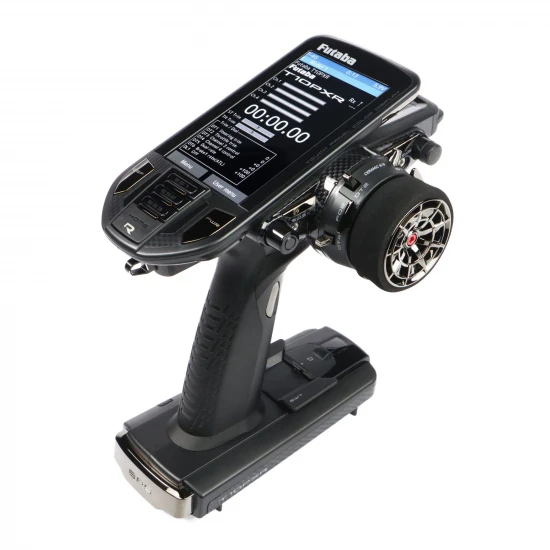

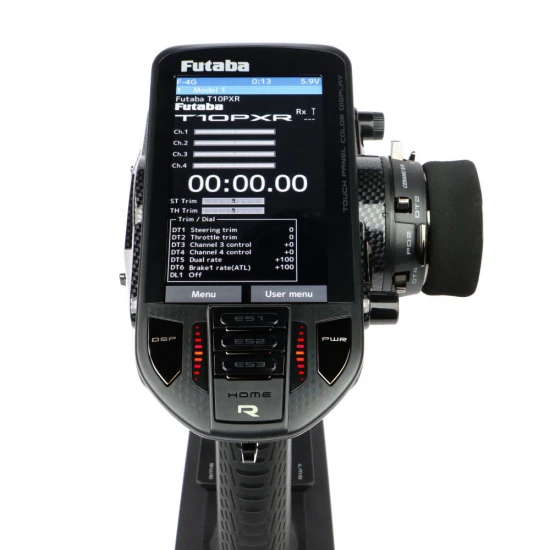

Full colour touch screen
The T10PXR has an HVGA 4.3 inch transflective screen, which enables both indoor and outdoor visibility.
F-4G system and telemetry
The F-4G system enables 30% faster response with UR servos.
10 channels
Enjoy full control with 10 channel availability.
T-FHSS Mini-Z system
By setting the Mini-Z system you can pair with compatible Kyosho Mini-Z models.
Updateable software
Software can be updated by microSD card. Model data and telemetry data can also be saved on a microSD card.
40 model memory
Model names can use up to 15 letters, number and symbols.
Response adjustment (feeling)
Smooth out the steering and throttle response using a 15-point scale.

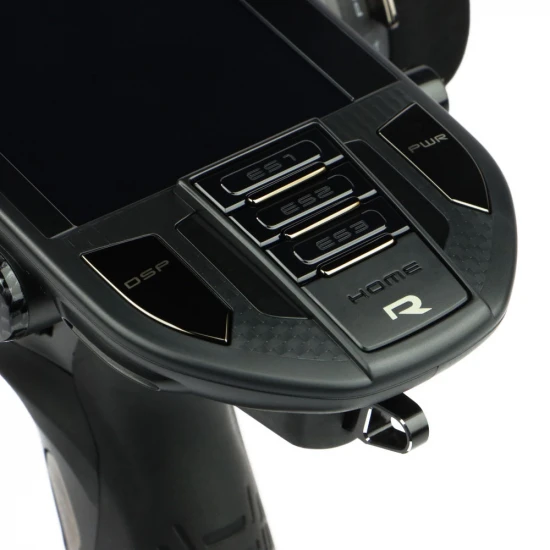

Switch availability
Assign functions to 10 switches and alter the operating direction.

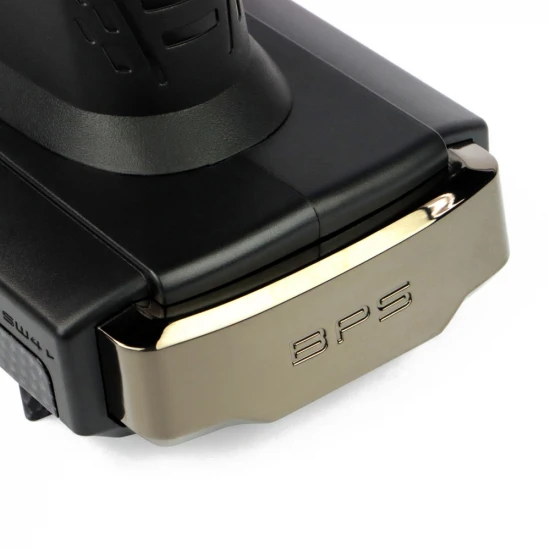

LiPo battery option
For extended running times the optional LT2F2000B LiPo battery can be used as the transmitter's power supply.
Brake mixing
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steer mixing
Smoother cornering can be achieved using the independent left and right steering servo setting.
4WS mixing
For use with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PXR.
Tank mixing
For tanks, excavators and all tracked vehicles.
CPS mixing
LED lighting / flashing control can be matched to steering and throttle operation.
S.BUS servo
A handy function that allows the setting of S.Bus servo parameters.
MC-Link
A dedicated function allowing Futaba speed controller data changes to be made via a PC.
Throttle speed
Sudden trigger operation on a slippery road surface can cause tyres to spin. Setting the throttle speed allows the operation to be performed smoothly and easily.
Non-telemetry LED
Confirms when the telemetry function is OFF.
Dial select function
This assigns functions to dials. The step amount and operating direction can also be adjusted.

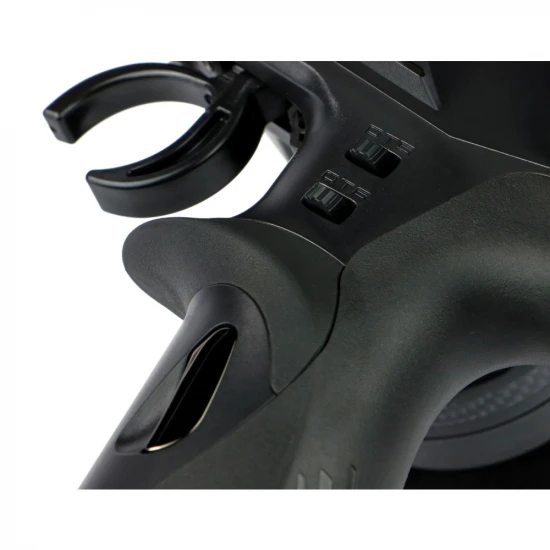

Wheel & Trigger adjustment
Adjustment of wheel offset, mounting angle and throttle trigger position.
Trim/dial lock functions
The lock functions prohibit the setting and operation of the transmitter trims and dials.
Steering trim memory
Memorises steering trim settings and allows you toggle between them to counter tyre wear during a long race.
Vibration warning
Vibration alert can be applied to the grip and linked to the the timer, battery level and a variety of other warnings.
Futaba T10PXR With R404SBS Receiver Key Features:
- 10 channels (F-4G system).
- 40 model memories.
- F-4G, FHSS, T-FHSS, T-FHSS SR & Mini-Z protocols.
- Full colour 4.3 inch HVGA transflective LCD.
- Telemetry (temp / RPM / volts / amps / GPS).
- Acceleration (preset throttle jump).
- Steering mix (twin servo).
- Brake mix (independent adjustment of front & rear).
- Gyro mix (remote gain adjustment).
- 4WS mix (tuning of front and rear steering).
- Dual ESC mixing (control of front & rear motors).
- CPS mixing (Channel Power Switch control).
- Winch mix (winch control via trim).
- Tank / track mix (throttle & steering).
- Tilt mix (for yachts and powerboats).
- Program mixing (5 available).
- Condition programming (setting & switching parameters).
- Exponential (steering, throttle & brake).
- Response adjustment (15 point throttle & steering scale).
- Steering speed (adjustment of steering servo).
- Throttle speed (adjustment of throttle servo).
- Servo response (to adjust over sensitivity).
- Traction control (prevents wheel spin).
- A.B.S. (prevents skidding during braking).
- Engine cut (switch assigned).
- Trim / dial lock.
- Drag racing (switch controlled trans brake).
- Idle-up (reliable idling or unintentional braking).
- Timers (x4 - up, fuel down, lap & lap navigate).
- Lap list (lap time memory / recall).
- S.Bus servo (parameter setting).
- MC link (facilitates ESC programming).
- Gyro link (wireless parameter setting).
- Warning alarms (various).
- Vibration alerts (numerous).
- Intuitive programming interface.
- MicroSD card (software updates & storage of data).
- Supports left-handed operation.
- USB (games controller) port.

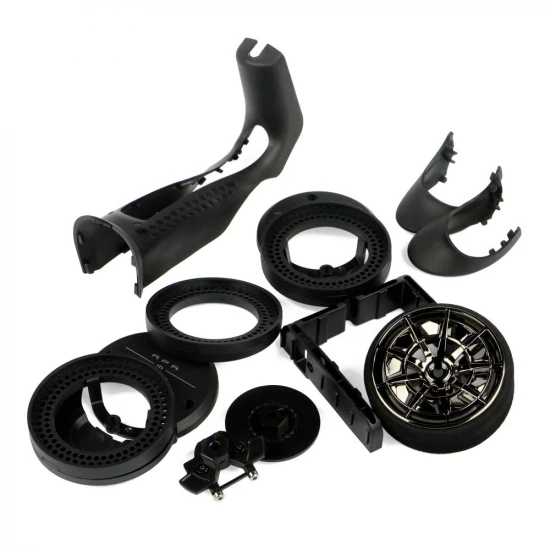

What's in the Box:
- 1x T10PXR 10-channel transmitter.

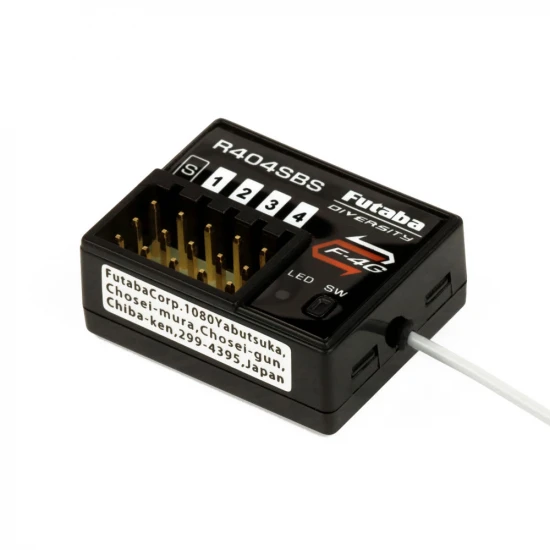

- 1x R404SBS receiver.
- 1x Dry battery holder (4x AA).
- 1x LiPo battery spacer.
- 1x Wheel offset adapter & screws.
- 1x Wheel adapter (32 degree).
- 1x Wheel angle spacer (5 degree).
- 1x Large diameter steering wheel.
- 1x Trigger guard.
- 1x Brake lever (large).
- 1x Twin finger brake lever.
- 1x Rubber grip.
- 1x Blind paddle set.
- 1x Hex wrench.
- 1x UR/SR label sheet.
- 1x Short manual.
Needed to Complete:
- 4x AA alkaline batteries.
Futaba T10PXR With R404SBS Receiver Tech Specs:
- Shipping Weight: 1.13kg / 2.50lbs
- Channels: 10
- Radio Protocol: F-4G, T-FHSS SR, T-FHSS, FHSS, Mini-Z
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05003237-3
- Barcode: 4513886041211
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Steerwheel
