Description

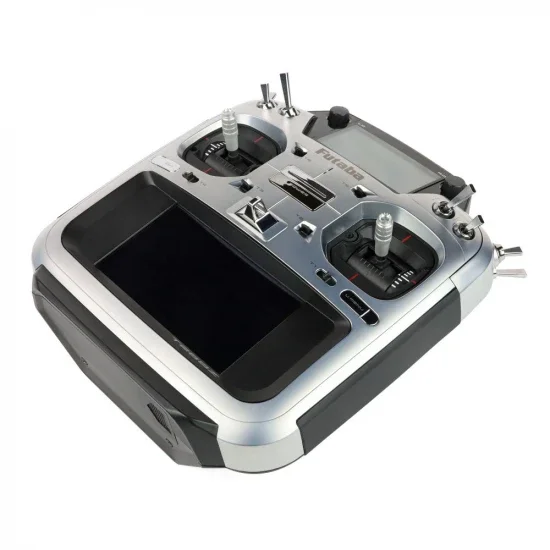

The Futaba T26SZ with R7208SB Receiver (part number FUT05003225-3) is a 26-channel radio control transmitter and receiver set for fixed-wing and helicopter models, supporting the T-FHSS, S-FHSS and FASSTest protocols. It sits between Futaba's T16IZS and the range-topping T32MZ-WC, and is aimed at pilots who fly a wide variety of models and want extensive programming options.
The main display is a 4.3 inch full colour backlit touchscreen that can be read indoors and outdoors, while a secondary reflective LCD shows telemetry information. The gimbals use magnetic non-contact potentiometers, and the throttle stick has an external adjustment screw for choosing ratchet or self-neutralising spring action. Four of the shoulder toggles can be replaced with two-position, three-position or momentary switches of your choice.
S.BUS2 allows several servos, gyros and telemetry sensors to be connected with a minimum of cabling. With the MPDX-1 multiprop decoder (sold separately), one channel can be divided into eight, and two decoders can be used. A microSD port handles software updates, model data and picture files, and the 2100mAh Li-ion battery is charged over USB-C.
Programming covers 30 model memories, 8 flight conditions, 30 pre-programmed mixers and 10 free mixers, along with a retract and door sequencer, 13 fixed-wing types and 8 helicopter swash types. The telemetry system supports 14 sensor types, including temperature, RPM, altitude, GPS, voltage, current and data logging. Gyro settings are provided for the CGY755, CGY760R, CGY770R and GYA553, as suggested compatibility.
Additional Features
- Vibration alert and voice output
- Earphone jack
- Wireless trainer system
- Four stick modes (1-4)
- Four rear sliders (paired)
- 240 step sub trim
- Model image display and calendar clock
Specifications
- Channels: 26
- Model memory: 30
- Weight with battery: 920 g
- Dimensions: 190 x 205 x 64 mm (length x height x width)
- Colour: Black and silver
- Age recommendation: 14+
Secured by Stripe
Futaba T26SZ with R7208SB Receiver Manuals & Guides
Specifications
Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the '26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we re tempted to say, the perfect choice. Here's just a hint of what to expect:
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

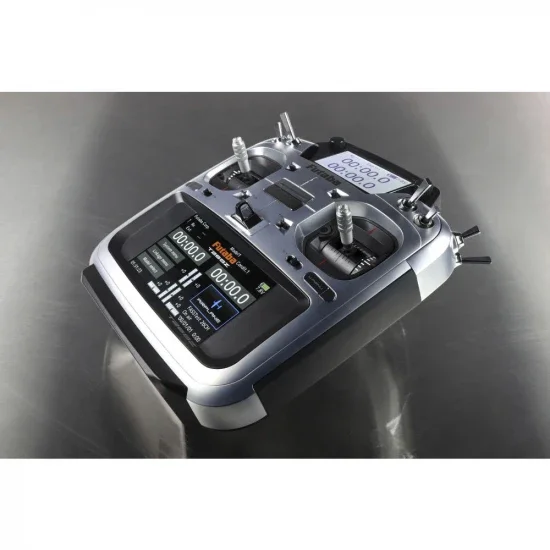

COLOUR LCD MAIN DISPLAY
HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

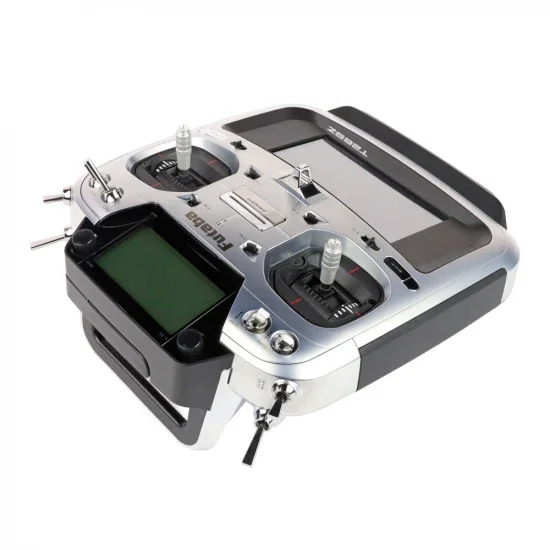

LCD SECONDARY DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.
SD CARD PORT
Update software, store model data and upload picture files using the microSD port.
HIGH CAPACITY LI-ION
2100mAh offers a comfortable operating duration and real peace of mind.
INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.
MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.
FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.
SWITCH REPLACEMENT

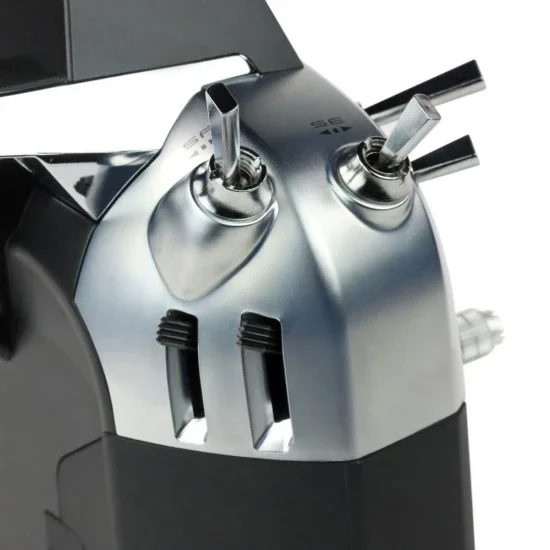

Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.
Key Programming FeaturesFor full list see manual
- Model name (15 characters)
- Sub trim
- Sub trim balance
- Servo reverse
- Fail-safe
- Exponential
- Throttle cut
- End point / ATV (30 - 140%)
- Servo speed
- Trainer function
- Servo monitor
- Trim setting (step, rate, mode)
- Data editor (for S.Bus equipment)
- 10 programmable mixers
- 30 pre-programmed mixers
- Aileron differential
- Air brake
- Flap trim
- Flap setting
- Butterfly
- Camber mix
- Camber flap-elevator
- Elevator to camber
- Aileron to camber flap
- Aileron to rudder
- V tail
- Ailevator
- Winglet
- Aileron to brake flap
- Snap roll
- Servo monitor
- Twin timers
- Stick alarm
- Battery fail-safe
- Gyro sense
- Multi engine
- Motor mix
- Condition name
- AFR (dual rate)
- AFR (curve mode)
- AFR curve point number (17 points)
- Logic switch (condition switch only)
- Acceleration mixing
- Pitch curve / pitch trim
- Throttle curve / throttle hover trim
- Pitch to needle mix
- Revolution mix
- Swash ring
- Idle down
- Throttle limiter
- Swash setting
- Swash AFR
- System timer
- Function setting
- Governor Telemetry functions
- Temperature
- RPM (magnetic & optic)
- Altitude
- GPS
- Voltage
- Receiver battery
- Current
- Data logging
Futaba T26SZ with R7208SB Receiver Key Features:
- Full colour 4.3 inch touch screen.
- 3.0 LCD sub display.
- High quality finish.
- Model image display.
- Smooth non-contact stick potentiometer.
- Shoulder switch upgrade / replacement.
- Four rear sliders (paired).
- Vibration alert.
- Voice.
- Telemetry system.
- Four stick modes (1-4).
- MicroSD card software update.
- High capacity LiPo.
- Earphone jack.
- USB-C charging.
- Calendar clock.
- S.BUS I/F enabled.
- Wireless trainer system.
- 240 step sub trim.
- Sub trim balance.
- DLPH-2 settings.
- Receiver mode-setting port.
- Gyro setting for CGY755 / 760R / 770R / GYA553.
- 8 flight conditions.
- 30 pre-programmed mixers.
- 10 free programmable mixers.
- Retract and door sequencer.
- 13 fixed-wing types.
- 3 fixed-wing tail types.
- 2 fixed-wing rudder types.
- 8 helicopter swash types.
- Supports 14 telemetry sensor types.
Futaba T26SZ with R7208SB Receiver Tech Specs:
- Weight with Battery: 920g / 32.45oz
- Shipping Weight: 1.60kg / 3.52lbs
- Product Height: 205mm / 8.07in
- Product Width: 64mm / 2.52in
- Product Length: 190mm / 7.48in
- Age Recommendation: 14+
- Channels: 26
- Radio Protocol: T-FHSS [Air], S-FHSS [Air], FASSTest
- Model Memory: 30
- Colour: Black + Silver
- Battery: Yes
Key Info:
- Brand: Futaba
- Part No: FUT05003225-3
- Barcode: 4513886039621
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
