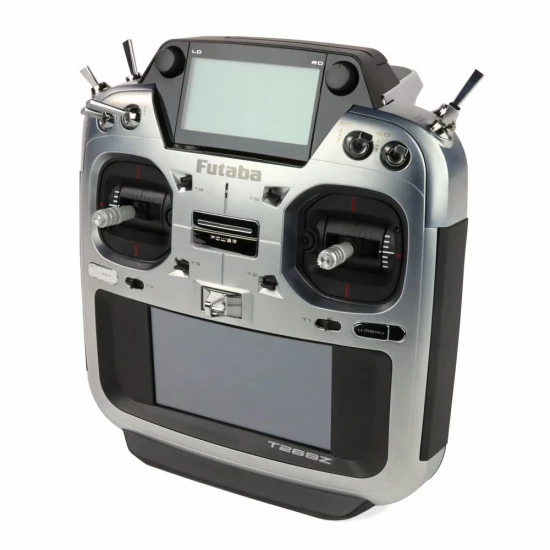

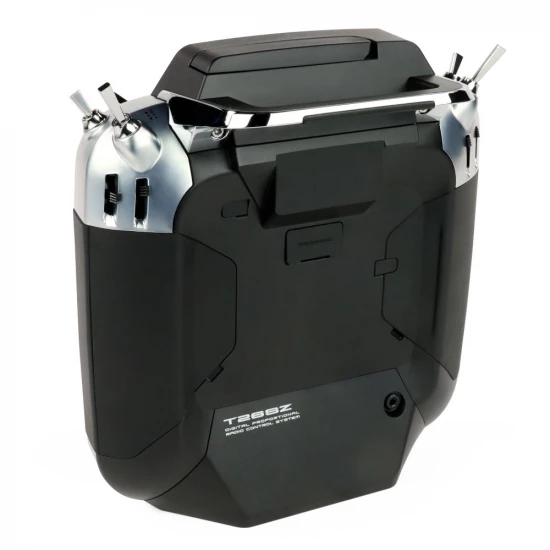

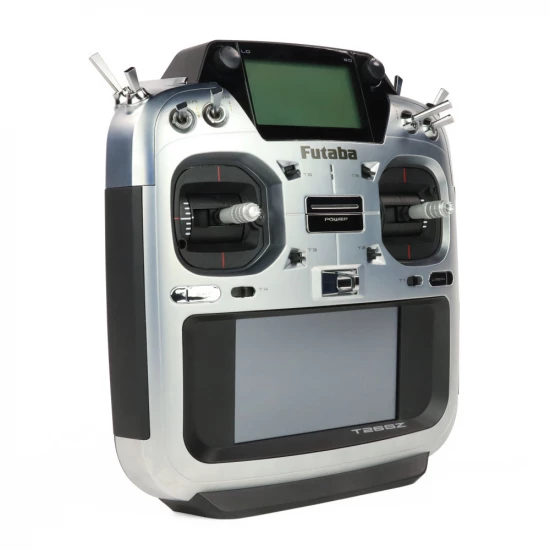

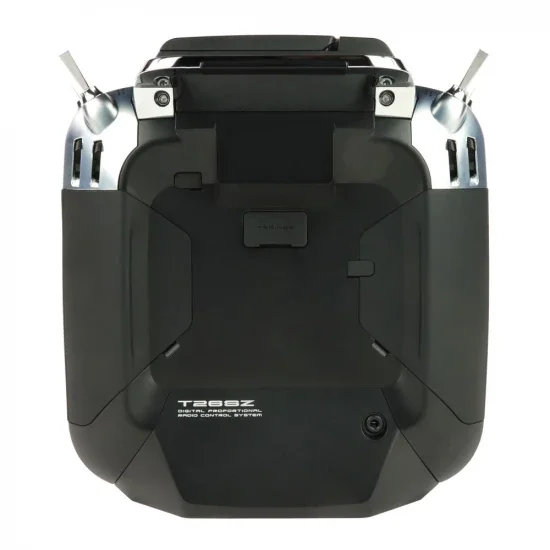

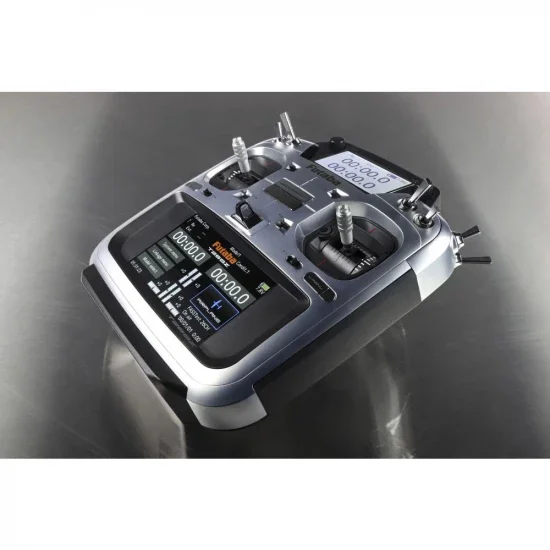

Futaba T26SZ with R7214SB Receiver

Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the '26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we re tempted to say, the perfect choice. Here's just a hint of what to expect:

S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

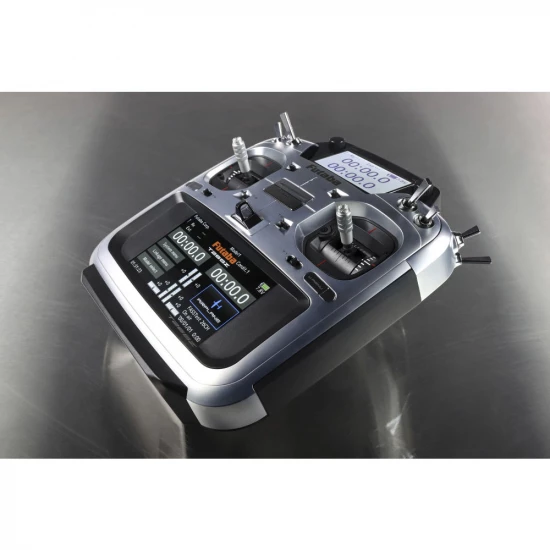

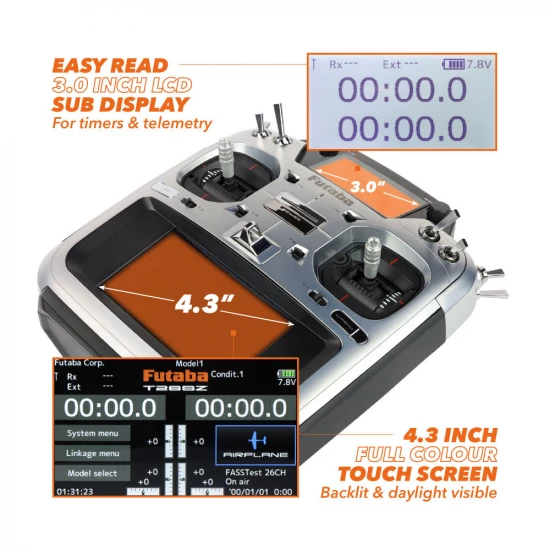

COLOUR LCD MAIN DISPLAY
HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

LCD SECONDARY DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.

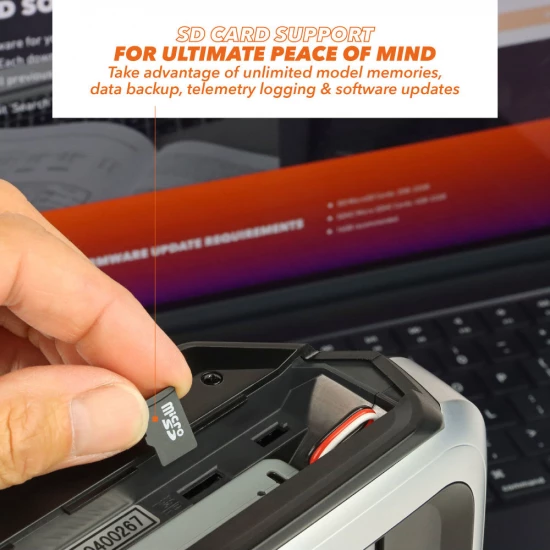

SD CARD PORT
Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-ION
2100mAh offers a comfortable operating duration and real peace of mind.

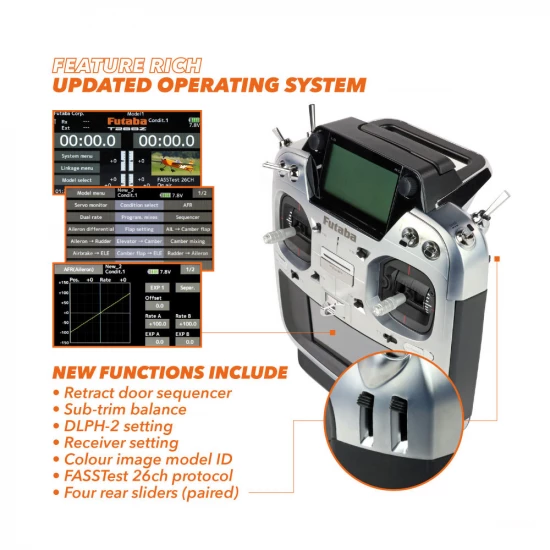

INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD

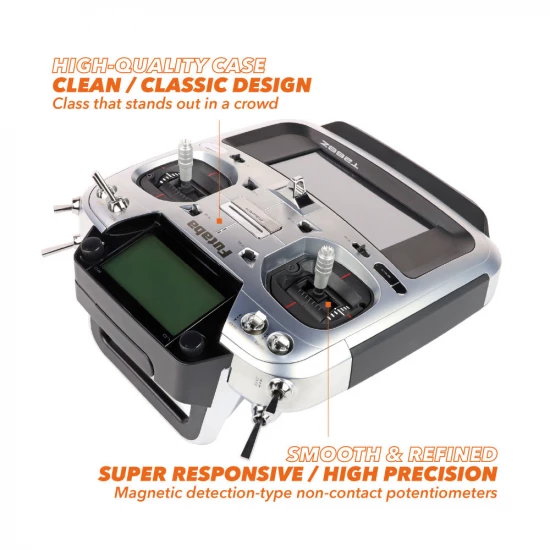

Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

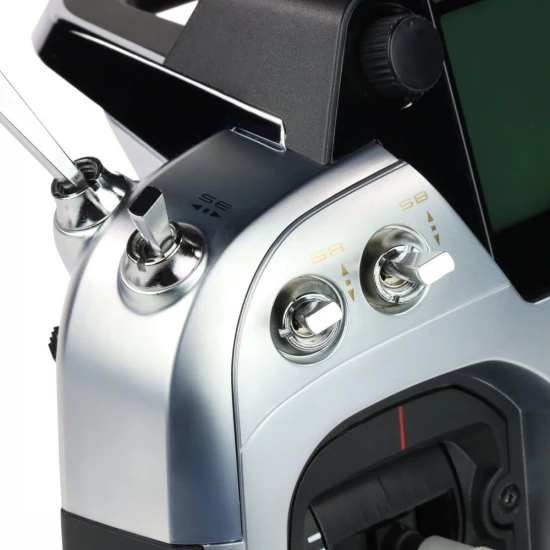

SWITCH REPLACEMENT

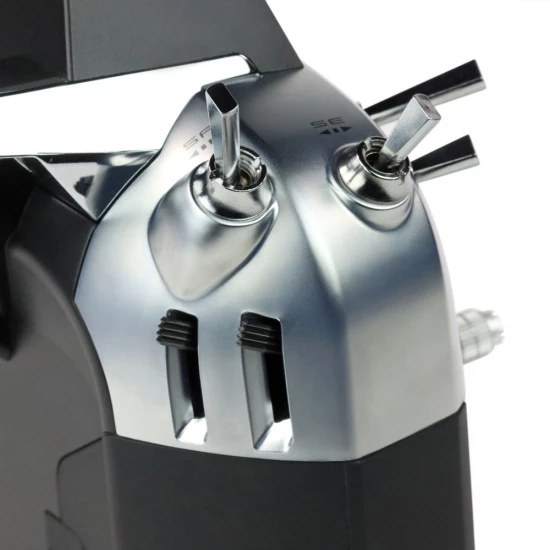

Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

• Model name (15 characters)
• Sub trim
• Sub trim balance
• Servo reverse
• Fail-safe
• Exponential
• Throttle cut
• End point / ATV (30 - 140%)
• Servo speed
• Trainer function
• Servo monitor
• Trim setting (step, rate, mode)
• Data editor (for S.Bus equipment)
• 10 programmable mixers
• 30 pre-programmed mixers
• Aileron differential
• Air brake
• Flap trim
• Flap setting
• Butterfly
• Camber mix
• Camber flap-elevator
• Elevator to camber
• Aileron to camber flap
• Aileron to rudder
• V tail
• Ailevator
• Winglet
• Aileron to brake flap
• Snap roll
• Servo monitor
• Twin timers
• Stick alarm
• Battery fail-safe
• Gyro sense
• Multi engine
• Motor mix
• Condition name
• AFR (dual rate)
• AFR (curve mode)
• AFR curve point number (17 points)
• Logic switch (condition switch only)
• Acceleration mixing
• Pitch curve / pitch trim
• Throttle curve / throttle hover trim
• Pitch to needle mix
• Revolution mix
• Swash ring
• Idle down
• Throttle limiter
• Swash setting
• Swash AFR
• System timer
• Function setting
• Governor
Telemetry functions
• Temperature
• RPM (magnetic & optic)
• Altitude
• GPS
• Voltage
• Receiver battery
• Current
• Data logging

Futaba T26SZ with R7214SB Receiver Key Features:

• Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the '26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we re tempted to say, the perfect choice. Here's just a hint of what to expect:

  S.BUS2 SYSTEM
  Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

  COLOUR LCD MAIN DISPLAY
  HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

  LCD SECONDARY DISPLAY
  A high quality reflective LCD for easy recognition of telemetry information.

  SD CARD PORT
  Update software, store model data and upload picture files using the microSD port.

  HIGH CAPACITY LI-ION
  2100mAh offers a comfortable operating duration and real peace of mind.

  INTUITIVE PROGRAMMING
  Model-specific programming and editing has never been easier.

  MULTIPROP CHANNEL EXPANSION
  Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

  FEELS GOOD
  Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

  SWITCH REPLACEMENT
  Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.



  Key Programming Features:

  For full list see manual
  • Model name (15 characters)
  • Sub trim
  • Sub trim balance
  • Servo reverse
  • Fail-safe
  • Exponential
  • Throttle cut
  • End point / ATV (30 - 140%)
  • Servo speed
  • Trainer function
  • Servo monitor
  • Trim setting (step, rate, mode)
  • Data editor (for S.Bus equipment)
  • 10 programmable mixers
  • 30 pre-programmed mixers
  • Aileron differential
  • Air brake
  • Flap trim
  • Flap setting
  • Butterfly
  • Camber mix
  • Camber flap-elevator
  • Elevator to camber
  • Aileron to camber flap
  • Aileron to rudder
  • V tail
  • Ailevator
  • Winglet
  • Aileron to brake flap
  • Snap roll
  • Servo monitor
  • Twin timers
  • Stick alarm
  • Battery fail-safe
  • Gyro sense
  • Multi engine
  • Motor mix
  • Condition name
  • AFR (dual rate)
  • AFR (curve mode)
  • AFR curve point number (17 points)
  • Logic switch (condition switch only)
  • Acceleration mixing
  • Pitch curve / pitch trim
  • Throttle curve / throttle hover trim
  • Pitch to needle mix
  • Revolution mix
  • Swash ring
  • Idle down
  • Throttle limiter
  • Swash setting
  • Swash AFR
  • System timer
  • Function setting
  • Governor
  Telemetry functions
  • Temperature
  • RPM (magnetic & optic)
  • Altitude
  • GPS
  • Voltage
  • Receiver battery
  • Current
  • Data logging

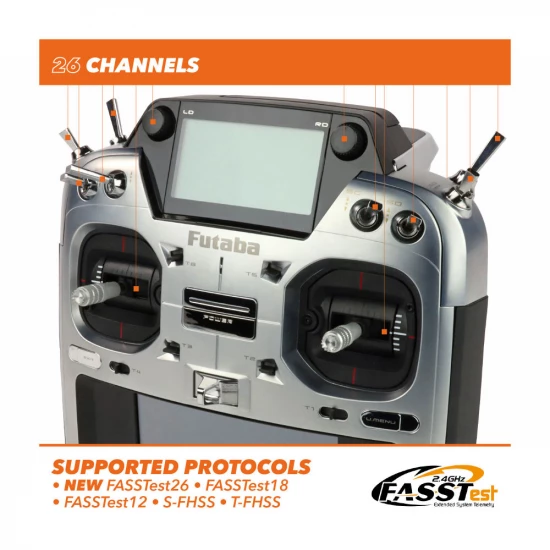

• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols.
• 26 channels (24+2).
• Full colour 4.3 inch touch screen.
• 3.0 LCD sub display.
• High quality finish.

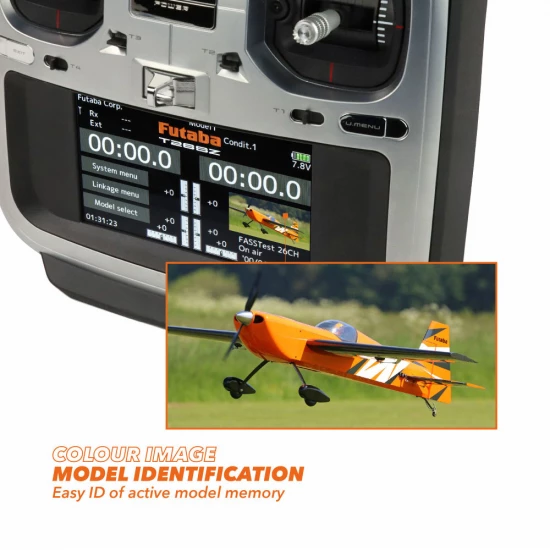

• Model image display.
• Smooth non-contact stick potentiometer.
• Shoulder switch upgrade / replacement.
• Four rear sliders (paired).
• Vibration alert.
• Voice.
• Telemetry system.
• Four stick modes (1-4).
• MicroSD card software update.
• High capacity LiPo.
• Earphone jack.

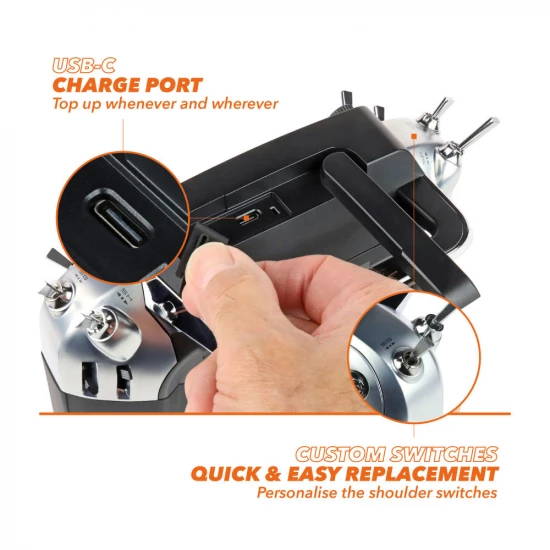

• USB-C charging.
• Calendar clock.
• S.BUS I/F enabled.
• Wireless trainer system.
• 240 step sub trim.
• Sub trim balance.
• DLPH-2 settings.
• Receiver mode-setting port.
• Gyro setting for CGY755 / 760R / 770R / GYA553.
• 8 flight conditions.
• 30 pre-programmed mixers.
• 10 free programmable mixers.
• Retract and door sequencer.
• 13 fixed-wing types.
• 3 fixed-wing tail types.
• 2 fixed-wing rudder types.
• 8 helicopter swash types.
• Supports 14 telemetry sensor types.

What's in the Box:

• 1x T26SZ 26-channel transmitter.
• 1x R7214SB receiver.
• 1x 7.4V 2000mAh Li-Ion Tx battery pack.
• 1x USB-C charge lead.
• 1x Neck strap.
• 1x Tool set.
• 1x Short manual (full manual download).

Manuals & Parts Explosions:

Futaba T26SZ with R7214SB Receiver Tech Specs:

• Weight with Battery: 920g / 32.45oz
• Shipping Weight: 1.60kg / 3.53lbs
• Product Height: 205mm / 8.07in
• Product Width: 64mm / 2.52in
• Product Length: 190mm / 7.48in

• Age Recommendation: 14+
• Channels: 26
• Radio Protocol: T-FHSS [Air], S-FHSS [Air], FASSTest
• Model Memory: 30
• Colour: Silver / Black

• Battery: Yes

• Brand: Futaba
• Part No: FUT05003226-3
• Barcode: 4513886039638
• Receivers Included: 1
• Frequency: 2.4Ghz
• Channels: 9+ Channel
• Format: Stick
