Description

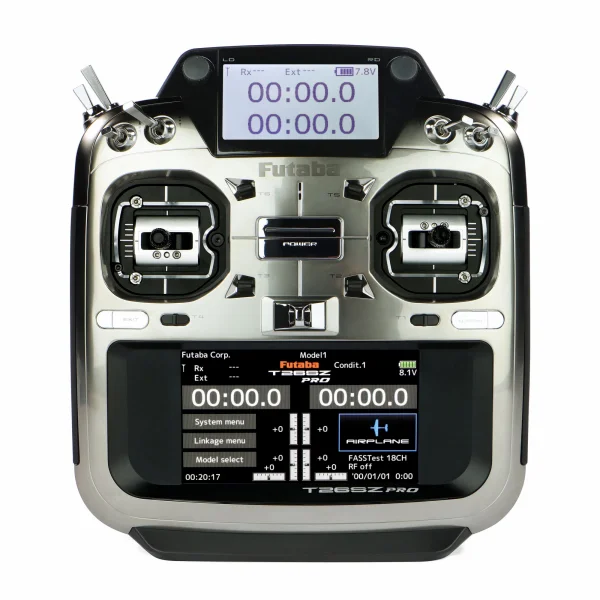

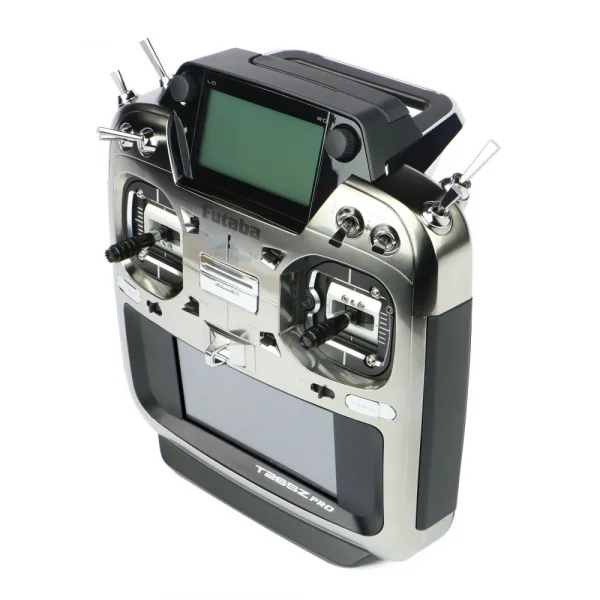

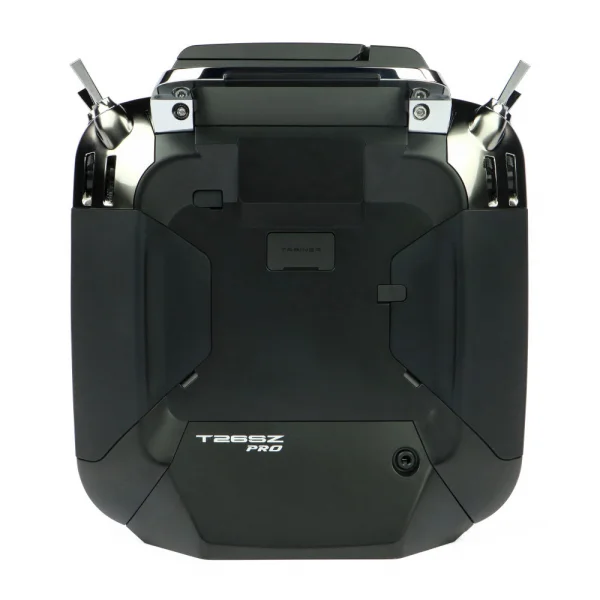

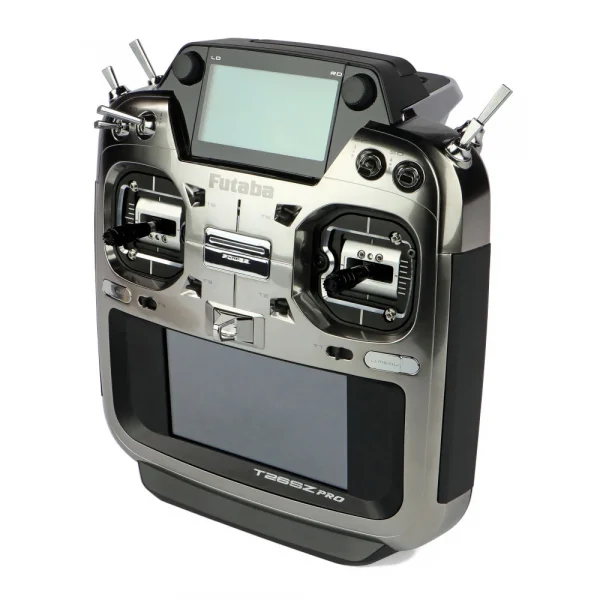

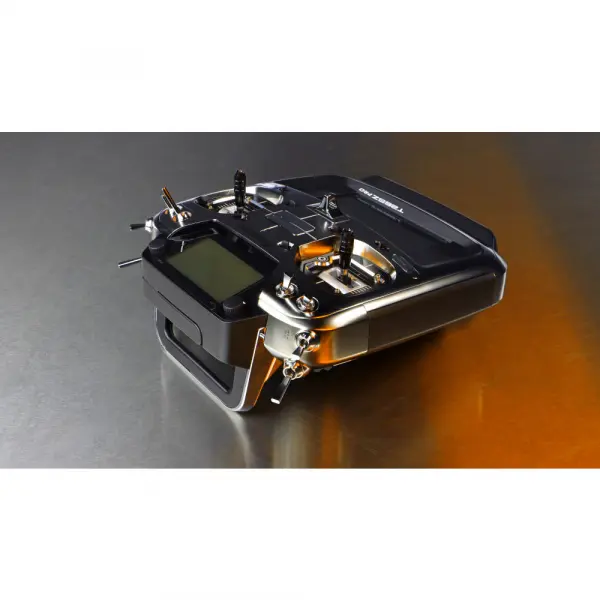

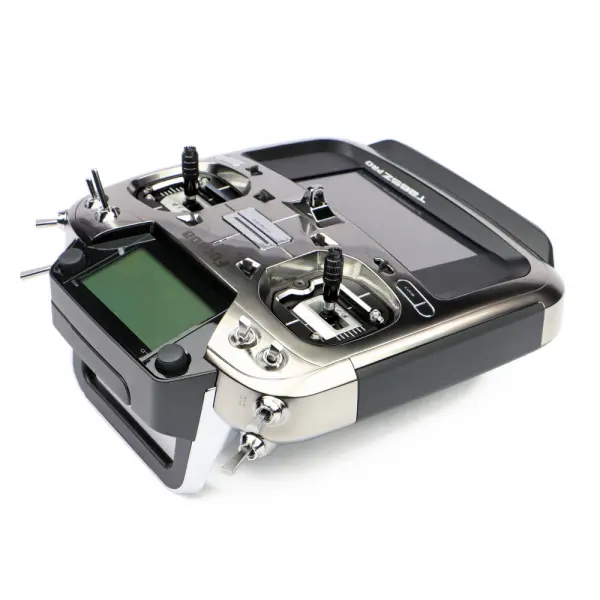

The Futaba T26SZ With R7214SB Receiver, part number FUT05003235-3, is a 26-channel air radio system supplied with an R7214SB receiver, a full colour touch screen and an aluminium carry case.

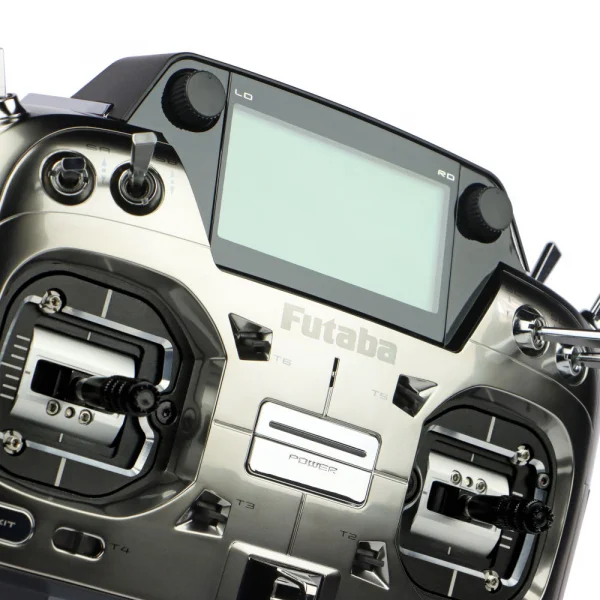

This transmitter sits between Futaba's T16IZS and the range-topping T32MZ-WC. It has a metallic finish, CNC aluminium gimbals that can be adjusted from the outside and black anodised sticks. The sticks use magnetic non-contact potentiometers for smooth, long-lasting movement, and an external screw on the throttle stick lets you choose between a ratchet and a self-neutralising spring. Four of the toggles on the left and right shoulders can be swapped for two-position, three-position or momentary switches.
The radio supports the FASSTest26, FASSTest18, FASSTest12, S-FHSS and T-FHSS protocols. S.BUS2 allows several servos, gyros and telemetry sensors to be connected with a minimum of cabling. Telemetry covers temperature, RPM (magnetic and optical), altitude, GPS, voltage, receiver battery, current and data logging, and 14 sensor types are supported. An MPDX-1 multiprop decoder, sold separately, can divide one channel into eight, and two decoders can be used.

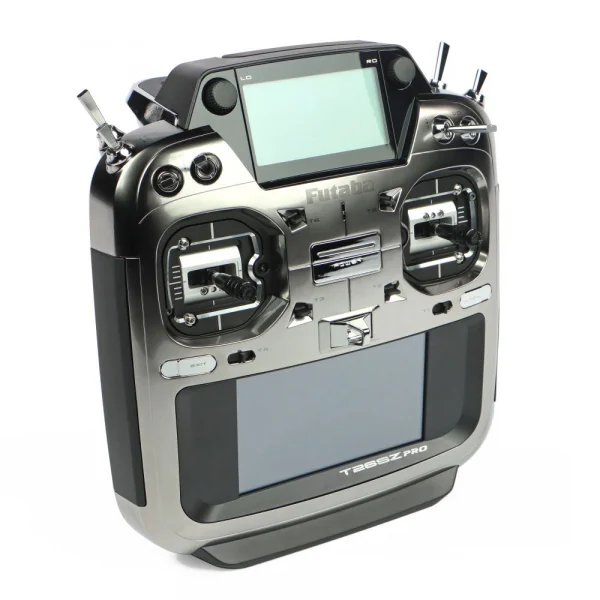

The main display is a 4.3 inch backlit transflective touch screen that can be read indoors and outdoors, while a secondary LCD shows telemetry information. A microSD port handles software updates, model data and picture files. Power comes from a rechargeable Li-Ion pack that charges over USB-C. Programming includes 8 flight conditions, 30 pre-programmed mixers, 10 free mixers, a retract and door sequencer, 13 fixed-wing types and 8 helicopter swash types, with memory for 30 models.
What's Included
- T26SZ Pro 26-channel transmitter

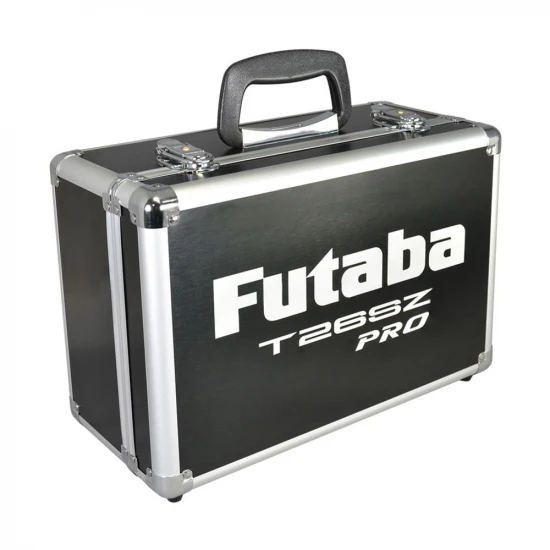

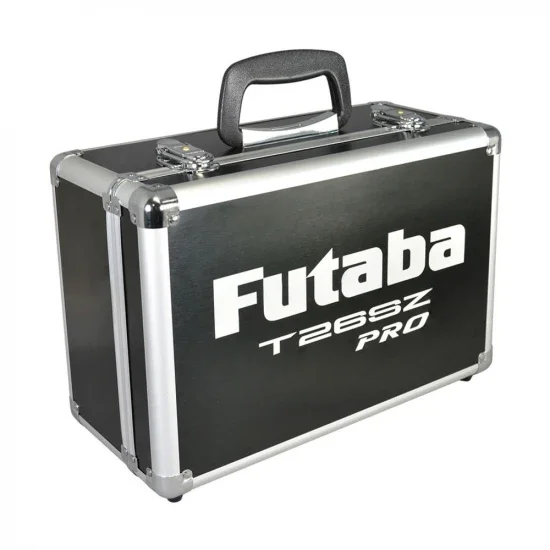

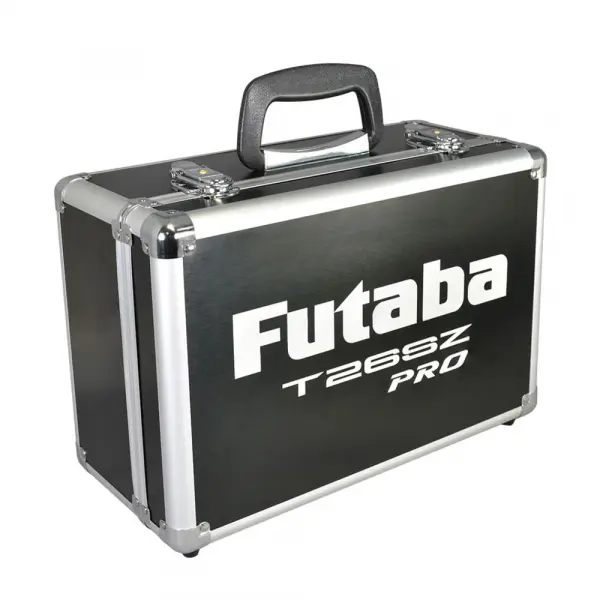

- Aluminium carry case
- R7214SB receiver
- 7.4V 2000mAh Li-Ion transmitter battery pack
- USB-C charge lead
- Neck strap
- Tool set
- Printed instruction manual (short)
Specifications
- Channels: 26
- Model memory: 30
- Weight with battery: 920 g
- Height: 205 mm
- Width: 64 mm
- Length: 190 mm
- Age recommendation: 14+
Secured by Stripe
Futaba T26SZ With R7214SB Receiver Manuals & Guides
Manuals & Guides
Specifications
Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba's brand-new, high end T26SZ Pro is a premium quality version of the much-loved T26SZ. Featuring an eye-catching metallic finish, fully externally-adjustable precision CNC aluminium gimbals and black anodised sticks this desirable radio also comes with a high-quality aluminium case. With its elegant styling and latest FASSTest 26ch protocol, the '26SZ Pro is destined to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, it is, we re tempted to say, the ultimate choice. Here's just a hint of what to expect:
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.
COLOUR LCD MAIN DISPLAY
HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.
LCD SECONDARY DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.
SD CARD PORT
Update software, store model data and upload picture files using the microSD port.
HIGH CAPACITY LI-ION
2100mAh offers a comfortable operating duration and real peace of mind.
INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.
MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.
FEELS GOOD

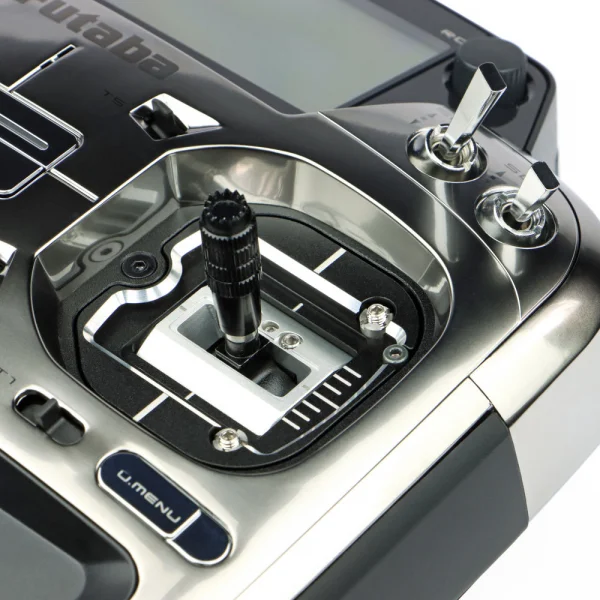

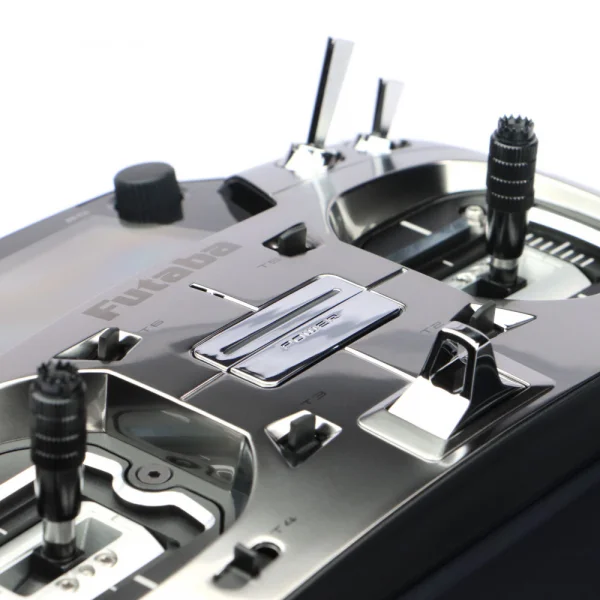

Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.
SWITCH REPLACEMENT

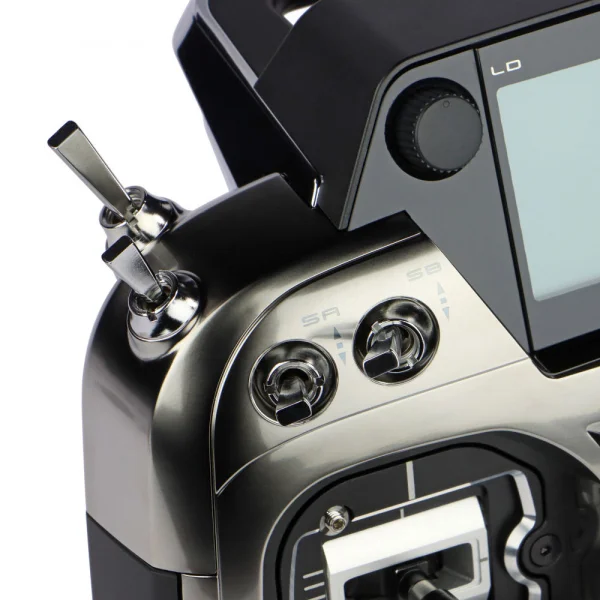

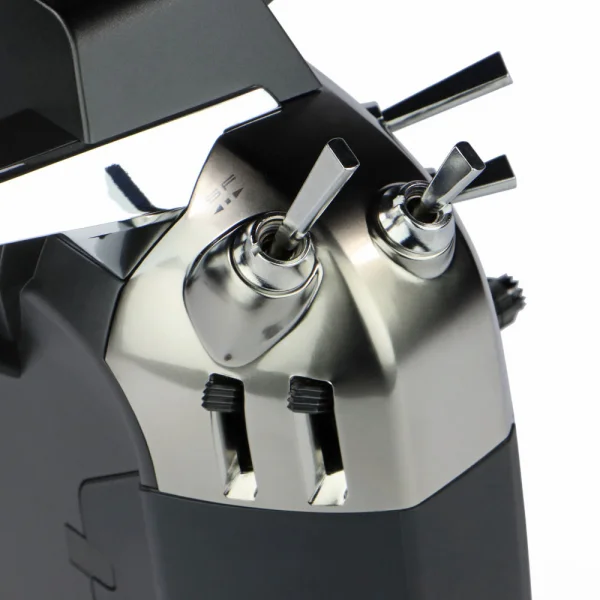

Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.
Telemetry functions
- Temperature
- RPM (magnetic & optic)
- Altitude
- GPS
- Voltage
- Receiver battery
- Current
- Data logging
Futaba T26SZ Pro 26-Channel Air Radio with R7214SB Rx, Multi Mode Key Features:
- FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols.
- 26 channels (24+2).
- Full colour 4.3 inch touch screen.
- 3.0 LCD sub display.
- Premium quality metallic finish.
- CNC aluminium gimbals.
- Premium aluminium soft-lined carry case.
- Model image display.
- Smooth non-contact stick potentiometer.
- Shoulder switch upgrade / replacement.
- Four rear sliders (paired).
- Vibration alert.
- Voice.
- Telemetry system.
- Four stick modes (1-4).
- MicroSD card software update.
- High capacity LiPo.
- Earphone jack.
- USB-C charging.
- Calendar clock.
- S.BUS I/F enabled.
- Wireless trainer system.
- 240 step sub trim.
- Sub trim balance.
- DLPH-2 settings.
- Receiver mode-setting port.
- Gyro setting for CGY755 / 760R / 770R / GYA553.
- 8 flight conditions.
- 30 pre-programmed mixers.
- 10 free programmable mixers.
- Retract and door sequencer.
- 13 fixed-wing types.
- 3 fixed-wing tail types.
- 2 fixed-wing rudder types.
- 8 helicopter swash types.
- Supports 14 telemetry sensor types.
What's in the Box:
- 1x T26SZ Pro 26-Channel Transmitter.
- 1x Premium Aluminium Carry Case.
- 1x R7214SB Receiver.
- 1x 7.4V 2000mAh Li-Ion Tx Battery Pack.
- 1x USB-C Charge Lead.
- 1x Neck Strap.
- 1x Tool Set.
- 1x Printed Instruction Manual (Short).
Futaba T26SZ Pro 26-Channel Air Radio with R7214SB Rx, Multi Mode Tech Specs:
- Weight with Battery: 920g / 32.45oz
- Product Height: 205mm / 8.07in
- Product Width: 64mm / 2.52in
- Product Length: 190mm / 7.48in
- Age Recommendation: 14+
- Channels: 26
- Radio Protocol: T-FHSS [Air], S-FHSS [Air], FASSTest26
- Model Memory: 30
- Colour: Array
- Battery: Yes
- Battery: 2000mAh Li-Ion
Key Info:
- Brand: Futaba
- Part No: FUT05003235-3
- Barcode: 4513886041082
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 9+ Channel
- Format: Stick
