Description

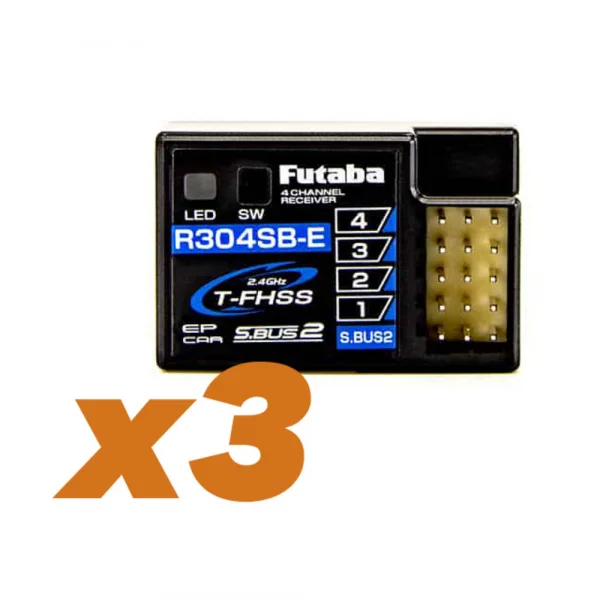

The Futaba T4PM Plus With 3 x R304SB-E Receivers (part number FUT05003210-3) is a 4-channel surface radio system for RC cars, buggies, trucks and tanks, supplied with three R304SB-E receivers.
The transmitter uses Futaba's T-FHSS SR protocol, which raises processing speed to improve response, and it also supports T-FHSS and S-FHSS. It is light and compact, with an ergonomic grip and auxiliary controls placed within easy reach. A backlit 2.7 inch LCD shows model data and settings, and the menu system is designed for quick adjustment.
Setup options include dual rates, end point adjustment, exponential on steering and throttle, throttle speed, traction control and ABS pulse braking. Mixing functions cover steering, brake, gyro, four-wheel steering, dual ESC, tank and programmable mixes, so the radio can be set up for crawlers, large-scale cars and tracked vehicles as well as standard on-road and off-road models. Brake mixing lets the front and rear wheels of larger cars be adjusted independently.
Telemetry is built in, so information such as receiver voltage and temperature can be read on the transmitter. S.Bus and S.Bus2 compatibility, S.Bus servo programming and gyro and ESC link functions allow more advanced configurations. There are 40 model memories with names of up to 10 characters, a Model Copy function, and a microSD card slot for software updates and saving model data. Three timers, including a lap timer that records 100 laps, are provided for racing. The transmitter works with LiPo or LiFe packs, and a Mini-Z receiver setting is included for use with the Kyosho RA-42 receiver, sold separately.
Four AA batteries are needed for the transmitter.
What's Included
- T4PM Plus transmitter
- 3 x R304SB-E receivers
- Dry battery holder
- Mini screwdriver
- Hex wrench set
- Instruction manual
Specifications
- Channels: 4
- Protocols: T-FHSS SR, T-FHSS, S-FHSS (surface)
- Display: backlit 2.7 inch LCD
- Model memories: 40
- Colour: Black
- Age recommendation: 14+
- Shipping weight: 1.00 kg
Secured by Stripe
Futaba T4PM Plus With 3 x R304SB-E Receivers Manuals & Guides
Specifications
Futaba's hugely popular T4PM Plus 4-channel surface radio system is designed for RC cars, buggies, trucks and tanks. Boasting Futaba’s T-FHSS SR protocol, it delivers super-fast response and stable signal performance, ensuring ultra-reliable control whether track racing, off-road racing or simply bashing in your back yard.
Lightweight and compact, the transmitter is built for comfort with an ergonomic grip and well-positioned auxiliary controls. Easy to read, the high-resolution backlit LCD provides clear access to model data and settings, while the simple menu system allows quick intuitive adjustment of settings and parameters. Key functions include everything from dual rates and end point adjustment to exponential, ABS braking and a suite of specialist mixes.. The T4PM Plus also supports telemetry, displaying real-time information such as receiver voltage and temperature directly on the transmitter. Compatibility with Futaba’s S.Bus and S.Bus2 systems expands its flexibility, allowing advanced customisation for more demanding applications.
With efficient power use, dependable range and solid build quality, the T4PM Plus is a practical and capable radio system that's favoured by all R/C drivers, from newcomers to race-winners. Here's a hint of the 4PM's capable feature set.
T-FHSS SR (Super Response)
Futaba's T-FHSS SR system offers increased processing speed to further improve response.
T-FHSS MINI-Z system
By adopting the MINI-Z system in the receiver setting menu, you can run the Kyosho Mini-Z Evo dedicated receiver RA-42 (sold separately).
Telemetry system
The T4PM Plus is equipped with T-FHSS bi-directional communication protocol.
Display switch
The Display Switch function allows model programming to take place without transmitting.
Software updates
Software can be updated by microSD card. Model data can also be saved to the microSD card.
40 vehicle model memory
Model names can use up to 10 letters, numbers and symbols. A model memory with different setups can be created by using the Model Copy function.
LiPo / LiFe battery compatibility
Enjoy extended operating time with suitable LiXX packs.
Brake mixing for large cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steering mixing
Smooth cornering is possible by the independent left and right steering servo setting.
4WS mixing
This function can be used with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T4PM Plus.
Tank mixing
This function is intended for track equipped vehicles.
S.BUS servo
Set the parameters of Futaba S.Bus servos using PC Link software.
Throttle speed
Avoids tyre spin on slippery surfaces. By setting the throttle speed function, acceleration can be performed smoothly and easily. It also suppresses battery consumption.
Function select switch
This assigns functions to two switches. The step amount and operating direction can also be adjusted.
Trigger adjustment
The position of the throttle trigger can be moved forward and back.
Racing timer
The lap timer can record 100 lap times and a total time. The timer can also be started automatically by trigger operation. An up timer is also provided.
Futaba T4PM Plus 4-Channel Surface Radio with 3x R304SB-E Rx Key Features:
- 4 channels.
- T-FHSS SR, T-FHSS, S-FHSS protocols.
- Backlit 2.7 inch LCD.
- 40 model memories.
- Telemetry enabled.
- Steering mix.
- Brake mix.
- Gyro mix.
- 4 wheel steer mix.
- Dual ESC mix.
- CPS mix.
- Tank mix.
- Program mixing.
- Exponential (steering & throttle).
- Speed (steering & throttle).
- Traction control.
- ABS (pulse brake).
- Engine cut.
- 3 timers (up / down / lap).
- Lap list.
- S.Bus servo.
- MC (ESC) link.
- Gyro link.
- Intuitive programming interface.
- Mini-Z compatible.
- MicroSD card port.
What's in the Box:
- 1x T4PM Plus transmitter.
- 3x R304SB-E receiver.
- 1x Dry battery holder.
- 1x Mini screwdriver.
- 1x Hex wrench set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 4x AA batteries for the transmitter.
Futaba T4PM Plus 4-Channel Surface Radio with 3x R304SB-E Rx Tech Specs:
- Shipping Weight: 1.00kg / 2.20lbs
- Age Recommendation: 14+
- Channels: 4
- Radio Protocol: T-FHSS SR [Surface], T-FHSS (Surface), S-FHSS [Surface]
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05003210-3
- Barcode: 4513886038365
- Frequency: 2.4Ghz
- Receivers Included: 3
- Channels: 4 Channel
- Format: Steerwheel
