Futaba T4PM Plus With 3 x R334SBS-E Receivers

Futaba's hugely popular T4PM Plus 4-channel surface radio system is designed for RC cars, buggies, trucks and tanks. Boasting Futaba’s T-FHSS SR protocol, it delivers super-fast response and stable signal performance, ensuring ultra-reliable control whether track racing, off-road racing or simply bashing in your back yard.

Lightweight and compact, the transmitter is built for comfort with an ergonomic grip and well-positioned auxiliary controls. Easy to read, the high-resolution backlit LCD provides clear access to model data and settings, while the simple menu system allows quick intuitive adjustment of settings and parameters. Key functions include everything from dual rates and end point adjustment to exponential, ABS braking and a suite of specialist mixes.. The T4PM Plus also supports telemetry, displaying real-time information such as receiver voltage and temperature directly on the transmitter. Compatibility with Futaba’s S.Bus and S.Bus2 systems expands its flexibility, allowing advanced customisation for more demanding applications.

With efficient power use, dependable range and solid build quality, the T4PM Plus is a practical and capable radio system that's favoured by all R/C drivers, from newcomers to race-winners. Here's a hint of the 4PM's capable feature set.

T-FHSS SR (Super Response)
Futaba's T-FHSS SR system offers increased processing speed to further improve response.
T-FHSS MINI-Z system
By adopting the MINI-Z system in the receiver setting menu, you can run the Kyosho Mini-Z Evo dedicated receiver RA-42 (sold separately).
Telemetry system
The T4PM Plus is equipped with T-FHSS bi-directional communication protocol.
Display switch
The Display Switch function allows model programming to take place without transmitting.
Software updates
Software can be updated by microSD card. Model data can also be saved to the microSD card.
40 vehicle model memory
Model names can use up to 10 letters, numbers and symbols. A model memory with different setups can be created by using the Model Copy function.
LiPo / LiFe battery compatibility
Enjoy extended operating time with suitable LiXX packs.
Brake mixing for large cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steering mixing
Smooth cornering is possible by the independent left and right steering servo setting.
4WS mixing
This function can be used with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T4PM Plus.
Tank mixing
This function is intended for track equipped vehicles.
S.BUS servo
Set the parameters of Futaba S.Bus servos using PC Link software.
Throttle speed
Avoids tyre spin on slippery surfaces. By setting the throttle speed function, acceleration can be performed smoothly and easily. It also suppresses battery consumption.
Function select switch
This assigns functions to two switches. The step amount and operating direction can also be adjusted.
Trigger adjustment
The position of the throttle trigger can be moved forward and back.
Racing timer
The lap timer can record 100 lap times and a total time. The timer can also be started automatically by trigger operation. An up timer is also provided.

Futaba T4PM Plus 4-Channel Surface Radio with 3x R334SBS-E Rx Key Features:

• 4 channels.
• T-FHSS SR, T-FHSS, S-FHSS protocols.
• Backlit 2.7 inch LCD.
• 40 model memories.
• Telemetry enabled.
• Steering mix.
• Brake mix.
• Gyro mix.
• 4 wheel steer mix.
• Dual ESC mix.
• CPS mix.
• Tank mix.
• Program mixing.
• Exponential (steering & throttle).
• Speed (steering & throttle).
• Traction control.
• ABS (pulse brake).
• Engine cut.
• 3 timers (up / down / lap).
• Lap list.
• S.Bus servo.
• MC (ESC) link.
• Gyro link.
• Intuitive programming interface.
• Mini-Z compatible.
• MicroSD card port.

What's in the Box:

• 1x T4PM Plus transmitter.

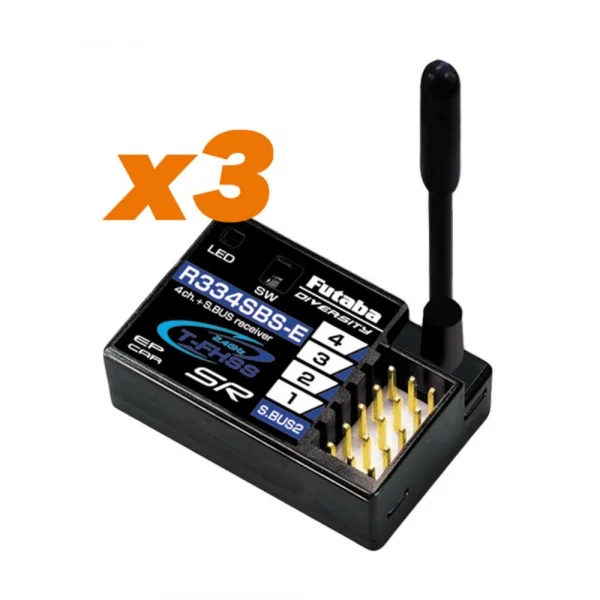

• 3x R334SBS-E receiver.
• 1x Dry battery holder.
• 1x Mini screwdriver.
• 1x Hex wrench set.
• 1x Comprehensive instruction manual.

Needed to Complete:

• 4x AA batteries for the transmitter.

Manuals & Parts Explosions:

Futaba T4PM Plus 4-Channel Surface Radio with 3x R334SBS-E Rx Tech Specs:

• Shipping Weight: 0.99kg / 2.18lbs

• Age Recommendation: 14+
• Channels: 4
• Radio Protocol: T-FHSS SR [Surface], T-FHSS (Surface), S-FHSS [Surface]
• Colour: Black

• Brand: Futaba
• Part No: FUT05003212-3
• Barcode: 4513886038389
• Frequency: 2.4Ghz
• Receivers Included: 3
• Channels: 4 Channel
• Format: Steerwheel
