Description
The Futaba T6PV Transmitter with R404SBSE Receiver, part number FUT05003229-3, is a 6-channel surface radio set made up of a steer-wheel transmitter and an R404SBSE receiver for radio-controlled cars, crawlers, trucks and tanks.
The transmitter works with Futaba's F-4G fast-response mode, which also provides telemetry, as well as T-FHSS, S-FHSS and Mini-Z protocols. Selecting the Mini-Z setting in the receiver menu suggests compatibility with the Kyosho Mini-Z Evo RA-42 receiver, which is sold separately. Up to six channels can be used together through the S.BUS2 system.
Settings are managed on a 3.2 inch backlit, full colour TFT LCD that is transflective, so it can be read indoors and outdoors, and a multi-function jog key handles the programming. There are 40 model memories with names of up to 15 characters, and the Model Copy function lets you build alternative setups from an existing one. Mixing options cover steering, brake, gyro, four-wheel steering, dual ESC, tank and winch functions, alongside throttle speed, traction control, ABS, four timers and a lap list.
The handset can be set up to suit the driver. The wheel can be offset with an adapter, its angle can be changed, and the throttle trigger can be moved forwards or backwards. Trims and dials can be locked to prevent accidental changes. Software updates, model data and telemetry logs are handled through the microSD card port, and the transmitter accepts LiPo and LiFe packs.
What's Included
- T6PV steer-wheel transmitter

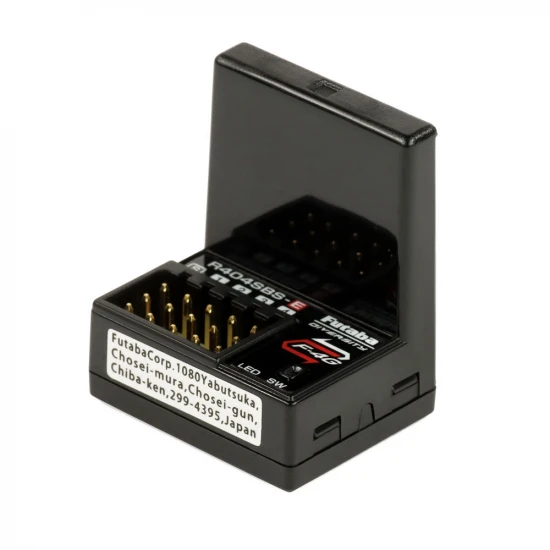

- R404SBSE receiver
- Dry AA battery holder
- Wheel offset adapter
- Wheel adapter (32°)
- Wheel angle spacer (5°)
- Brake lever
- Large diameter steering wheel
- Hex wrench
- Short manual
Specifications
- Channels: 6
- Protocols: F-4G, T-FHSS (surface), S-FHSS (surface), Mini-Z
- Colour: Black
- Recommended age: 14+
- Shipping weight: 1.08 kg
Secured by Stripe
Futaba T6PV Transmitter with R404SBSE Receiver Manuals & Guides
Specifications
Offering a multitude of desirable T10PX elements, not least its S-FHSS, T-FHSS, Mini-Z and, crucially, Futaba's new F-4G ultra fast response transmission mode, this is a truly capable radio, aimed at drivers who are actively looking to up their game.

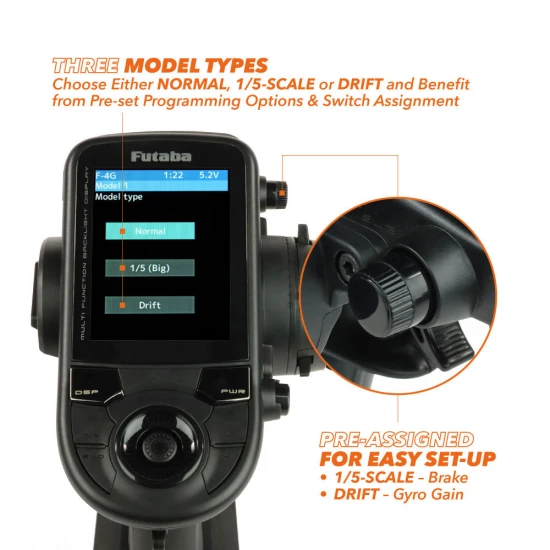

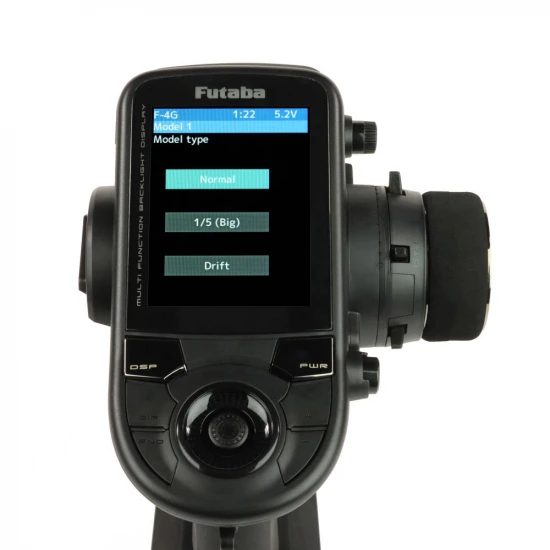

With sophistication at its core, the 6PV boasts a 3.2 inch backlit and daylight visible full colour TFT LCD and intuitive programming, facilitated by a smooth and positive multi-function jog key. No less than 40 model memories await, each with state of the art mix menus covering track cars, drift cars, crawlers, trucks and tanks. And that's just the tip of iceberg. Three pre-configured model types (with pre-set programming options and brake / gyro switch assignment), full wheel and trigger adjustment, a microSD card (software update) port, LiFe compatibility, telemetry functionality and much, much more make this adaptable, comfortable and highly specified radio an absolute steal at its current SRP. Here's just a hint of the 6PV's capable feature set.

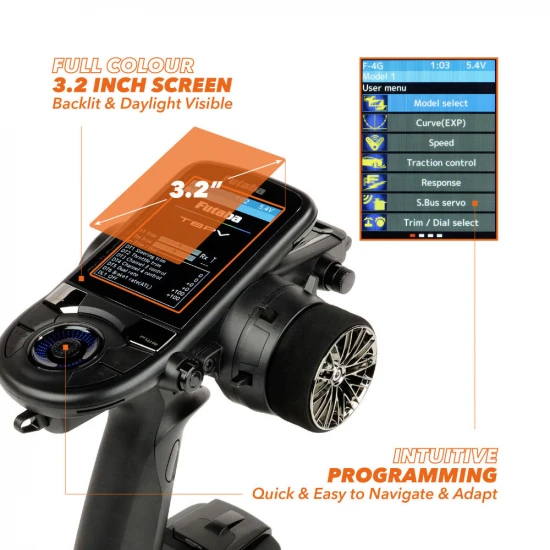

Full colour, Thin Film Transistor, LCD
The 6PV has a 3.2 inch, full-colour, backlit LCD. The screen is transflective, enabling both indoor and outdoor visibility.
F-4G system and telemetry
Equipped with the F-4G system that enables telemetry and super-fast response.

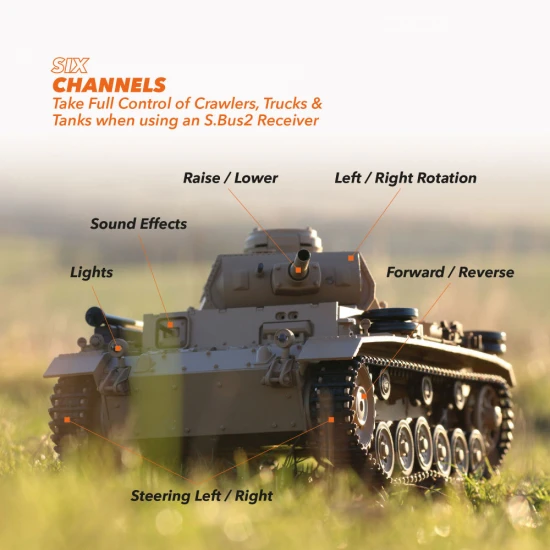

6 channels
Up to 6 channels can be operated together by using the S.BUS2 system.
T-FHSS MINI-Z system
By adopting the MINI-Z system in the receiver setting menu, you can run the Kyosho Mini-Z Evo dedicated receiver RA-42 (sold separately).
Software updates
Software can be updated by microSD card. Model data and telemetry log data can also be saved to the microSD card.

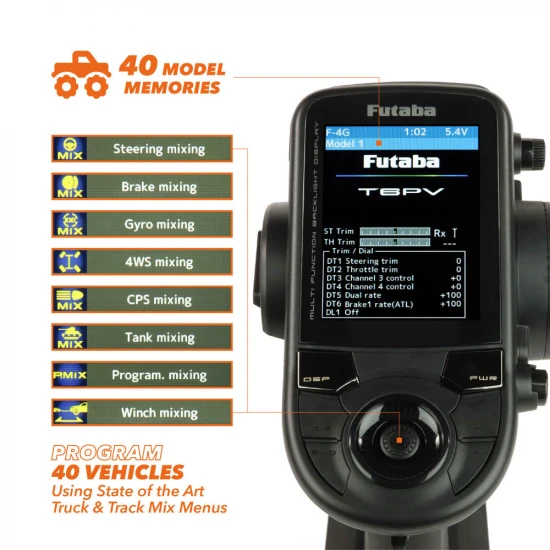

40 vehicle model memory
Model names can use up to 15 letters, numbers and symbols. A model memory with different setups can be created by using the Model Copy function.
LiPo / LiFe battery compatibility
Enjoy extended operating time with suitable LiXX packs.
Brake mixing for large cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steering mixing
Smooth cornering is possible by the independent left and right steering servo setting.
4WS mixing
This function can be used with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PX.
Tank mixing
This function is intended for track equipped vehicles.
S.BUS servo
Set the parameters of Futaba S.BUS servos using PC Link software.
Throttle speed
Avoids tyre spin on slippery surfaces. By setting the throttle speed function, acceleration can be performed smoothly and easily. It also suppresses battery consumption.
Dial select function
This function assigns functions to dials. The step amount and operating direction can also be adjusted.
Switch select function
This assigns functions to three switches. The operating direction can also be set.

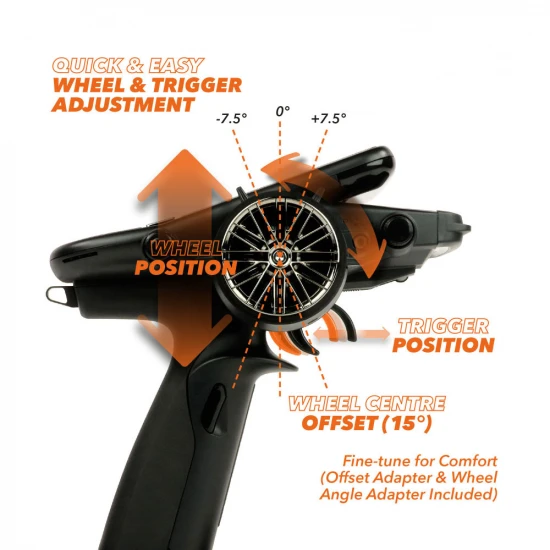

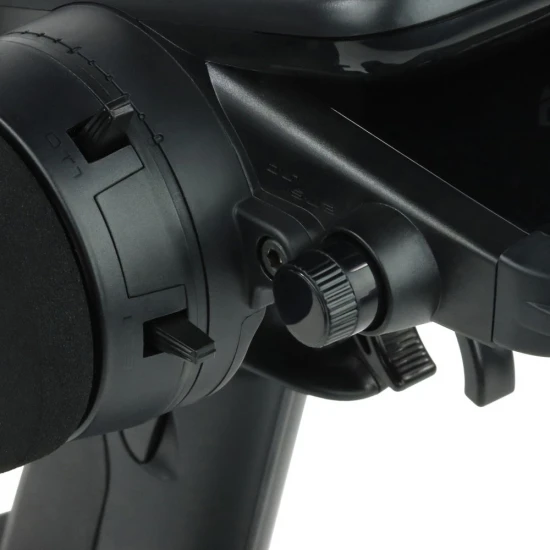

Wheel & trigger adjustment
The wheel position can be offset by using an adapter.
The wheel angle can be adjusted.
The position of the throttle trigger can be moved forward and back.

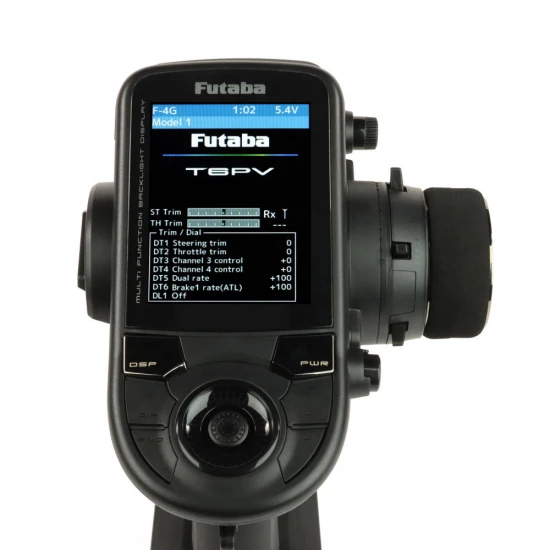

Trim/dial lock functions
Lock trims and dials to avoid accidental adjustment.
Futaba T6PV Transmitter with R404SBSE Receiver Key Features:
- 6 channels.
- F-4G, S-FHSS, T-FHSS & Mini-Z protocols.
- Full colour 3.2 inch TFT LCD.
- 40 model memories.
- Telemetry enabled.
- Steering mix.
- Brake mix.
- Gyro mix.
- 4WS mix.
- Dual ESC mixing.
- CPS mixing.
- Program mixing.
- Winch mix.
- Exponential (steering, throttle & brake).
- Speed (steering and throttle).
- Traction control.
- ABS.
- Throttle speed.
- Engine cut.
- Feeling.
- Drag racing (trans brake).
- Four timers.
- Lap list.
- S.Bus servo.
- MC (ESC) link.
- Gyro link.
- Warning alarms.
- Intuitive programming interface.
- MicroSD card port.
What's in the Box:
- 1x T6PV steer-wheel transmitter.
- 1x R404SBSE receiver.
- 1x Dry AA battery holder.
- 1x Wheel offset adapter.
- 1x Wheel adapter (32°).
- 1x Wheel angle spacer (5°).
- 1x Brake lever.
- 1x Large diameter steering wheel.
- 1x Hex wrench.
- 1x Short manual.
Futaba T6PV Transmitter with R404SBSE Receiver Tech Specs:
- Shipping Weight: 1.08kg / 2.39lbs
- Age Recommendation: 14+
- Channels: 6
- Radio Protocol: F-4G, T-FHSS [Surface], S-FHSS [Surface], Mini-Z
- Colour: Black
Key Info:
- Brand: Futaba
- Part No: FUT05003229-3
- Barcode: 4513886040276
- Receivers Included: 1
- Frequency: 2.4Ghz
- Channels: 6 Channel
- Format: Steerwheel
