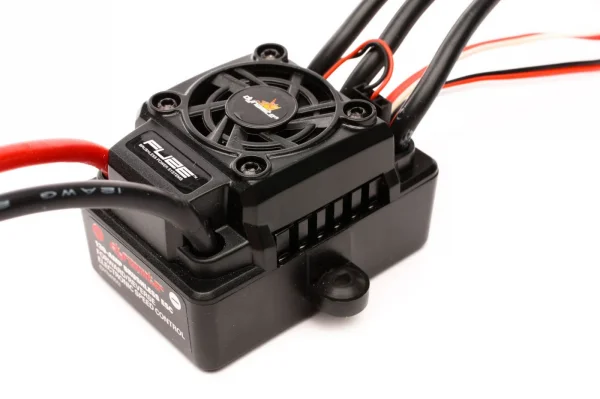

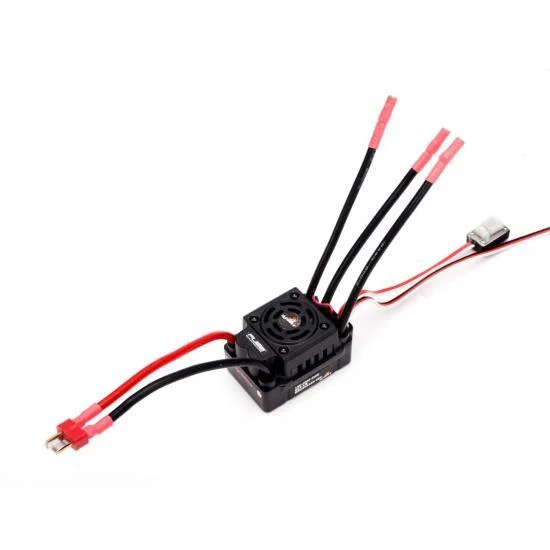

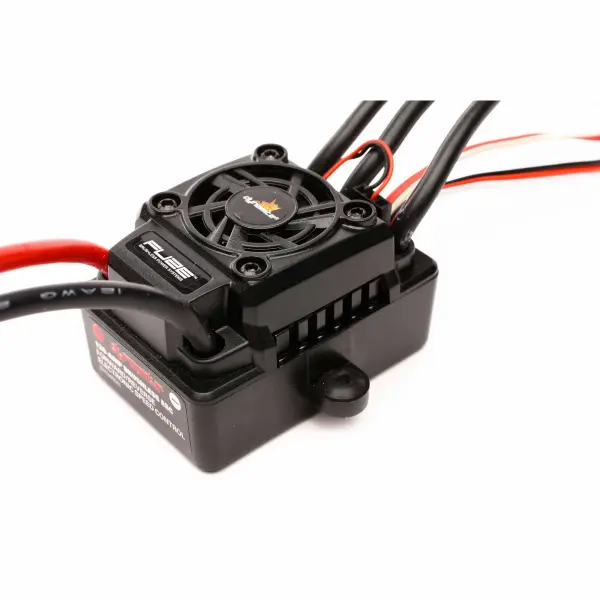

Dynamite Fuze 120A 4WD SCT Sensorless Brushless ESC DYN4955

The Dynamite Fuze 120A 4WD SCT Sensorless Brushless ESC (DYN4955) delivers robust, sensorless performance with straightforward setup for short course truck applications. It supports 2–4S LiPo or 6–9 cell NiMH packs and provides forward/reverse control, while the integrated 6 V BEC supplies reliable receiver power. An EC3 input connector and 10 AWG wiring support high current demands.

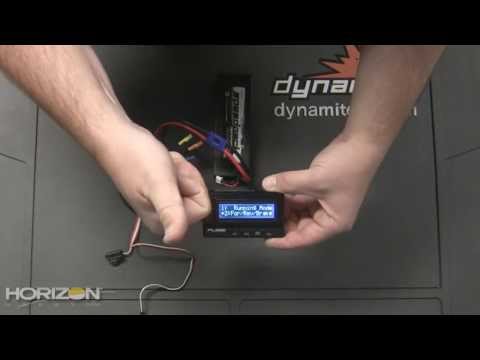

ESC Programming

• Easy to programme via your transmitter or compact program card — no PC required.

Key Specifications

• BEC Voltage: 6V
• Drive Type: Forward/Reverse
• Full On Resistance: 0.0004 ohm
• Input Connector Types: EC3
• Input Voltage: 6–9 cells NiMH, 2–4S LiPo - LiFe
• Motor Limit: 2S LiPo - up to 6000KV; 3S LiPo - up to 4000KV; 4S - up to 3000KV
• Programmable: Yes
• Speed Control Type: Brushless - Sensorless
• Wire Gauge: 10 AWG

Suggested Compatibility

Based on manufacturer information, suggested compatibility includes: DYN3739C, DYN4950C, ECX04000, ECX0800, LOS03000, LOS03001, LOS03005, LOS03006T1, LOS03006T2, LOS03007T1, LOS03007T2, LOS03008T1, LOS03008T2, LOS03009T1, LOS03009T2, LOS03010T1, LOS03010T2, LOS03011T1, LOS03011T2, LOS03012T1, LOS03012T2, LOS04003, LOS04014, LOSB0128.
