GMade Rsd Shock 90mm For 1:10 Crawler (2)

The GMade RSD Shock 90mm for 1:10 crawlers (part GM23504) delivers smooth, consistent damping and robust build quality for scale and trail trucks. Supplied as a pair, these shocks feature anodised aluminium components, CNC machined parts throughout and dual O-ring sealing to help prevent oil leaks. Tunability is enhanced with Delrin pistons in multiple hole counts and an adjustable spring preload collar.

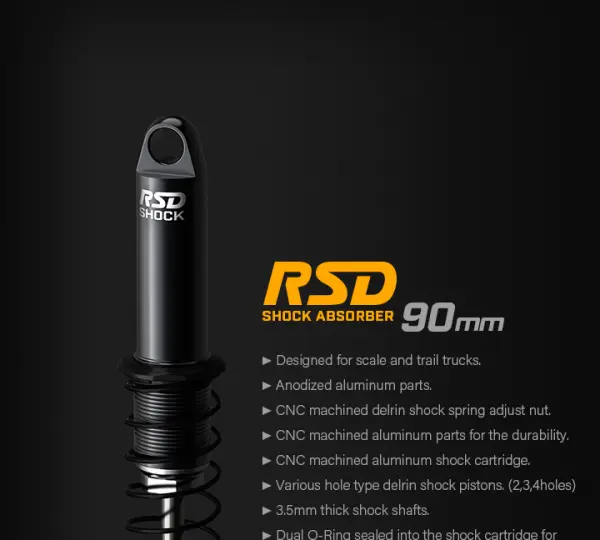

Features

• Designed for scale and trail trucks.
• Anodised aluminium parts.
• CNC machined Delrin shock spring adjust nut.
• CNC machined aluminium parts for durability.
• CNC machined aluminium shock cartridge.
• Various hole type Delrin shock pistons (2, 3, 4 holes).
• 3.5mm thick shock shafts.
• Dual O-ring sealed into the shock cartridge to help prevent oil leaks.
• RSD shock laser marked.

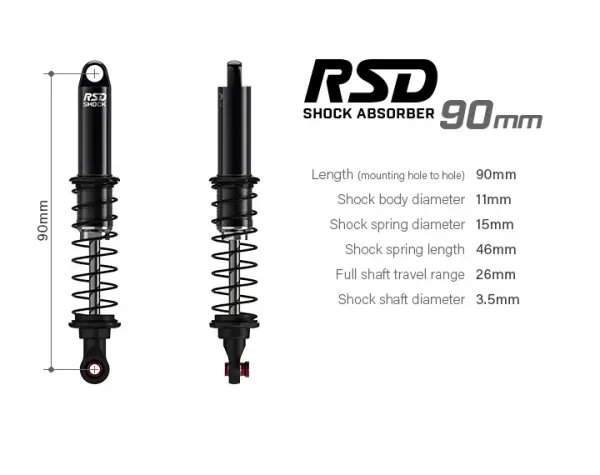

Specifications

• Length (mounting hole to hole): 90mm
• Shock body diameter: 11mm
• Shock spring diameter: 15mm
• Shock spring length: 46mm
• Full shaft travel range: 26mm
• Shock shaft diameter: 3.5mm

What's Included

• CNC machined & black anodised aluminium shock bodies
• CNC machined & silver anodised aluminium shock cartridges
• Lower shock ends with red anodised aluminium balls
• Delrin shock spring adjust nut x 2
• 3.5mm thick shock shaft x 2
• Shock spring x 2
• Bottle of shock oil x 1
• All necessary hardware to finish the shocks
• Assembly instructions x 1
