GMade Xd Diaphragm Shock 103mm (2)

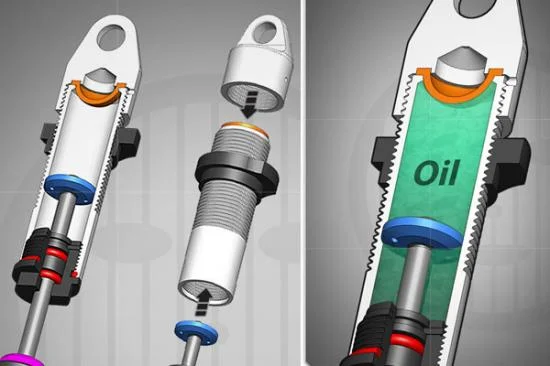

The GMade XD Diaphragm Shock 103mm (GM22007) is a high-quality pair of diaphragm dampers designed for capable crawler and truck setups, as well as 1/10 EP buggies and short course trucks. Precision CNC-machined aluminium bodies and caps with a titanium grey anodised finish combine with 3.5mm shafts, Delrin pistons and double O-ring sealing for smooth, consistent damping and durability. Fully threaded bodies allow rapid spring preload adjustment, and the pack includes shock oil and hardware to complete assembly.

Features

• CNC-machined aluminium shock bodies and caps
• Titanium grey anodised bodies and caps
• Lower shock ends include red anodised aluminium balls
• Fully threaded bodies for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy-load shock seal assembly
• Laser-engraved for authenticity

What’s Included

• Titanium grey anodised aluminium shock bodies x 2
• Titanium grey anodised aluminium shock caps x 2
• Diaphragms x 2
• Shock springs x 2
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specifications

• Length (mounting hole to hole): 103mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 68mm
• Full shaft travel range: 31mm (without rubber bump stop)
• Shaft diameter: 3.5mm

Suggested Compatibility

• 1/8 and 1/10 scale crawlers and trucks
• 1/10 scale EP buggies and short course trucks
• Examples include: GMade R1, Axial Wraith and XR-10, Traxxas E‑Maxx and 2WD Slash (rear)
