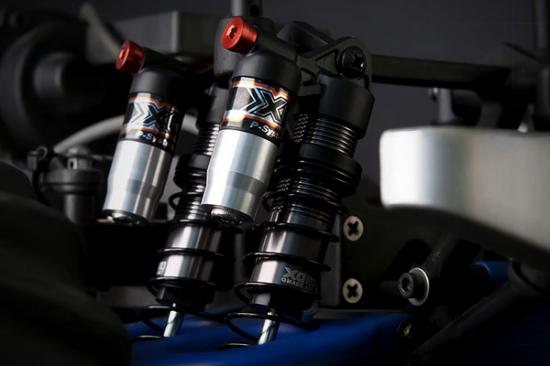

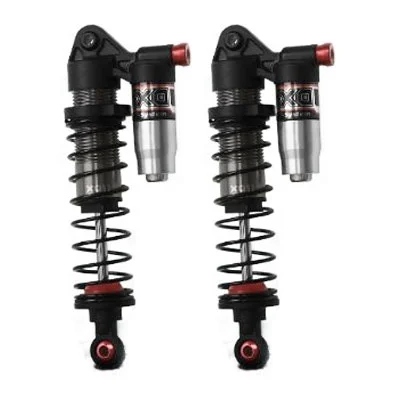

GMade Xd Piggyback Shock 93mm (2)

The GMade XD Piggyback Shock 93mm (2) – part number GM21107 – is a precision CNC-machined aluminium shock set designed for straightforward setup changes and consistent damping on both on-road and off-road surfaces. Featuring an adjustable piggyback valve, titanium grey anodised bodies, red anodised aeration screws and silver piggyback reservoirs, these shocks combine durability with a clean, purposeful look.

Delrin pistons, 3.5mm shock shafts and double O-ring shaft seals help deliver smooth action and long-lasting performance, while fully threaded bodies allow rapid preload adjustments. Each body is laser engraved for authenticity.

Features

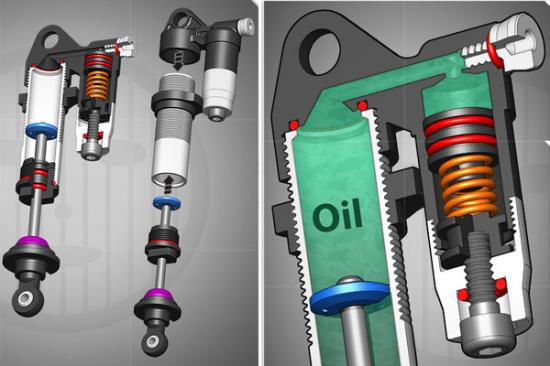

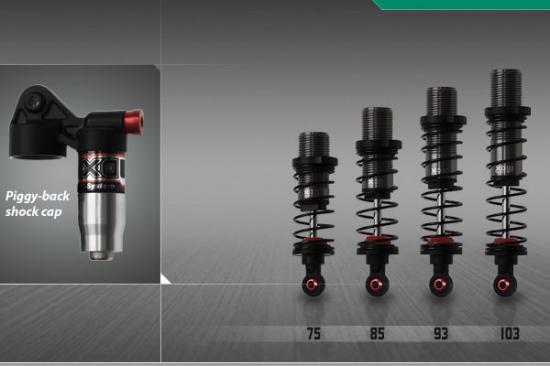

• Simple setup changes with piggyback adjustable valve; suitable driving feel in on-road and off-road cars
• CNC-machined aluminium shock bodies, aeration screws and piggyback bodies
• Titanium grey anodised shock bodies
• Red anodised aeration screws
• Silver anodised piggyback bodies
• Lower shock ends include red anodised aluminium balls
• Fully threaded bodies for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy-load shock seal assembly
• Laser engraved for authenticity

What’s Included

• Titanium grey anodised aluminium shock bodies x 2
• Red anodised aluminium aeration screws x 2
• Silver anodised aluminium piggyback bodies x 2
• Shock springs x 2
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specifications

• Length (mounting hole to hole): 93mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 58mm
• Full shaft travel range: 26mm (without rubber bump stop)
• Shaft diameter: 3.5mm

Suggested Compatibility

Suggested for 1/8 and 1/10 scale crawlers and trucks, 1/10 scale EP buggies and short course trucks. Example applications include GMade R1, Axial Wraith and XR-10, Traxxas E-Maxx and 2WD Slash (rear).
