HFP-30 Hitec Digital Programmer
HFP-30 Hitec Digital Programmer
HFP-30 Hitec Digital Programmer

Hitec HFP-30 Digital Servo Programmer Part 2544427

Brand: Hitec

Part No: 2544427

£70.19 RRP £77.99

Usually ships same day

UK Delivery
Get it by Monday 23rd Nov (Order within 16h 0m)
Store Collection (Cannock)
Tomorrow

Finance options available at checkout.

Popular with customers who buy products like the HFP-30 Hitec Digital Programmer

Description

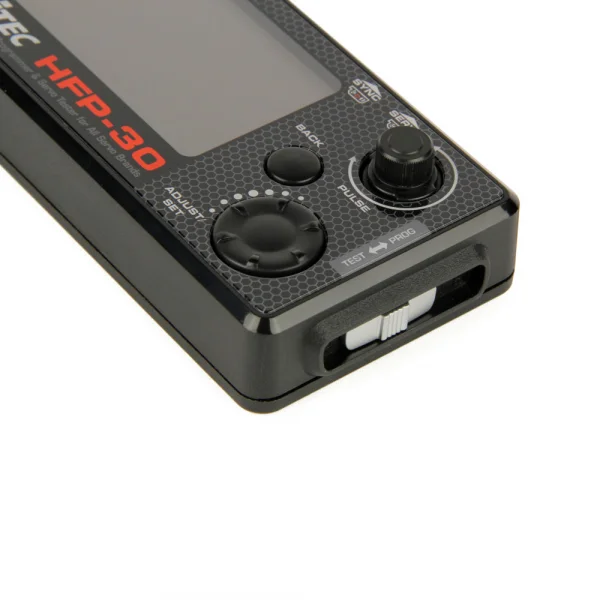

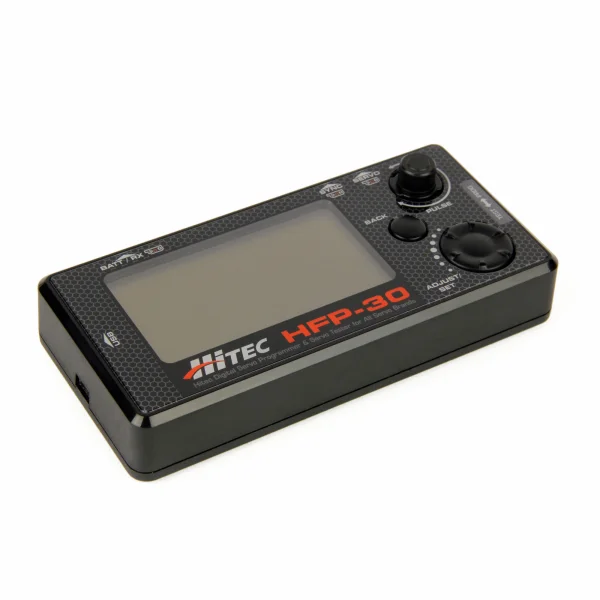

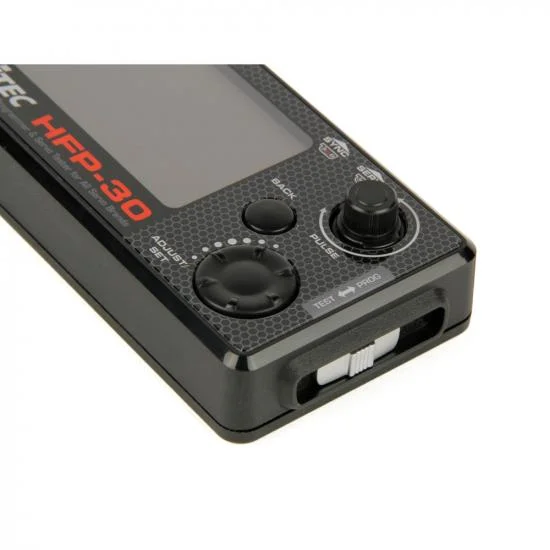

The Hitec HFP-30 Digital Programmer (part number 2544427) is a lightweight field programmer for testing and programming Hitec digital servos. It has a large, easy-to-read LCD screen and works across a supply range of 4.8 to 8.4 volts.

The programmer is intended for Hitec's HS-5XXX and HS-7XXX servos, the brushless HSB-9XXX range and the D-Series. It has a separate program mode for each family: D Series, 5/7 Series and B Series for brushless servos. This lets you work through only the settings that apply to the servo you have connected.

Across all three modes you can set end points and neutral, synchronise the servo, change the direction of rotation, adjust the deadband, slow the speed and configure the failsafe. Each mode also includes a factory reset to return the servo to its default settings. Data save and load is supported on all four servo series, so a configuration can be stored and reused.

Settings Unique to Each Series

  • D Series: ID read and soft start
  • 5/7 Series: resolution and overload protection (OLP)
  • B Series (brushless): soft start

The HFP-30 has a shipping weight of 0.17 kg, so it is easy to carry in a field box or tool bag. It is a programming and testing accessory and is not a servo or a radio system.

Specifications

Hitecs lightweight HFP-30 Field Programmer represents the latest in digital servo testing and programming units. Packed with advanced features and a large, easy-to-read LCD screen, it efficiently programs all Hitec digital servos, including the HS-5XXX, HS-7XXX, brushless HSB-9XXX and the latest D-Series. Operating on a wide voltage range of 4.8 to 8.4, the Hitec HFP-30 is a must-have accessory that youll quickly find indispensable.

HFP-30 Hitec Digital Programmer Tech Specs:

HFP-30 Hitec Digital Programmer Key Features:

  • Hitec's lightweight HFP-30 Field Programmer represents the latest in digital servo testing and programming units. Packed with advanced features and a large, easy-to-read LCD screen, it efficiently programs all Hitec digital servos, including the HS-5XXX, HS-7XXX, brushless HSB-9XXX and the latest D-Series. Operating on a wide voltage range of 4.8 to 8.4, the Hitec HFP-30 is a must-have accessory that youll quickly find indispensable.

    D Series Program Mode

    1. Set EPA/Neutral
    2. Servo Sync
    3. Set Rotation (CW_CCW)
    4. Set Deadband (DB_Width)
    5. Set Speed
    6. Set ID (ID_Read)
    7. Set Failsafe
    8. Set Soft Start
    9. Factory Reset (Factory Default Set)

    5/7 Series Program Mode (For 5xxx*/7xxx Servos)

    1. Set EPA/Neutral
    2. Servo Sync
    3. Set Rotation (CW_CCW)
    4. Set Deadband (DB_Width)
    5. Set Speed
    6. Set Failsafe
    7. Set Resolution
    8. Set Overload Protection (OLP)
    9. Factory Reset (Factory Default Set)

    B Series Program Mode (BLDC Servos)

    1. Set EPA/Neutral
    2. Servo Sync
    3. Set Rotation (CW_CCW)
    4. Set Deadband (DB_Width)
    5. Set Speed
    6. Set Failsafe
    7. Set Soft Start
    8. Factory Reset (Factory Default Set)

    Servo Series
    Model D-Series HSB-9XXX HS-7XXX HS-5XXX
    End Point Adjustments X X X X
    Direction X X X X
    Fail Safe X X X X
    Dead Band X X X X
    Speed (Slower) X X X X
    Soft Start Rate X X
    Overload Protection X X
    Resolution X
    Data Save / Load X X X X
    Program Reset X From File X X
  • Set EPA/Neutral
  • Servo Sync
  • Set Rotation (Clockwise / Counter-Clockwise)
  • Set Deadband (DB_Width)
  • Set Speed
  • Set Failsafe
  • Factory Reset (Factory Default Set)
  • Set ID (ID_Read) (unique to D Series)
  • Set Soft Start (unique to D Series and B Series)
  • Set Resolution (unique to 5/7 Series)
  • Set Overload Protection (OLP) (unique to 5/7 Series)

HFP-30 Hitec Digital Programmer Tech Specs:

  • Shipping Weight: 0.17kg / 0.37lbs


      Key Info:
      • Brand: Hitec
      • Part No: 2544427
      • Barcode: 669962444279
