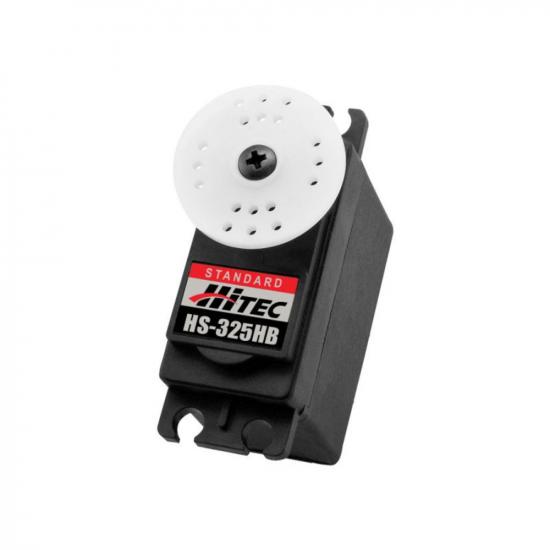

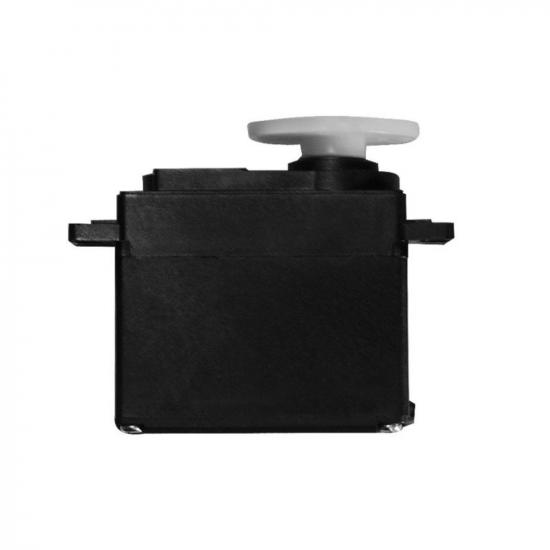

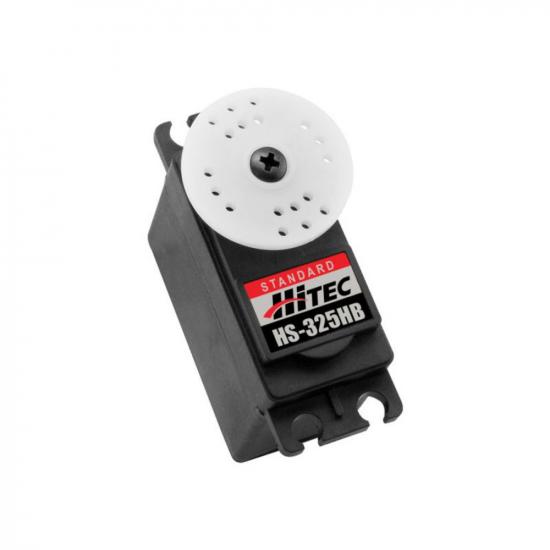

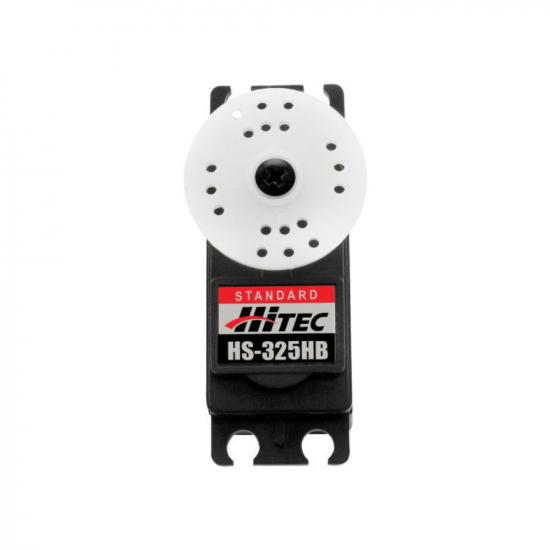

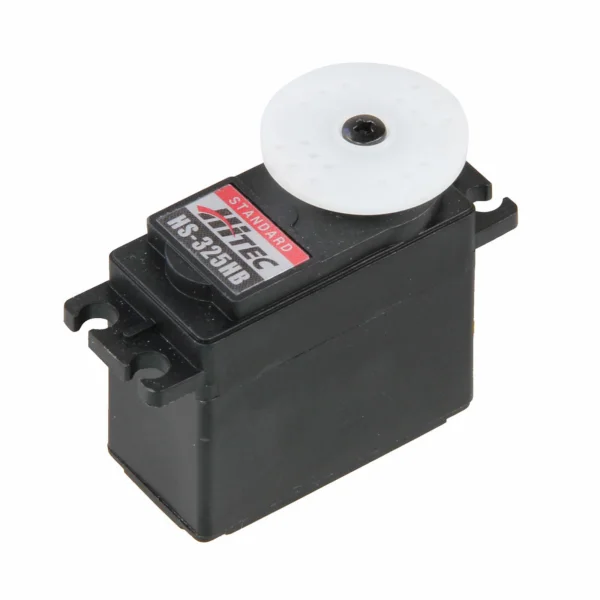

Hitec HS325HB Std Servo HD Gears with Top BB
Brand: Hitec
Part No: 2213230
In Stock: Usually ships same day
The Hitec HS-325HB Standard Servo (part 2213230) combines a 3‑pole motor, top ball bearing and durable Karbonite gears to provide dependable performance and positive centring for sport RC models.
Key Specifications
- Motor Type: 3 pole
- Bearing Type: Top ball bearing
- Speed (4.8V/6.0V): 0.19 / 0.15 sec @ 60°
- Torque (4.8V/6.0V): 3.0 / 3.7 kg-cm (42 / 51 oz-in)

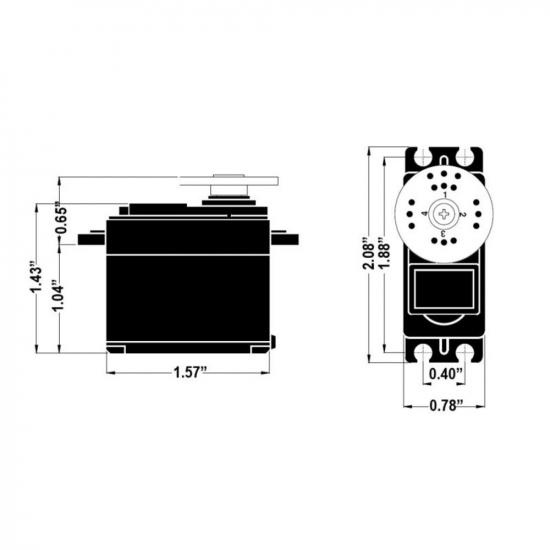

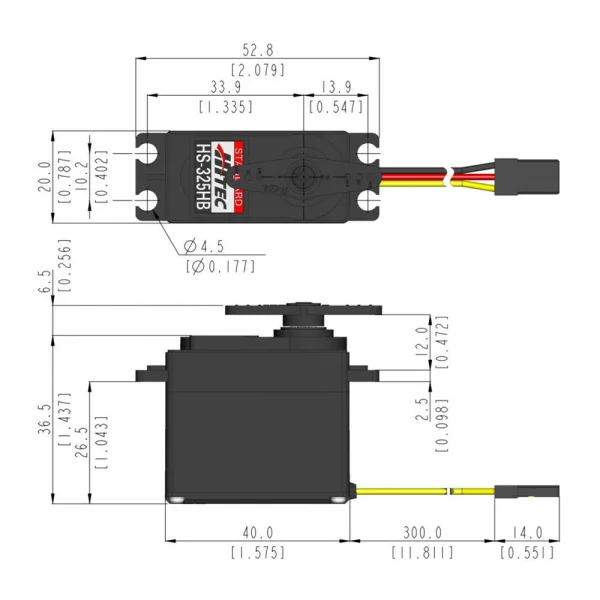

- Dimensions: 39.88 x 19.81 x 36.32 mm (1.57 x 0.78 x 1.43 in)
- Weight: 42.81 g (1.51 oz)
- Gear Material: Karbonite
Features
- Ball bearing output shaft for long life and positive centring
- Karbonite gear train designed to resist wear over extensive use
Suggested Applications
Helicopters and aircraft up to 72 or up to 12 lb when using just one servo per control surface.
Notes & Warnings
- High vibration petrol (gas) engines with large control surfaces and large throws can strain gears; metal-geared servos are recommended for such applications, even under 12 lb.
- Do not use thread locker on Karbonite geared servos as it may cause the output shaft to fail.
Secured by Stripe
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.19 / 0.15 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 3.0 / 3.7
- Size in Millimetres - 39.88 x 19.81 x 36.32
- Weight grams - 42.81
- Gears - Karbonite
The HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centering. Hitecs HS-325HB is offered with Karbonite gears, that after hundreds of thousands of cycles wont show any signs of wear. With 49 oz./in. of torque at 6 Volts, the HS-325HB is a great choice for Sport pilots all over the World!
*See Karbonite guidelines below
FeaturesApplications: Heli's and Aircraft up to 72 or up to 12lbs when using just one servo per control surface.
Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.19 / 0.15 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V): | 42 / 51 |
| Torque kg./cm. (4.8V/6.0V): | 3.0 / 3.7 |
| Size in Inches: | 1.57 x 0.78 x 1.43 |
| Size in Millimeters: | 39.88 x 19.81 x 36.32 |
| Weight ounces: | 1.51 |
| Weight grams: | 42.81 |
Key Info:
- Brand: Hitec
- Part No: 2213230
- Barcode: 669962330046
