High Speed/Torque Competition Servo 25T
Brand: Spektrum
Part No: SPMSS6495
Shadow Stock: Usually ships next day
The Spektrum SPMSS6495 High Speed/Torque Competition Servo (25T) is a high-voltage, brushless digital servo designed for premium power, precision and durability. Delivering an ultra-fast 0.062 sec/60° transit speed and 416 oz-in (30 kg-cm) of torque at 8.4V, it combines an all-aluminium, black and silver anodised case for efficient heat dissipation with a hardened metal gear train engineered for a tight, low-wear mesh. Advanced safeguards such as soft-start, over-current protection and failsafes add confidence, while the removable servo lead lets you choose the cable length to suit your build.
Features
- 25T output spline
- Ultra-fast 0.062 s transit speed at 8.4V
- Impressive torque: 30 kg-cm / 416 oz-in at 8.4V
- High-voltage capable (6.0–8.4V)
- All-aluminium, black and silver anodised case
- Brushless powertrain for precision and reliability
- Water-resistant construction
- Hardened steel gears with precision, low-wear mesh
- Dual bearings for smooth operation
- Removable standard-size servo lead for easy length swaps
- Soft-start reduces strain on steering components
- Advanced failsafes and protections, including over-current
Key Specifications
- Servo type: Digital, standard size
- Operating voltage: 6.0–8.4V (HV)
- Speed: 0.062 sec/60° at 8.4V
- Torque: 416.4 oz-in (approx. 30 kg-cm) at 8.4V
- Spline count: 25-tooth
- Gear type: Metal (hardened steel)
- Bearings: Dual
- Dimensions (L × W × H): 40 × 20 × 38 mm
- Weight: 2.54 oz
- Water-resistant: Yes
Suggested Compatibility
- 1/8th scale off-road racers
- RC crawlers and scalers
- High-performance bashing applications requiring fast response and strong holding power

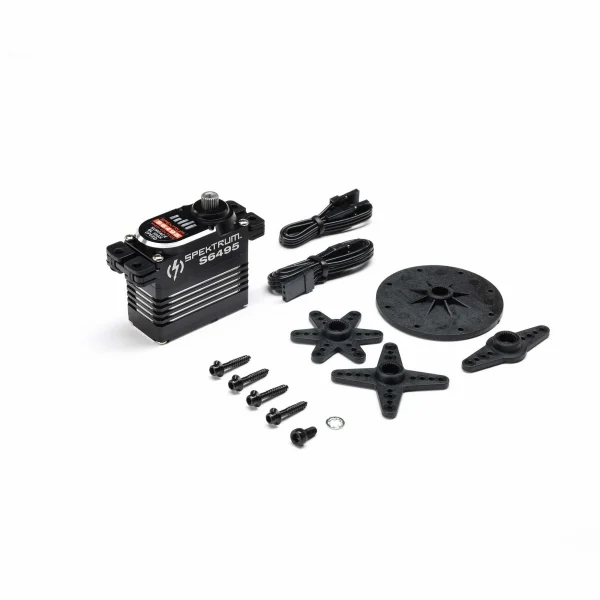

What’s In The Box
- High Speed/Torque Competition Servo 25T (SPMSS6495)
Secured by Stripe
Spektrum™ High-Voltage Brushless Servos deliver premium power, precision, and performance. Now with 25T spline, the S6495 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6495 also offers superior protection, such as soft start, over current protection, and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6495 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque, and holding power. The convenience of a removable servo lead lets you select different lengths for different vehicle applications.
Spektrum High Speed/Torque Competition Servo 25T Features- 25T Output Spline
- Ultra-fast transit speed (0.062sec at 8.4V)
- Impressive torque (30kg-cm / 416oz-in at 8.4V)
- High Voltage (HV) Capable (6.0V-8.4V)
- Sleek black and silver anodized metal case
- Brushless power and reliability
- Water Resistant
- Hardened steel gears
- Precision engineered gear train for tight and low wear mesh
- Removable standard size servo connector for easy lead swaps
- Soft-Start puts less strain on steering components during start up
- Advanced failsafe and protections
- Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
High Speed/Torque Competition Servo 25T Specfications:
- Application: 1/8th Scale Racers, RC Crawlers and Scalers
- Bearing: Dual
- Gear Type: Metal
- Maximum Servo Speed: 8.4V: .062 sec 60 degree
- Product Height: 1.49" (38 mm)
- Product Length: 1.57" (40 mm)
- Product Weight: 2.54 oz
- Product Width: 0.79" (20 mm)
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Servo Size Category: Standard
- Servo Type: Digital
- Spline Count: 25 - Tooth
- Torque: 8.4V: 416.4 oz-in
- Water-Resistant: Yes
- (1) High Speed/Torque Competition Servo 25T
Key Info:
- Brand: Spektrum
- Part No: SPMSS6495
- Barcode: 0660132988661
- Fitment: Option Part
