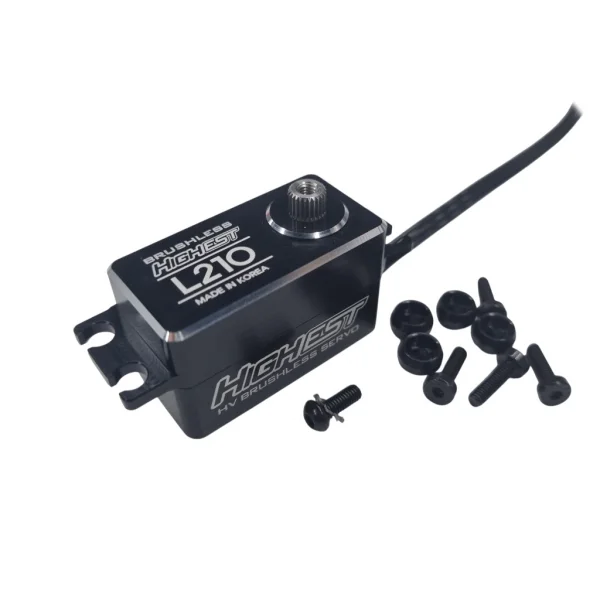

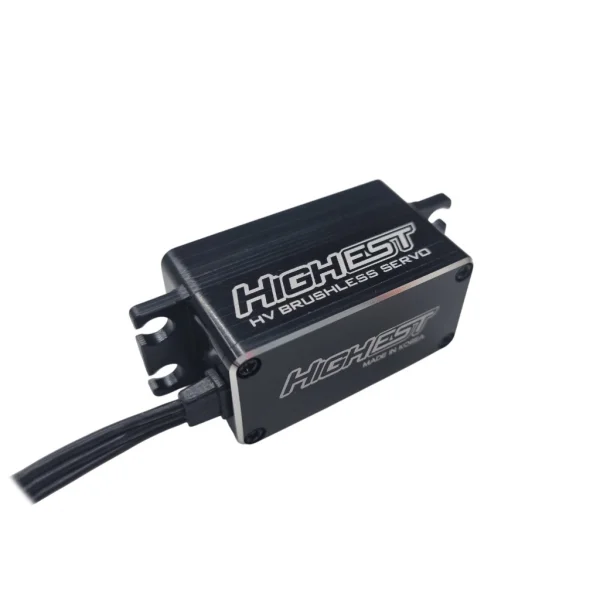

Highest L210 Ultra Low Profile Servo

The Highest L210 Ultra Low Profile Servo (SCH-HSL210) delivers rapid response and strong holding power in a compact 25.1 mm depth, ideal where space is at a premium. A high-efficiency brushless motor, full steel gear train and an aluminium case provide a responsive, durable and thermally stable solution for demanding RC car applications. Sanwa SSR mode compatibility and PCB coating further underline its race-focused design.

Features

• Ultra low profile 25.1 mm depth
• Full metal steel gears
• Full aluminium case
• PCB coating
• Dual ball bearings
• High-efficiency brushless motor (low current)
• Sanwa SSR mode compatible

Specifications

• Power supply: 4.8–8.4 V
• Torque: 12.6 kg-cm (6.0 V); 15.6 kg-cm (7.4 V); 17.8 kg-cm (8.4 V)
• Speed: 0.07 s/60° (6.0 V); 0.06 s/60° (7.4 V); 0.055 s/60° (8.4 V)
• Pulse/Frequency: 1520 µs / 333 Hz
• Size: 40 × 20.0 × 25.1 mm
• Weight: 53.7 g

Suggested Compatibility

• 1/10 touring
• 1/10 2WD off-road
