Hitec HS322hd Std Servo with HD Gears Long Life Pot
Brand: Hitec
Part No: 2213210
Shadow Stock: Usually ships next day
The Hitec HS-322HD is a dependable standard-size sport servo featuring a robust Karbonite gear train and a long-life potentiometer. Delivering balanced speed and torque for everyday RC applications, it pairs Hitec’s durable gearing with a 3-pole motor and efficient control electronics. Part number 2213210.
Key Specifications
- Motor type: 3-pole
- Bearing type: Nylon
- Speed (4.8V/6.0V): 0.19 / 0.15 sec @ 60°
- Torque (kg·cm, 4.8V/6.0V): 3.0 / 3.7

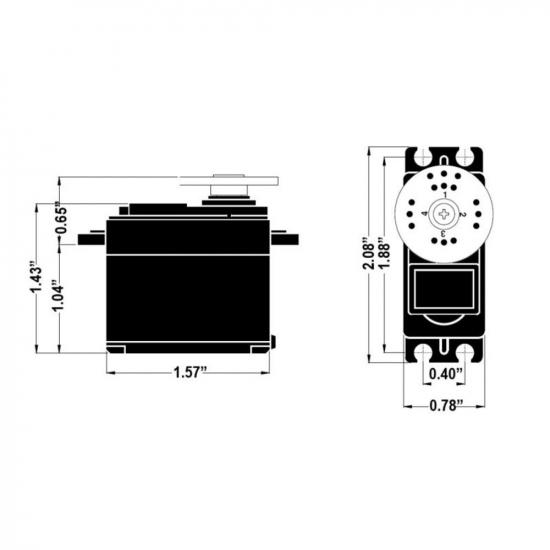

- Dimensions (mm): 39.88 x 19.81 x 36.32
- Weight: 42.81 g
- Gears: Karbonite (four times stronger than standard white nylon)
Suggested Compatibility & Applications
- Helicopters and aircraft up to 72 or up to 12 lb when using one servo per control surface.
Important Notes
- Do not use thread lockers on Karbonite geared servos; doing so can cause output shaft failure.
- High-vibration gas engines combined with large control surfaces and large throws (e.g. 3D models) may overstress gears; metal geared servos are recommended for those applications.
Secured by Stripe
- Motor Type - 3 Pole
- Bearing Type - Nylon
- Speed (4.8V/6.0V) - 0.19 / 0.15 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 3.0 / 3.7
- Size in Millimetres - 39.88 x 19.81 x 36.32
- Weight grams - 42.81
- Gears - Karbonite
The HS-322HD Standard Heavy Duty Servo utilizes Hitecs revolutionary Karbonite gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they dont show any signs of wear. Karbonite gears and our custom IC make the HS-322HD a great choice for an economical sport servo.
*See Karbonite guidelines below
FeaturesApplications: Heli's and Aircraft up to 72 or up to 12lbs when using just one servo per control surface.
Note: Be aware that high vibration gas (not glow) engines combined with large control surfaces and large throws (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications, even if under 12lbs.
Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
| Motor Type: | 3 Pole |
| Bearing Type: | Nylon |
| Speed (4.8V/6.0V): | 0.19 / 0.15 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V): | 42 / 51 |
| Torque kg./cm. (4.8V/6.0V): | 3.0 / 3.7 |
| Size in Inches: | 1.57 x 0.78 x 1.43 |
| Size in Millimeters: | 39.88 x 19.81 x 36.32 |
| Weight ounces: | 1.51 |
| Weight grams: | 42.81 |
Key Info:
- Brand: Hitec
- Part No: 2213210
- Barcode: 669962330022
