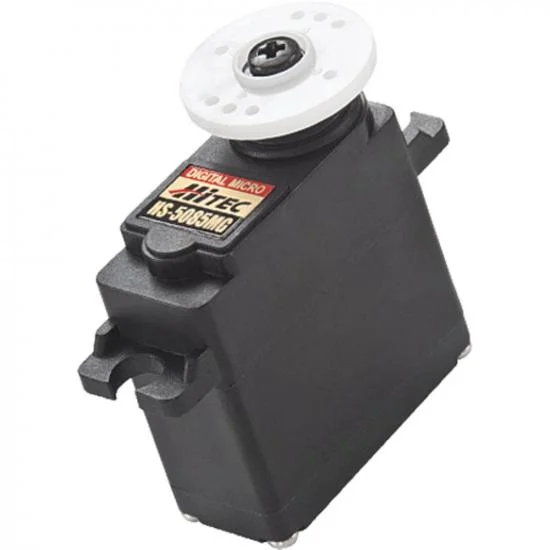

Hitec HS5085MG Digital Mighty Micro Servo
Brand: Hitec
Part No: 2216550
£36.11
RRP £39.25
In Stock: Usually ships same day
The Hitec HS5085MG Digital Mighty Micro Servo (part 2216550) delivers excellent centring, resolution and durability in a compact, lightweight unit. With a metal gear train and top ball bearing, it offers a strong balance of speed and torque for weight‑conscious RC projects. Also referred to as HS-5085MG, this micro servo is a popular choice across a range of smaller models.
Key Features
- Digital control for precise centring and resolution
- Metal gears with top ball bearing
- 3‑pole motor
- Operating voltage: 4.8–6.0V
Performance
- Speed (4.8V/6.0V): 0.17 / 0.13 sec @ 60°
- Torque (kg·cm, 4.8V/6.0V): 3.6 / 4.3
- Control system: +Pulse Width Control, 1500 μs neutral
- Dead band width: 2 μs
Dimensions & Weight

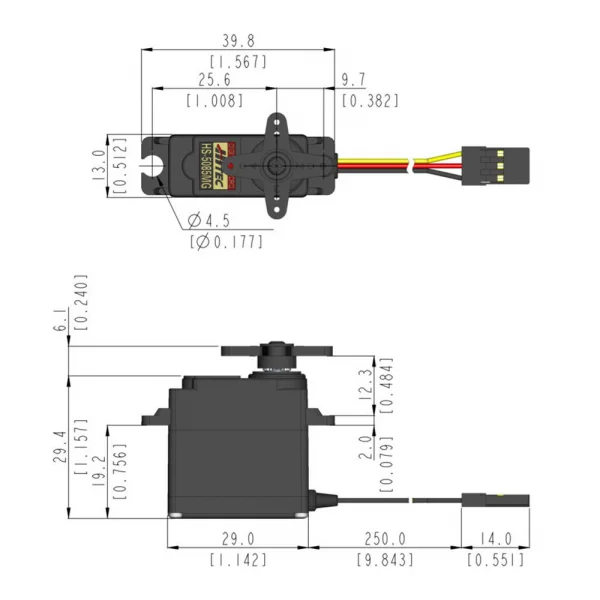

- Size (mm): 28.96 x 12.95 x 29.97
- Weight: 21.83 g
- Connector lead: 250 mm, 28 AWG
Electrical Details
- Idle current: 3 mA
- No‑load current (4.8V/6.0V): 230 mA / 290 mA
- Stall current (4.8V/6.0V): 1,700 mA / 2,150 mA
- Operating temperature: −20° to +60° C
Suggested Compatibility
- Smaller aeroplanes, helicopters, boats, cars and trucks
Secure Payments
Secured by Stripe
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.17 / 0.13 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 3.6 / 4.3
- Size in Millimetres - 28.96 x 12.95 x 29.97
- Weight grams - 21.83
- Gears - Metal
digital version of one of Hitecs most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Specifications
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.17 / 0.13 |
| Torque oz./in. (4.8V/6.0V): | 50 / 60 |
| Torque kg./cm. (4.8V/6.0V): | 3.6 / 4.3 |
| Size in Inches: | 1.14 x 0.51 x 1.18 |
| Size in Millimeters: | 28.96 x 12.95 x 29.97 |
| Weight ounces: | 0.77 |
| Weight grams: | 21.83 |
Advanced Servo Specifications
| Control System: | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range: | 4.8V to 6.0V |
| Operating Temperature Range: | -20í to +60í (-4íF to +140íF) |
| Idle Current: | 3mA |
| No Load Running Current (4.8V/6.0V): | 230mA/60í / 290mA/60í |
| Stall Current (4.8V/6.0V): | 1,700mA / 2,150mA |
| Dead Band Width: | 2usec |
| Potentiometer Type: | 2 Slider/Direct Drive |
| Connector Wire Length: | 250mm (9.84in) |
| Connector Wire Gauge: | 28AWG |
Key Info:
- Brand: Hitec
- Part No: 2216550
- Barcode: 669962350853
