Description

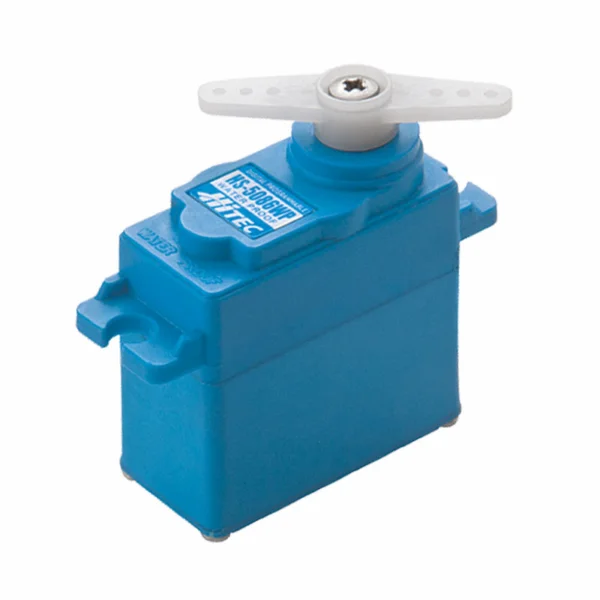

The Hitec HS5086WP Digital Micro Waterproof Servo (part 2221970) is the smallest in Hitec’s waterproof range. Built with heavy-duty metal gears and a ball bearing supported output shaft, it offers durable, reliable control in wet conditions. Matching the size of the HS-85MG and carrying an IP67 rating, it is designed for confident operation in challenging environments.
This programmable digital micro servo runs on 4.8–6.0V and features a flat 250 mm lead for flexible installation. Suggested compatibility includes RC vehicles, boats, aircraft and robots.
Key Features
- Heavy-duty metal gears
- Ball bearing supported output shaft
- IP67-rated waterproof design
- Programmable digital control system
- Operating voltage: 4.8–6.0V
- Micro size form factor
- Flat 250 mm connector lead
Advanced Specifications
- Control system: Programmable digital
- Idle current @ 6.0V: 3 mA
- No-load running current @ 6.0V: 280 mA
- Stall current @ 6.0V: 1800 mA
- Dead band width: 2
- Potentiometer type: 2 slider, 500K cycle rated
- Connector wire length: 250 mm (9.8 in)
- Connector wire type: Flat
- Wire strand count/gauge: 40 strand / 25 ga

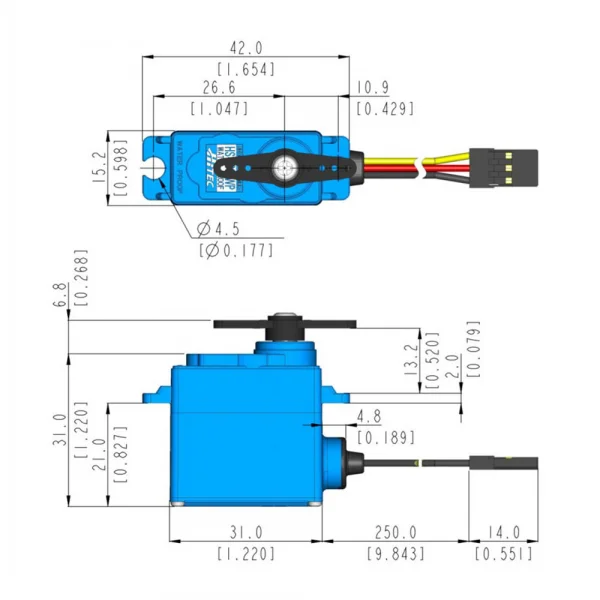

Dimensions & Weight
- Weight: 28.5 g (1.01 oz)
- Length: 31 mm (1.22 in)
- Height: 31 mm (1.22 in)
- Width: 15 mm (0.6 in)
- Servo size: Micro
Suggested Compatibility
- RC vehicles
- RC boats
- RC aircraft
- Robotics projects
Secured by Stripe
Specifications
The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings. Expect More. Expect Hitec!
Advanced Specifications| Control System: | Programmable Digital |
| Operating Voltage Range: | |
| Idle Current @ 6.0v: | 3 mA |
| No Load Running Current @ 6.0v: | 280 mA |
| Stall Current @ 6.0v: | 1800 mA |
| Dead Band Width: | 2 |
| Potentiometer Type: | 2 Slider 500K Cycle Rated |
| Connector Wire Length: | 9.8 in / 250 mm |
| Connector Wire Type: | Flat |
| Connector Wire Strand Count / Gauge: | 40 Strand / 25 ga. |
Hitec HS5086WP Digital Micro Waterproof Servo Tech Specs:
Hitec HS5086WP Digital Micro Waterproof Servo Key Features:
The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings. Expect More. Expect Hitec!
Advanced Specifications
Control System: Programmable Digital Operating Voltage Range: Idle Current @ 6.0v: 3 mA No Load Running Current @ 6.0v: 280 mA Stall Current @ 6.0v: 1800 mA Dead Band Width: 2 Potentiometer Type: 2 Slider 500K Cycle Rated Connector Wire Length: 9.8 in / 250 mm Connector Wire Type: Flat Connector Wire Strand Count / Gauge: 40 Strand / 25 ga. - INDUSTRY FIRST! HS-5086WP DIGITAL MICRO WATER PROOF 4.8v to 6.0v
Hitec HS5086WP Digital Micro Waterproof Servo Tech Specs:
- Weight: 28.5g / 1.01oz
- Shipping Weight: 0.07kg / 0.15lbs
- Product Height: 31mm / 1.22in
- Product Width: 15mm / .6in
- Product Length: 31mm / 1.22in
- Application: Array
- Servo Size: Micro
Key Info:
- Brand: Hitec
- Part No: 2221970
- Barcode: 669962350860
