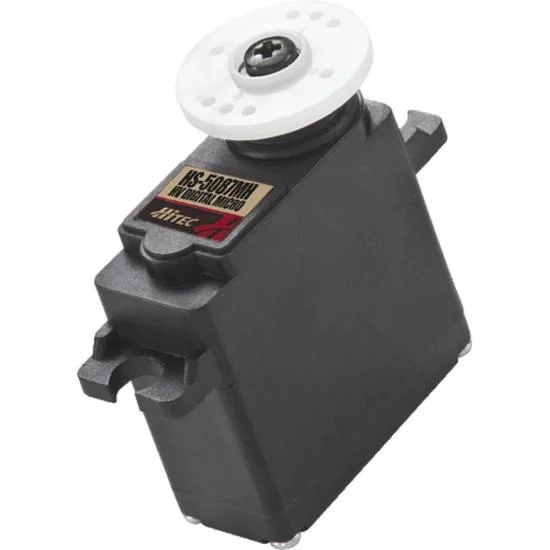

Hitec HS5087MH HV Digital Premium Micro Servo
Brand: Hitec
Part No: 2216555
Shadow Stock: Usually ships next day
The Hitec HS-5087MH HV Digital Premium Micro Servo (2216555) delivers high-voltage performance in a compact package. Built around a 3-pole ferrite motor, heavy-duty metal gears and a top ball bearing, it offers fast transit and dependable torque on both 6.0V and 7.4V systems, making it a strong choice for a wide range of RC applications.
Key Features
- Programmable digital control circuitry
- Heavy-duty metal gear train
- Top ball bearing support for smooth output
- 3-pole ferrite motor
- Includes vertical mounting hardware
Specifications
- Speed (6.0V/7.4V): 0.17 / 0.13 sec @ 60°
- Torque (6.0V/7.4V): 3.6 / 4.3 kg-cm (50 / 60 oz-in)

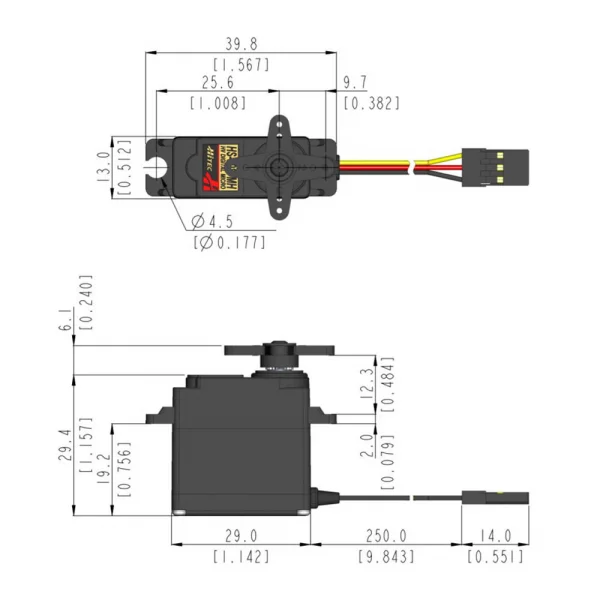

- Dimensions: 29 x 13 x 30 mm (1.14 x 0.51 x 1.18 in)
- Weight: 21.9 g (0.77 oz)
- Bearing: Top ball bearing
- Gears: Metal
- Motor: 3-pole ferrite
Suggested Compatibility
- 1/16 scale RC vehicles (steering)
- .15 to .40-size glow and electric aircraft
- 500-size helicopters
Secured by Stripe
The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.
Features- Top Ball Bearing
- Programmable Digital Circuit
- Includes Vertical Mounting Hardware
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (6.0V/7.4V) - 0.17 / 0.13 sec @ 60 deg.
- Torque kg./cm. (6.0V/7.4V) - 3.6 / 4.3
- Size in Millimetres - 28.96 x 12.95 x 29.97
- Weight grams - 21.90
- Gears - Metal
| Motor Type: | 3 Pole Ferrite |
| Bearing Type: | Top Ball Bearing Support |
| Speed (6.0V/7.4V): | 0.17 / 0.13 second |
| Torque oz./in. (6.0V/7.4V): | 50 / 60 oz-in |
| Torque kg./cm. (6.0V/7.4V): | 3.6 / 4.3 kg-cm |
| Size in Inches: | 1.14 x 0.51 x 1.18 in |
| Size in Millimeters: | 29 x 13 x 30 mm |
| Weight oz.: | 0.77 oz. |
| Weight g.: | 21.9 g. |
Key Info:
- Brand: Hitec
- Part No: 2216555
- Barcode: 669962350877
