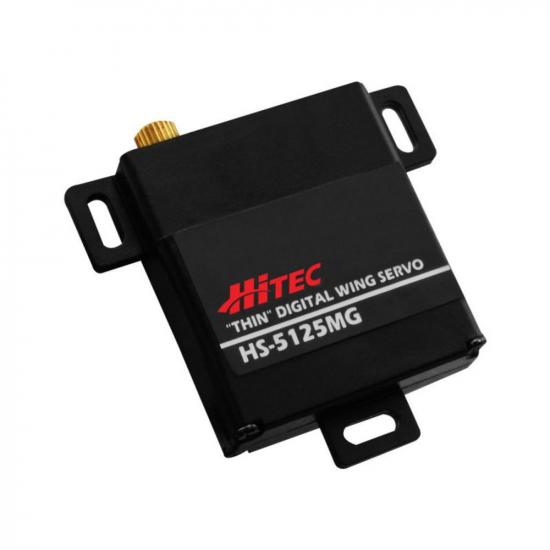

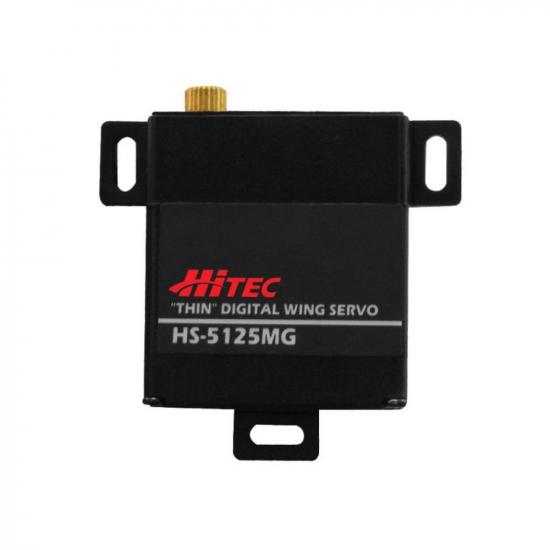

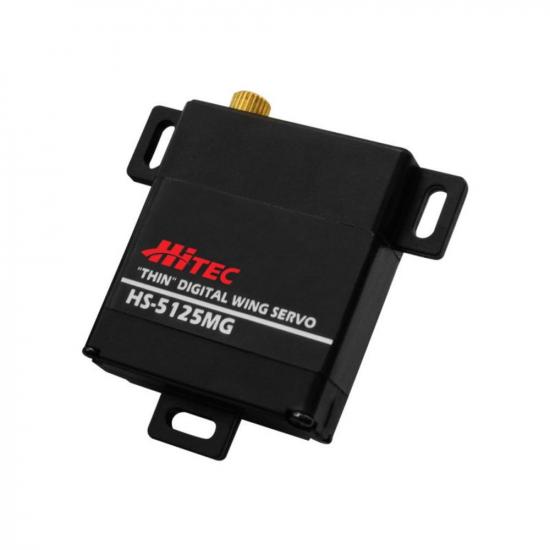

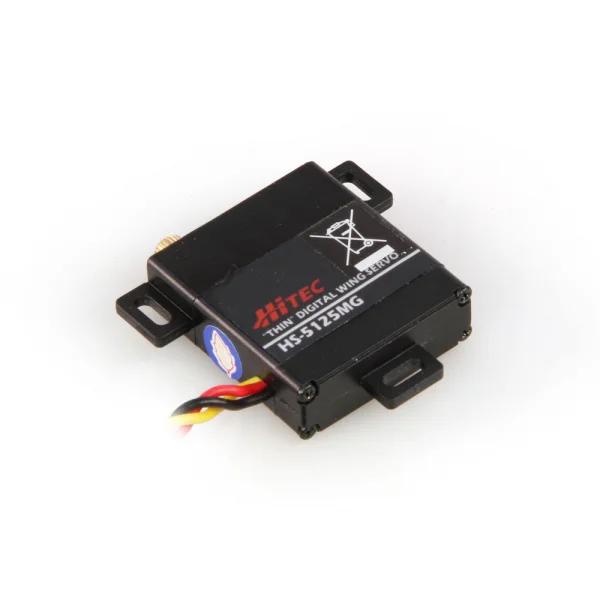

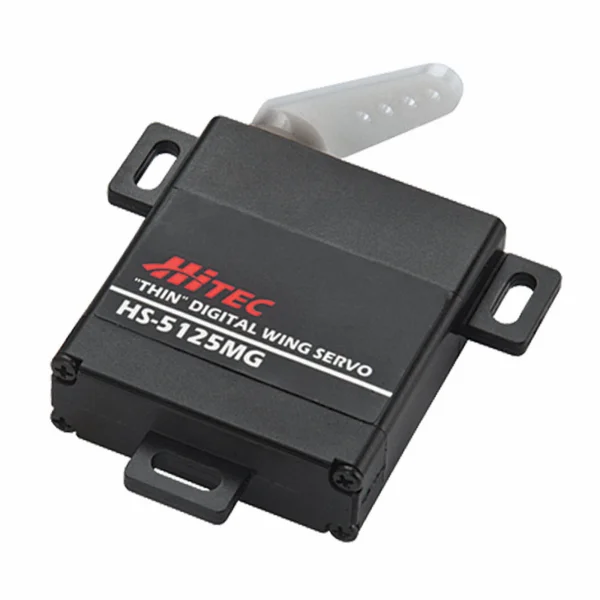

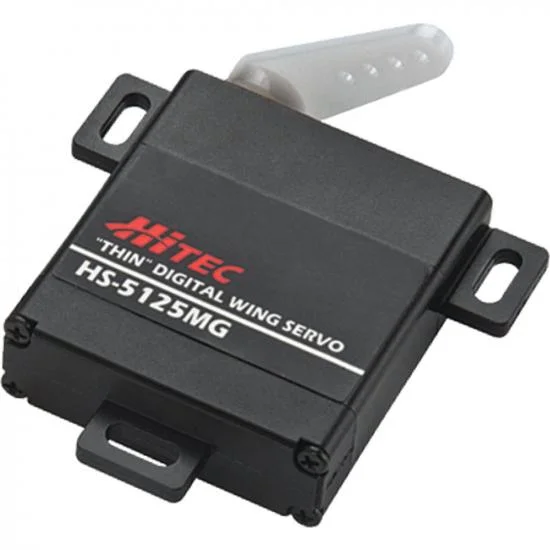

Hitec HS5125MG Digital Wing Servo – 10mm Slim
Brand: Hitec
Part No: 2216560
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
The Hitec HS5125MG Digital Wing Servo delivers precise control in a slim 10 mm profile, making it well suited to space‑conscious installations. Built around a programmable digital amplifier with MOSFET drive, it offers crisp response and dependable holding power. A robust gear train (four metal gears plus one metal resin gear), dual ball bearings and a metal‑splined horn enhance durability, while gold‑plated contacts and a long life potentiometer support reliable performance over time. Hitec part number 2216560.
Key Features
- Programmable digital amplifier with MOSFET drive
- Long life potentiometer
- Narrow dead bandwidth and high standing torque
- Gold‑plated contacts
- Dual ball bearings
- Four metal gears and one metal resin gear
- Metal splined horn
Weights & Dimensions
- Weight: 24 g
- Height: 10 mm
- Length: 30 mm
- Width: 34 mm
- Servo size: Slim Wing
Secured by Stripe
Specifications
Key Features
- Programmable digital amplifier with MOSFET drive
- Long Life Potentiometer
- Narrow dead bandwidth and high standing torque
- Gold-plated contacts
- Dual ball bearings
- Four metal gears and one metal resin gear
- Metal splined horn

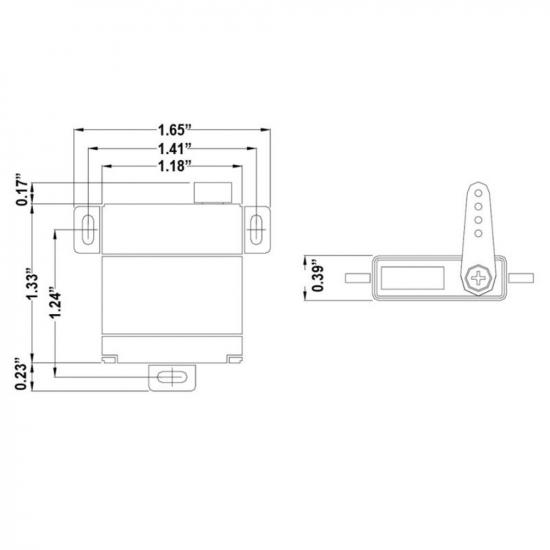

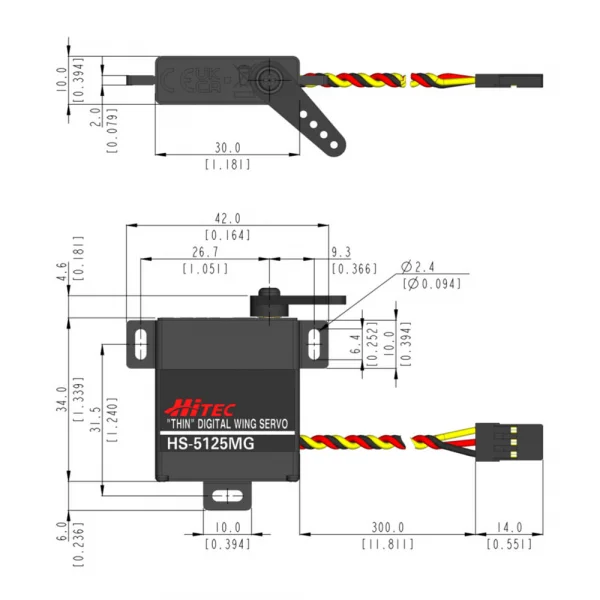

Weights & Dimensions
| Weight | 24g | 0.85oz |
| Shipping Weight | 0.07kg | 0.15lbs |
| Product Height | 10mm | 1.33in |
| Product Width | 34mm | .39in |
| Product Length | 30mm | 1.18in |
- Application: Array
- Servo Size: Slim Wing
Key Info:
- Brand: Hitec
- Part No: 2216560
- Barcode: 669962350136
