Description

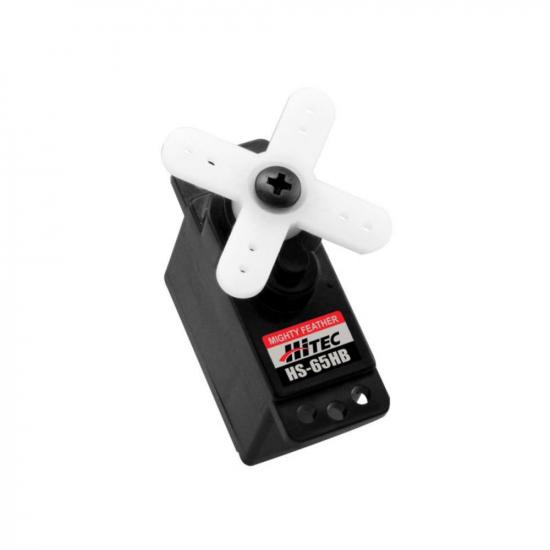

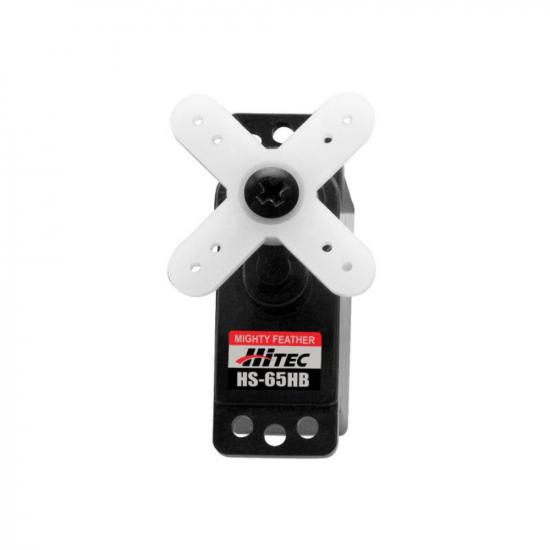

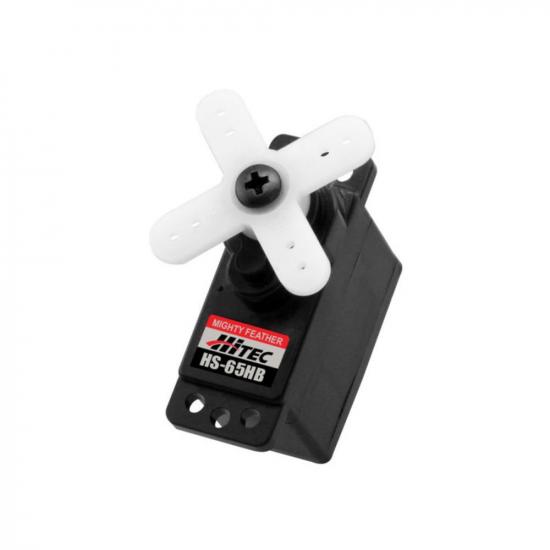

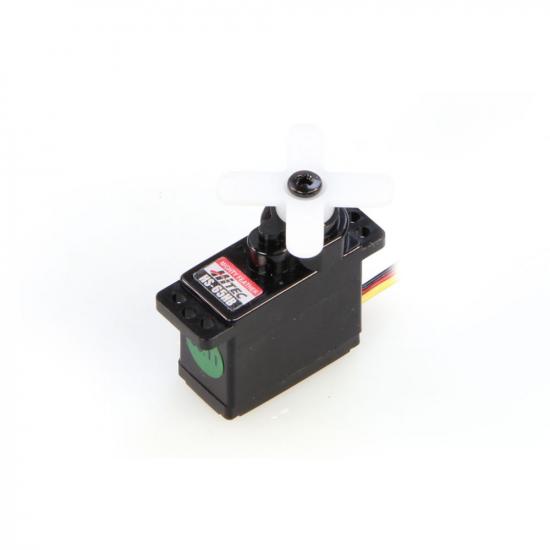

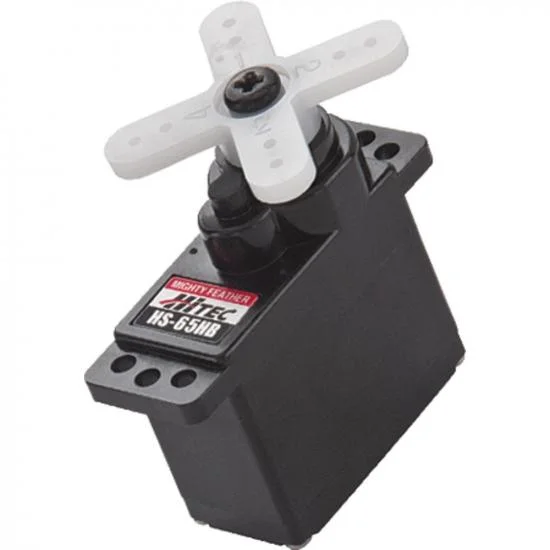

The Hitec HS-65HB Mighty Feather micro servo (part 2212090) pairs durable Karbonite gears with a top ball bearing for smooth, long-life operation and positive centring. Considered one of the most powerful servos in the micro class, it delivers up to 2.2 kg/cm (31 oz/in) of torque at 6.0V with quick response, while weighing only 11.06g.
The HS-65 series is offered with shock-resistant metal or zero-wear Karbonite gears; this HS-65HB variant uses Karbonite. A top-ball bearing supports the output shaft for longevity and consistent performance.
Specifications
- Motor Type: 3-pole
- Bearing Type: Top ball bearing
- Gears: Karbonite
- Speed (4.8V/6.0V): 0.14 / 0.11 sec @ 60°
- Torque (4.8V/6.0V): 1.8 / 2.2 kg/cm (25 / 31 oz/in)

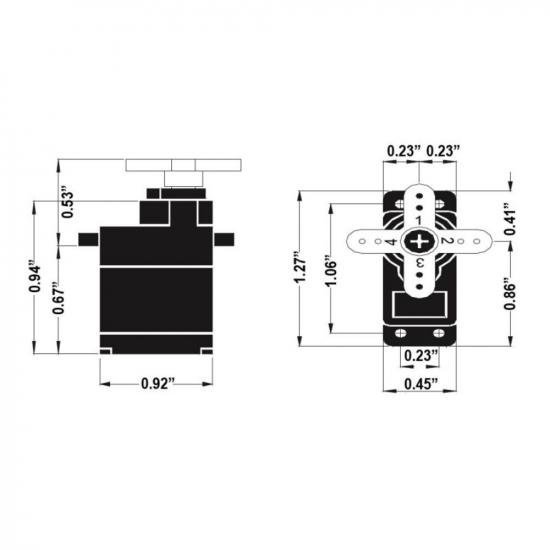

- Dimensions: 23.34 x 11.43 x 23.88 mm (0.92 x 0.45 x 0.94 in)
- Weight: 11.06 g (0.39 oz)
Suggested Compatibility
- Higher performance micro helicopters
- Electric park flyers
- 1/18 scale cars
Secured by Stripe
Specifications
- Motor Type - 3 Pole
- Bearing Type - Top Ball Bearing
- Speed (4.8V/6.0V) - 0.14 / 0.11 sec @ 60 deg.
- Torque kg./cm. (4.8V/6.0V) - 1.8 / 2.2
- Size in Millimetres - 23.34 x 11.43 x 23.88
- Weight grams - 11.06
- Gears - Karbonite
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of shock resistant Metal or zero wear Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.14 / 0.11 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V): | 25 / 31 |
| Torque kg./cm. (4.8V/6.0V): | 1.8 / 2.2 |
| Size in Inches: | 0.92 x 0.45 x 0.94 |
| Size in Millimeters: | 23.34 x 11.43 x 23.88 |
| Weight ounces: | 0.39 |
| Weight grams: | 11.06 |
Key Info:
- Brand: Hitec
- Part No: 2212090
- Barcode: 669962330176
