Description

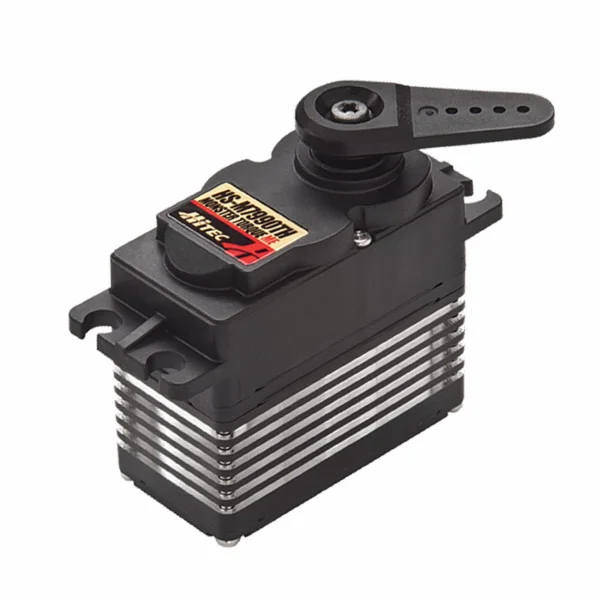

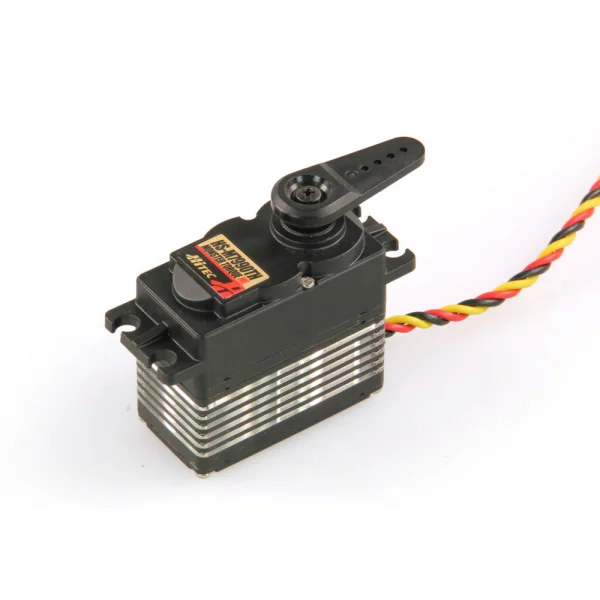

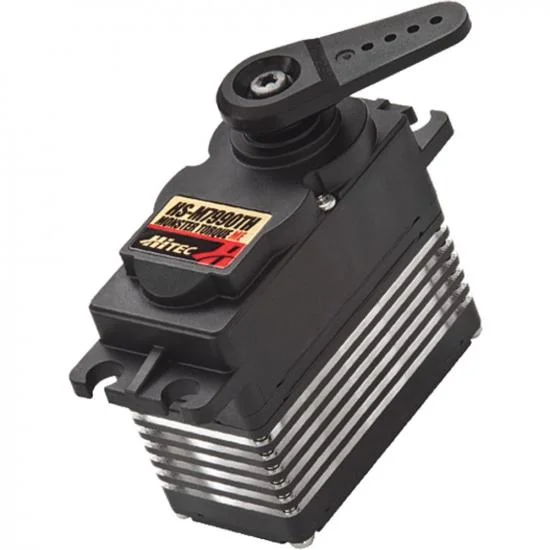

The Hitec HSM7990TH Monster Torque Servo (also referenced by Hitec as HS-M7990TH) delivers exceptional power and precision for demanding RC applications. Built around an ultra-precise high-resolution magnetic encoder instead of a traditional potentiometer, it provides consistent centring and long-term reliability. A 7.4V-optimised coreless motor, titanium gear train and integrated heat sink case combine to handle heavy loads with smooth control. Part number 2220560.
Key Features
- High-resolution magnetic digital encoder for superior precision
- G2.5 12-bit digital programmable control circuitry
- Titanium gear train (MK first gear) for maximum durability
- 7.4V-optimised coreless motor for strong, responsive performance
- Integrated heat sink case to aid thermal management
- Dual ball bearing supported output shaft
- Top case with two hardened steel gear pins and brass axial bushings
- (8) O-rings for water, dust and fuel protection
- Approximately 10% larger than the HS-7955TG for added robustness
Performance Specifications
- Torque (kg.cm): 36.0 at 6V / 44.0 at 7.4V
- Speed (sec/60deg): 0.21 at 6V / 0.17 at 7.4V
- Weight: 79g
- Dimensions: 43.8 x 22.4 x 40 mm
- Servo size: Standard
Programmable Parameters
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail safe on/off
- Fail safe point
- Overload protection (default off)
These parameters are programmable using Hitec’s HFP-20, HPP-20 or HPP-21 programmers.
Secured by Stripe
Specifications
Hitec's most technologically advanced servo, the 'Monster Torque' HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution 'G2.5' 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.
Specification:
| Torque (kg.cm): | 36.0 at 6V / 44.0 at 7.4V |
| Speed (sec/60deg): | 0.21 at 6V / 0.17 at 7.4V |
| Weight (g): | 79.0 |
| Dimensions (mm): | 43.8 x 22.4 x 40 |
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
Hitec HSM7990TH Monster Torque Servo - 44Kg/cm - 0.17 Sec Tech Specs:
Hitec HSM7990TH Monster Torque Servo - 44Kg/cm - 0.17 Sec Key Features:
- Hitec's most technologically advanced servo, the 'Monster Torque' HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution 'G2.5' 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.
Specification:
Torque (kg.cm): 36.0 at 6V / 44.0 at 7.4V Speed (sec/60deg): 0.21 at 6V / 0.17 at 7.4V Weight (g): 79.0 Dimensions (mm): 43.8 x 22.4 x 40 Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Overload Protection* (default is off)
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
- High Resolution Magnetic Digital Ecoder
- G2.5 12 bit Digital Programmable Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Integrated Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
- 10% larger than a HS-7955TG
Hitec HSM7990TH Monster Torque Servo - 44Kg/cm - 0.17 Sec Tech Specs:
- Weight: 79g / 2.79oz
- Shipping Weight: 0.17kg / 0.37lbs
- Product Height: 40mm / 1.57in
- Product Width: 22mm / .88in
- Product Length: 44mm / 1.72in
- Application: Array
- Servo Size: Standard
Key Info:
- Brand: Hitec
- Part No: 2220560
- Barcode: 669962379908
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
