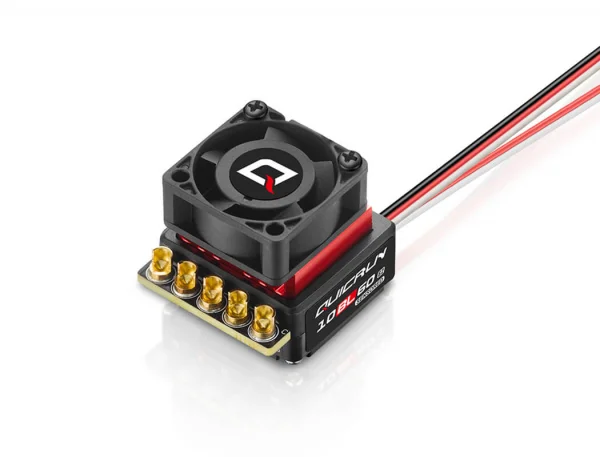

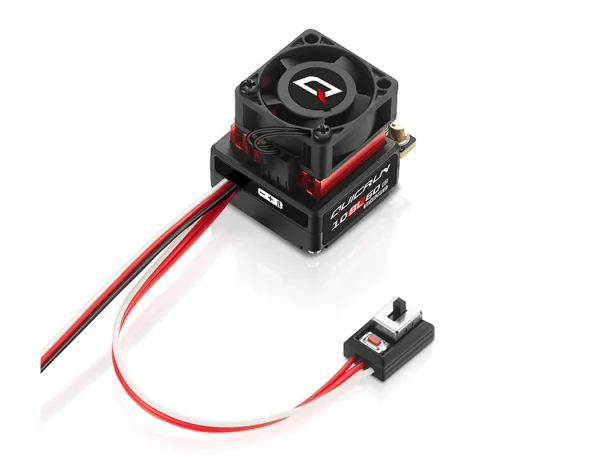

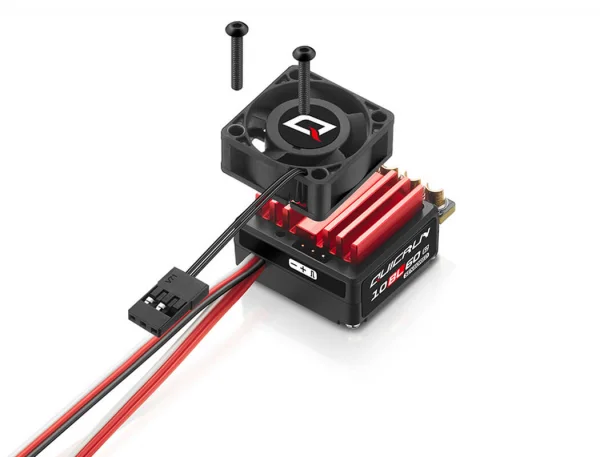

Hobbywing 10BL60 G2 Sensored Brushless ESC
Brand: Hobbywing
Part No: HW30108001
In Stock: Usually ships same day
The Hobbywing 10BL60 G2 Sensored Brushless ESC (HW30108001) from the QuicRun range delivers reliable performance for entry-level and intermediate RC car builders. With 60A continuous and 200A peak current handling on 2S LiPo, it provides smooth, responsive control backed by a powerful switch-mode BEC and comprehensive safety protections.
Upgraded from the previous generation, the G2 features a 6V/7.4V adjustable BEC rated at 4A continuous (7A peak) to drive high-torque and high-voltage servos. Support for Boost/Turbo timing up to 24 degrees helps unlock extra speed when required, while motor rotation adjustment adds installation flexibility. Note: this ESC is not waterproof.
Key Features
- 60A continuous, 200A peak current
- 2S LiPo input voltage
- Switch-mode BEC: 6V/7.4V @ 4A (7A peak)
- Boost/Turbo timing support up to 24°
- Motor rotation adjustment
- Protection: low voltage, over-temperature, throttle signal loss, overload
- Supports sensored and sensorless brushless motors
- 14AWG wires approx. 175mm; no input/output connectors fitted
- Not waterproof
Programming Options
- On-ESC SET button
- LED Program Box (supported)
- LCD G2 Program Box (supported)
- LCD Pro (supported)
- OTA programming: not supported
- Program port shared with fan port
- Firmware upgrade and data recording: not supported
Specifications
- Size: 35.0 × 31 × 30.8 mm
- Weight: 66.5 g
- Input wires: Black 14AWG 175mm ×1, Red 14AWG 175mm ×1
- Output wires: Blue 14AWG 175mm ×1, Yellow 14AWG 175mm ×1, Orange 14AWG 175mm ×1
Suggested Compatibility
- 1/10 touring, buggy and drift platforms; selected 1/12 and 1/14 vehicles
- Sensored or sensorless 2S brushless motors within the ESC’s limits (e.g. Hobbywing QuicRun 3650 SD G2)
Secured by Stripe
Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control.
Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.
Powerful built in BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
Supports Boost/Turbo timing technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
High reliability and durability
- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection
Continuous current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability
Support multipleprogramming methods
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
Support Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
Specifications (Motor)Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 60A/200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 6V/7.4V@4A
Wires & Connectors
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD Pro: Supported
OTA Programmer: Not Supported
Program Port: Shared with fan port
Date Recording: Not supported
Firmware
Firmware Upgrade: Not Supported
Size & Weight
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires&connectors)
Applications
Motors: Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2
Key Info:
- Brand: Hobbywing
- Part No: HW30108001
- Barcode: 6938994413268
- Motor Type: Brushless
- LiPo Compatible: Yes
