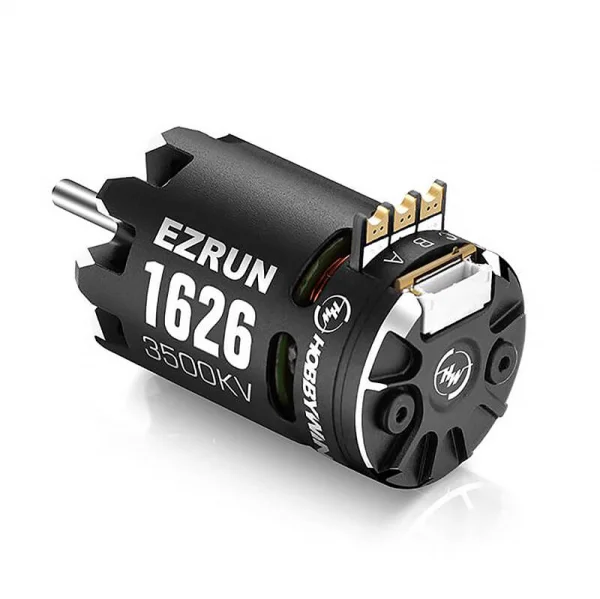

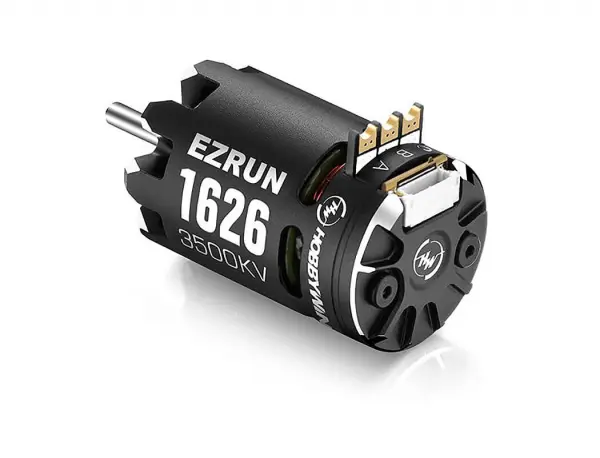

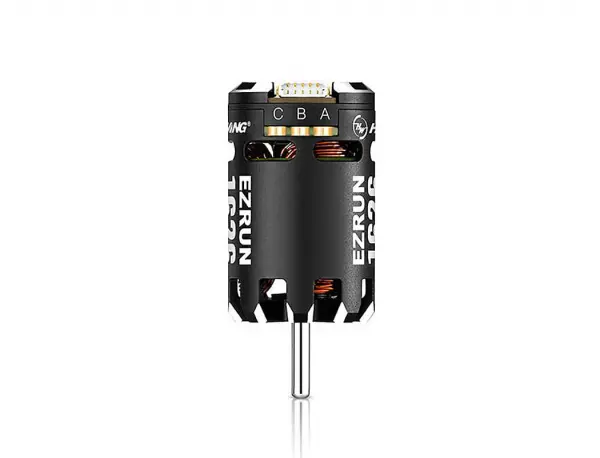

Hobbywing Ezrun 1626Sd 3500Kv Black Motor (Mini28)
Brand: Hobbywing
Part No: HW30402653
Out Of Stock
Request Stock NotificationThe Hobbywing EzRun 1626SD 3500KV Black Motor (Mini28) delivers a powerful, precision feel for high-performance 1/28th scale models. This sensored brushless design offers zero cogging, consistent torque and excellent low-speed control, while high efficiency helps maintain cooler operation during demanding runs. Part number HW30402653.
Optimised With EzRun Mini28 ESC
When paired with the EzRun Mini28 ESC, adjustable timing advance can significantly increase top speed, allowing small or large changes to suit on-demand power needs.
Key Features
- Improved top speed potential with ESC timing advance
- Precision response and smooth, zero-cogging performance
- High efficiency for cooler running
- Engineered for the rigours of high performance
- Modular, easy-to-maintain construction with quality components
Design Details
- High-density 4-layer PCB for easy solder connections
- Reliable materials and high-quality bearings
- High-hardness aluminium CNC casing
- High-strength, explosion-proof rotor
- High-resistant output shaft
- 200°C temperature-resistant copper windings
- 0.2 mm ultra-thin silicon steel laminations
- Modular, detachable structure for convenient cleaning and maintenance
Specifications
- Suggested compatibility: 1/28th mini scale vehicles
- Scale: 1/28th
- Type: Brushless (BL)
- Configuration: Sensored (SD)
- Pole count: 2
- LiPo cells: 2S
- No-load current: 0.4 A
- Outer diameter: 16 mm
- Length: 26 mm
- Shaft diameter: 2 mm
- Weight: 18 g
- Bearing size: D5×D2×T2.5
Secured by Stripe
HOBBYWING EZRUN 1626SD 3500KV BLACK MOTOR (MINI28)
Introducing the Hobbywing EZRUN 1626 motor.
The first motor from Hobbywing is specifically designed for high-power 1/28th scale cars.
More Power!
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
Small or large changes can be made for major on-demand power needs.
Precision Response
Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability.
The use of high-precision sensors ensures the ESC will be able to provide the best feel for the drivers.
Higher Efficiency means cooler operation
The 1626 motor is extremely efficient and has increased power compared to similar size motors.
Designed to ensure higher power capabilities
- High-density 4-layer PCB provide easy-to-solder connections
- Reliable Materials
- High-quality bearings
- High-hardness aluminum CNC casing
- High-strength explosion-proof rotor
- High-resistant output shaft
- 200°C temperature-resistant copper wire
- 0.2mm ultra-thin silicon steel sheet
- Modular detachable structure, convenient for daily cleaning and maintenance.
Features
- Improved top speed
- Precision response
- High efficiency with the cool operation
- Designed for the rigors of high performance
- Easy to maintain with quality components
Specifications
Applications: 1/28th Mini
Scale: 1/28th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 2500
LiPo Cells: 2S
No-load Current (A): 0.4A
O.D.(mm): 16
Length (mm): 26
Shaft Diameter (mm): 2
Weight (g): 18g
Bearing: D5*D2*T2.5
Key Info:
- Brand: Hobbywing
- Part No: HW30402653
- Barcode: 6938994406246
- Fitment: Option Part
