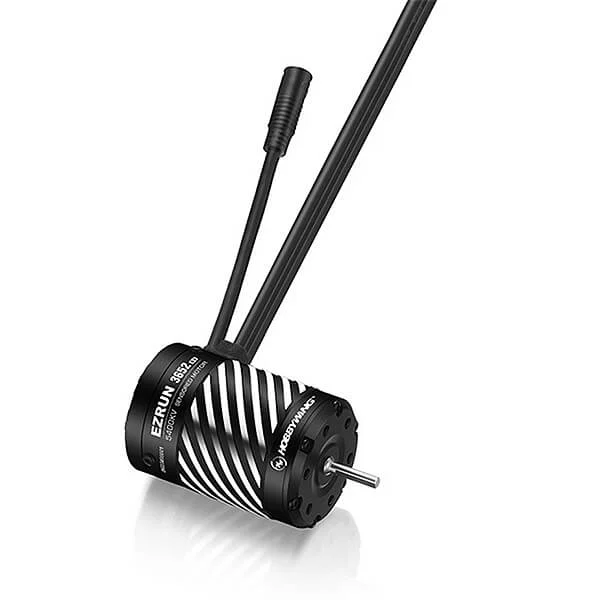

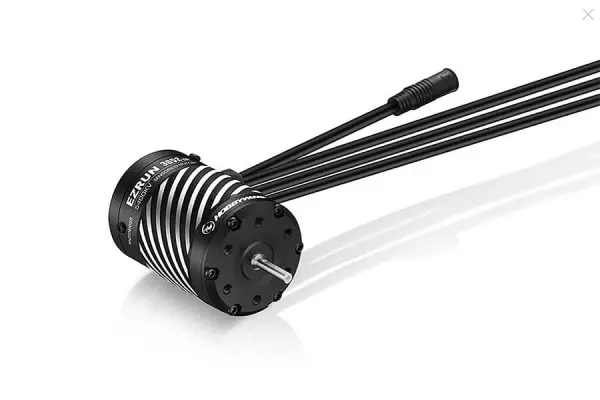

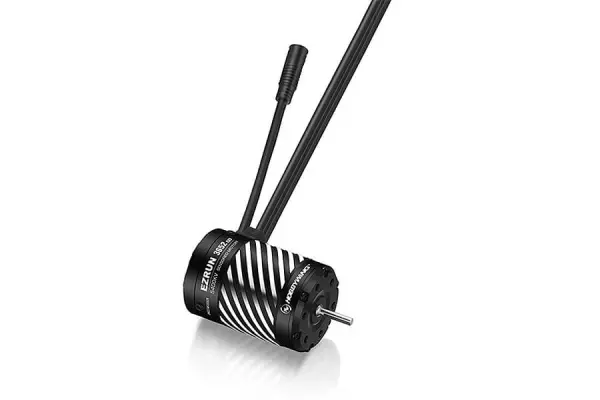

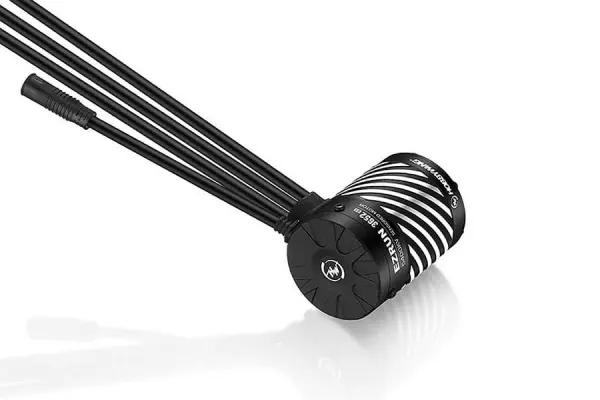

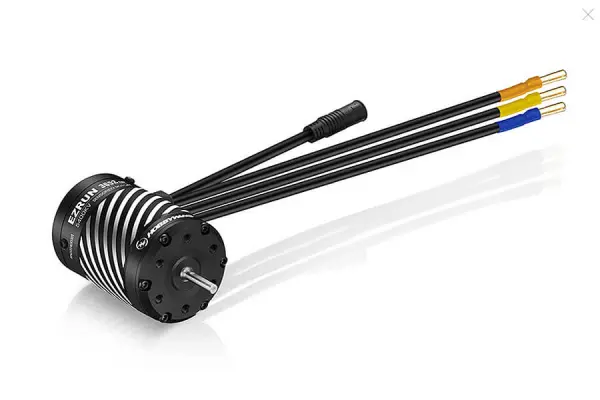

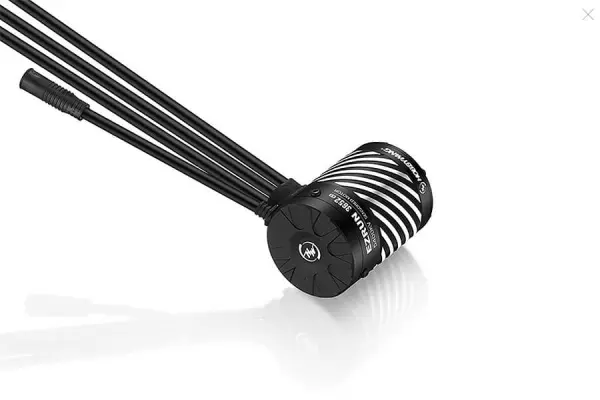

Hobbywing Ezrun 3652SD 5400Kv Black G3 Sensorless Motor

The Hobbywing EzRun 3652SD 5400KV Black G3 is a compact high-RPM brushless motor built for 1/10 scale performance. With a 4‑pole design and 2S LiPo rating, it delivers smooth, efficient power in a durable 37mm x 53mm can. Part number HW30402606.

Key Specifications

• Scale/Type: 1/10, brushless (BL), SD, 4‑pole


• KV Rating: 5400KV


• LiPo Cells: 2S


• No‑Load Current: <6.8A


• Can Diameter: 37mm


• Length: 53mm


• Shaft Diameter: 3.175mm


• Weight: 227g


• Bearings: Front D13×D5×T4; Rear D11×D5×T5

Applications & Suggested Compatibility

• 1/10 on‑road and off‑road vehicles


• Short course truck (light‑duty)

Designed in the G3 series with a black finish, the EzRun 3652SD offers a practical balance of speed and control for club racing and bashing. Its 3.175mm shaft suits many common 1/10 drivetrains, while the compact footprint makes installation straightforward in tight chassis layouts.
