Hobbywing Ezrun 3665SD 2400KV G3 Motor (HW30402604)
Brand: Hobbywing
Part No: HW30402604
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Ezrun 3665Sd 2400Kv Black G3 Sensored Motor
Description

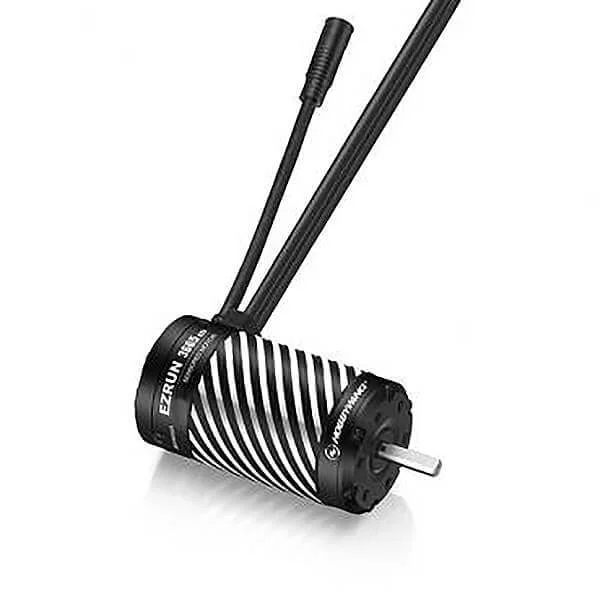

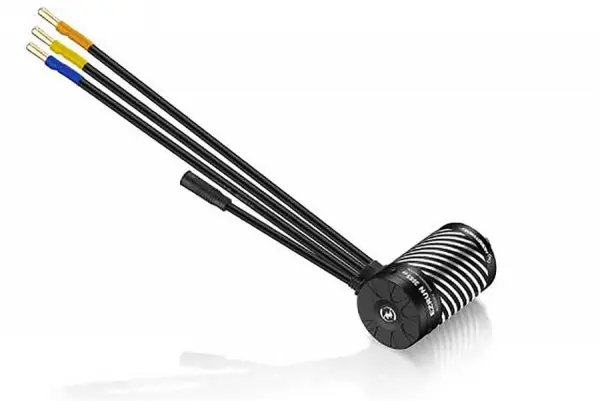

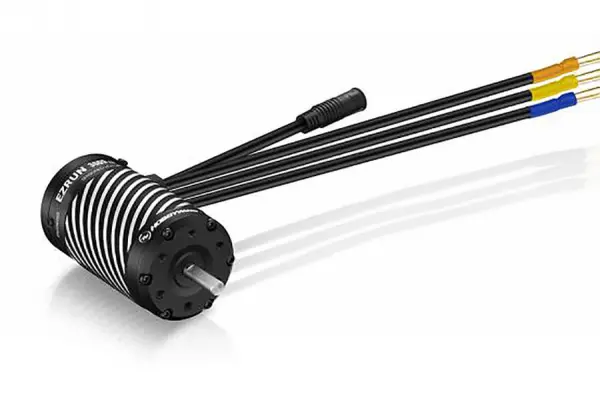

The Hobbywing Ezrun 3665SD 2400KV Black G3 brushless motor (HW30402604) is a 4‑pole SD design for 1/10-scale applications. It supports 2–4S LiPo power and uses a 5 mm output shaft, providing a versatile option for on-road and off-road setups where a 36/37-size can is required.
Key Specifications
- Type: Brushless (BL); SD; 4‑pole
- KV rating: 2400KV
- LiPo cells: 2–4S
- No‑load current: <5.2A
- O.D.: 37 mm; length: 65.8 mm
- Shaft diameter: 5 mm
- Weight: 304 g
- Bearings: Front D16×D5×T5; rear D11×D5×T5
Suggested Compatibility
- 1/10th on-road / off-road short course truck (light-duty)
Secured by Stripe
Hobbywing Ezrun 3665Sd 2400Kv Black G3 Sensored Motor Manuals & Guides
Specifications
HOBBYWING EZRUN 3665SD 2400KV BLACK G3 SENSORED MOTOR
Specifications
Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 2400KV
LiPo Cells: 2-4S
No-Load Current(A): <5.2A
Size & Weight
O.D.(mm): 37
Length (mm): 65.8
Shaft Diameter (mm): 5
Weight (g): 304g
Front Bearing: D16*D5*T5
Rear Bearing: D11*D5*T5
Other Parameters
Application: 1/10th On-Road / Off-Road Short Course Truck (light-Duty)
Key Info:
- Brand: Hobbywing
- Part No: HW30402604
- Barcode: 6938994405577
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
That is sensored i have changed that now.
It depends on the buggy but you will need a pinion gear with the right pitch and a 5mm shaft.
It can be run sensored or sensorless.
