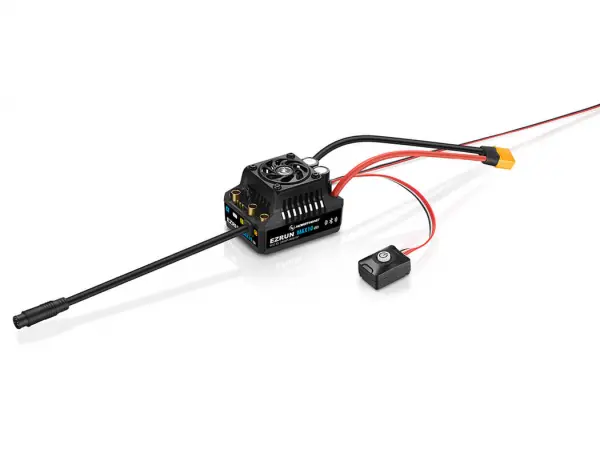

Hobbywing EZRun MAX10 G2S 140A ESC HW30102500

Hobbywing EZRun MAX10 G2S 140A ESC (HW30102500) is a 1/10-scale waterproof brushless speed controller for suitable radio-controlled vehicles. It accepts a 2–4S LiPo battery and is rated for 140A continuous current with an 880A peak current rating.

The ESC provides a selectable 6V, 7.4V or 8.4V BEC output at 5A, allowing the output voltage to be matched to compatible radio equipment. The input side uses red and black 12AWG wires measuring 150mm, with an XT60 input connector. The output connection uses 4.0mm female gold connectors.

Features

Suggested compatibility includes 1/10 short course trucks, trucks and monster trucks. The recommended motor combinations vary with battery voltage: up to 6000KV with a 3652-size motor on 2S LiPo, up to 4000KV with a 3665-size motor on 3S LiPo, and up to 2600KV with a 4268-size motor on 4S LiPo.

Programming and data functions are available through the separate programming port. The ESC supports the Hobbywing LCD G2 and LCD PRO program boxes, as well as the OTA Programmer. It also supports firmware upgrades, real-time data, extreme-value recording and built-in historical data graphs. The on-ESC set button and LED Program Box are not supported.

Specifications

• Scale: 1/10
• Continuous/peak current: 140A/880A
• Input voltage: 2–4S LiPo
• BEC output: 6V, 7.4V or 8.4V at 5A
• Dimensions: 53 x 39.5 x 37.2mm
• Weight: 125g including wires
