Hobbywing EZRun MAX5 HV G2 ESC Combo With 56118Sd 650Kv G2 Motor

Hobbywing EZRun MAX5 HV G2 ESC Combo With 56118Sd 650Kv G2 Motor

Brand: Hobbywing

Part No: HW38010603

£368.99 RRP £409.99

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

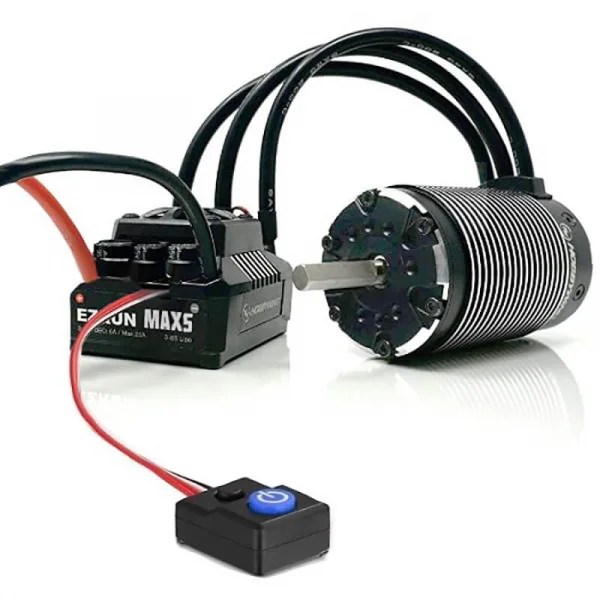

The Hobbywing EZRun MAX5 HV G2 ESC Combo with 56118SD 650KV G2 Motor (part HW38010603) pairs a high-current, 12S-capable speed controller with a large 56×119mm sensored brushless motor. Designed for extreme 1/5-scale performance, it brings smooth control, strong braking and dependable thermal management for demanding big-scale builds.

Key Features

  • Excellent waterproof and dustproof performance for harsh environments and varied climates.
  • Smart freewheeling technology for higher drive efficiency and lower operating temperatures.
  • Built-in switch-mode BEC with 6–8.4V adjustable output to suit high-voltage servos.
  • Comprehensive protection suite: low-voltage cutoff, ESC overheat, throttle signal loss, current and capacitor overheat protection.
  • Independent programming port for convenient setup without unplugging the throttle lead.

ESC Specifications

  • Continuous / Peak Current: 250A / 1600A
  • Motor Type: Sensored / Sensorless brushless motor
  • LiPo Cells: 6–12S LiPo
  • Motor Limit: With 8S LiPo: KV < 1200; With 12S LiPo: KV < 800
  • BEC Output: 6V / 7.4V / 8.4V adjustable, continuous 8A (switch-mode)
  • Cooling Fan Supply: 6V / 7.4V / 8.4V from built-in BEC
  • Programming: Independent programming port
  • Size / Weight: 94.5(L) × 59.4(W) × 50.9(H) mm / 428.5g (incl. input wires)

Motor Specifications (56118SD G2, 650KV)

  • KV: 650KV
  • LiPo Range: 8–12S
  • No-load Current: 5.5A
  • Dimensions: Ø56mm × 119.2mm
  • Shaft: Ø8mm × 30mm
  • Bearings: Front 22×8×7mm; Rear 19×8×6mm
  • Poles: 4
  • Weight: 1272g

Suggested Compatibility

1/5-scale buggy and truck platforms.

Note

The stated KV ranges are recommended for standard applications (considering motor RPM capability and overall vehicle load) and do not represent the maximum RPM supported by the ESC.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

HOBBYWING COMBO EZRUN MAX5 HV G2 ESC 56118SD 650KV G2 MOTOR Features

  • Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
  • Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
  • Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V-8.4V adjustable, easy to drive various powerful and high-voltage steering servo.
  • Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
  • It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use

Combo Specifications

KV: 650KV
Lipo's: 8-12S
No-load Current (A): 5.5A
Diameter / Length: φ=56mm (2.20") L=119.2mm (4.69")
Shaft Diameter / Length: φ=8mm (0.31") L=30mm (1.18")
Bearing size (mm): Front: D22*D8*T7 Rear: D19*D8*T6
Pole: 4
Weight: 1272g
Applications: 1/5 Buggy, Truck

ESC Specifications

Cont. / Peak Current: 250A / 1600A
Motor Type: Sensored / Sensorless Brushless Motor
Application: 1/5th Buggy, Truck
Motor Limit (Note*): With 8S LiPo: KV < 1200 With 12S Lipo: KV <800 56118 size motor
LiPo Cells: 6-12S LiPo
BEC Output: 6V/7.4V8.4V adjustable, continous current 8A (switch-mode)
Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
Size / Weight: 94.5(L) x 59.4(W) x 50.9(H)mm / 428.5g (Included input wires)
Programming Port: Independent programming port

Please Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.





Key Info:
  • Brand: Hobbywing
  • Part No: HW38010603
  • Barcode: 6938994407625
Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Can this happilly run 8s and 12s when i fancy it?
Callum Burgess / 30th March 2025

Yes the limit for 12s on that ESC is 800kv so that should be fine.

Rich @ Wheelspin Models
