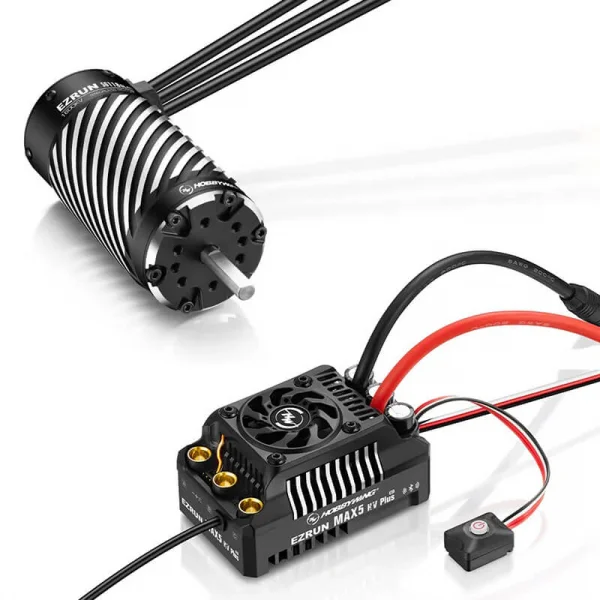

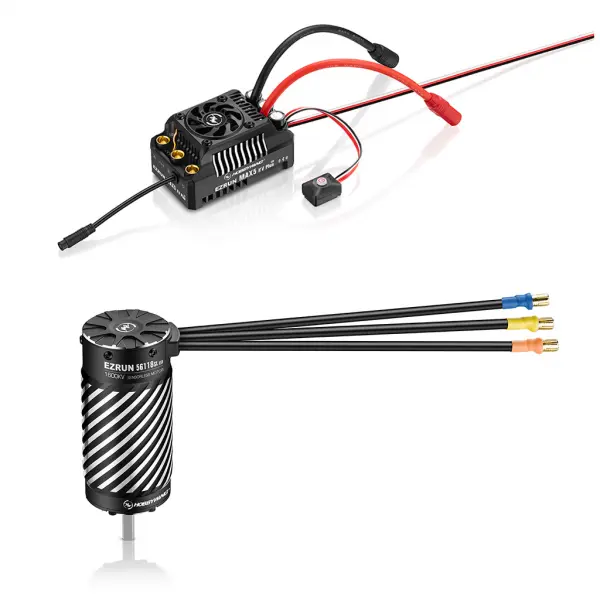

Hobbywing EZRun MAX5 HV G2 Plus ESC Combo HV G2 With 56118Sl 1600Kv G2 Motor

Introducing the Hobbywing EzRun MAX5 HV Plus G2 and 56118SL 1600KV G2 Motor.

• Sensored and High-power ESC for Extreme-Speed Applications.
• The ESC supports 6-12S LiPo batteries.
• Delivers up to 500A continuous current with 8S.
• Delivers up to 330A continuous current with 12S/
• It is powerful enough to handle 1/7th, 1/8th extreme speed applications with ease.

Intelligent Freewheeling, Low Temperature Rise and High Reliability.
The advanced freewheeling technology increases driving efficiency and reduces operating enhances the ESC's stability and reliability.

Built-in Bluetooth for Direct Connectivity to the Mobile APP.
The ESC comes with a built-in Bluetooth module. It allows users to connect directly to a mobile app to adjust settings, check data, and update firmware with ease.

Built-in Data Logging Function, Obtain Operation Status with Ease.
The ESC has a built-in data recording module that stores up to 10 minutes of recent data. With the mobile app, you can view curve graphs and historical records to easily monitor and understand your ESC and motor performance. Note: Due to transmission distance of bluetooth, the effective distance is only about 5m!

Applicable to All Weather Conditions.
The ESC has an IP67 protection rating, offering excellent waterproof and dustproof performance to handle different weather conditions and tough environments with ease.

Note: The IP67 protection level indicates the ESC is splashproof, water-resistant, and dustproof under normal use. It has been tested under controlled laboratory conditions in accordance with GB/T 4208-2017 (China) and IEC 60529 (International) standards. However, these protective features are not permanent and may diminish over time due to aging. Avoid prolonged submersion in water, as it may damage the product.

Super Built-in BEC.
A maximum output of 28A Adjustable voltage options of 6V/7.4V/8.4V It effortlessly powers strong and high-voltage servos,
giving players the freedom and control they need for an enhanced experience.

Supports Ultra-high Speed Applications.
The ESC supports a maximum speed of 300,000 RPM (2-pole), easily meeting the demands of high-speed extreme applications.

Note: The maximum supported speed varies depending on the motor's pole pair configuration. The actual supported speed is calculated as 300,000/pole pair. For example, a 4-pole motor supports up to 150,000 RPM, while a 6-pole motor supports up to 100,000 RPM.

Turbo Timing Technology.
The ESC supports a maximum adjustable Turbo timing of 24 degrees.
Note: Turbo timing is only compatible with Hobbywing EZRUN 5690/56118 G2 sensored motors and cannot be enabled for other motors.

It can boost maximum speed by approximately 18%. When paired with the Hobbywing EZRUN 5690/56118 SD G2 sensored motor, it can boost maximum speed by approximately 18%.

Large Built-in Capacitor.
The ESC features a high-capacity 4080μF capacitor, eliminating the need for external capacitors in 1/5th, 1/7th, and 1/8th high-speed models. Additionally, it includes a capacitor temperature protection function.

Dual Programming Method.
The ESC supports parameter adjustments via the HW Link App using Bluetooth. Or through an LCD/LCD G2 programmer connected to the independent programming port.

Equipped with Anti-spark Connectors.
The ESC's input line comes standard with AS150 anti-spark plug protection, ensuring safety when using higher voltages (6-12S). It effectively prevents damage to the battery plug and protects against strong electric sparks that could harm fingers.

Scale: 1/5th?1/7th?1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Yes
Cont./Peak Current: 330A/200A
Input: 6-12S LiPo
BEC Output: 6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)

Wires & Connectors
Input Wires: Red-8AWG-200MM*1?Black-8AWG-200MM*1
Output Wires: No
Input Connectors: AS150-F plug - red shell, AS150-M plug - black shell
Output Connectors: 8.0MM Gold female plug

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD Pro: Supported
OTA Programmer: Supported
Programming Port: Bluetooth(directly connected by mobile phone APP)/ Independent Programming Port (connected by LCD/OTA)

Data Recording
Extreme Value: Supported
Real-time Data: Supported
Historical date (graph): Supported

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 94.5*59.4*51.6mm
Weight: 450g(Including wires and plug)

Applications
Motors: Sensored Brushless motors & Sensorless Brushless motors
Vehicles: 1/8th, 1/7th and other model cars for extreme speed applications, 1/5th trucks/monsters trucks for violent applications
KV Rating/T Count: EZRUN 5690/56118SL G2

Exceptional Power for High-Speed Applications.
The motor delivers outstanding power and performance, making it an excellent choice for high-speed 1/7th and 1/8th scale RC vehicles.

High Speed Design.
The motor rotor has superior anti-explosion performance and supports a maximum speed of up to 78,000 RPM, which can meet the high rotational speed requirements of high-speed RC vehicles.

Optimised Pairing with EzRun MAX5 HV Plus G2 ESC.
The motor is engineered for seamless compatibility with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and greater power output for maximum performance.

Modular Construction for Easy Maintenance.
Featuring a modular and detachable design, the motor is easy to clean and maintain, significantly extending its operational lifespan while ensuring consistent performance.

Dual Specifications to Suit Various Applications.
The motor provides two options: 5690-2400KV and 56118-1600KV.

High-Quality Materials for Durabiliy.
Constructed using premium materials, the motor offers exceptional reliability and performance:

• CNC-machined Aluminum Housing for High Strength.
• Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
• High-temperature-Resistant Oxygen-free Copper Wires.
• Carbon Fiber-wrapped Explosion-proof Rotor.
• High-toughness Alloy Output Shaft.

Innovative and Stylish Design.
The motor's innovative spiral groove heat sink design not only enhances thermal performance but also provides a striking, modern aesthetic.

Type
Scale: 1/7th, 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Pole Count: 4

Relevant Parameters
KV Rating: 1600KV
LiPo Cells: 6-12S
No-load Current(A): 16A

Size & Weight
O.D.(mm): 56
Length (mm): 118
Shaft Diameter (mm): 8
Weight (g): 1270g
Front Bearing: D22*D8*T7
Rear Bearing: D19*D8*T6

Applications
ESC: EZRUN MAX5 HV PLUS G2
Applications: 1/8th, 1/7th and other model cars for extreme speed applications

• Brand: Hobbywing
• Part No: HW38010612
• Barcode: 6938994407762
