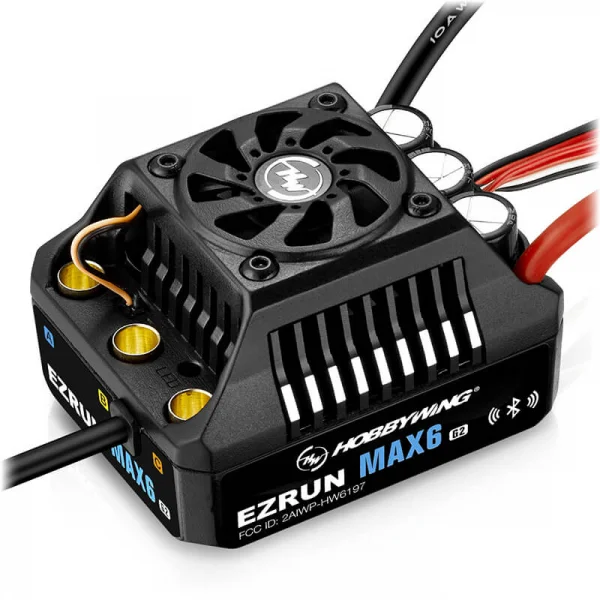

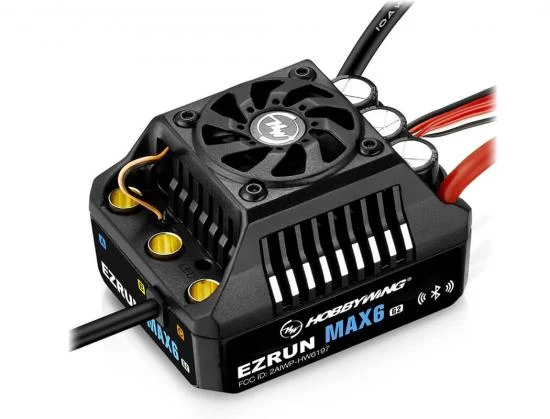

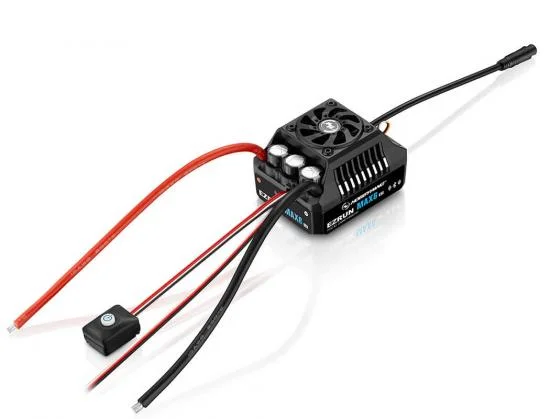

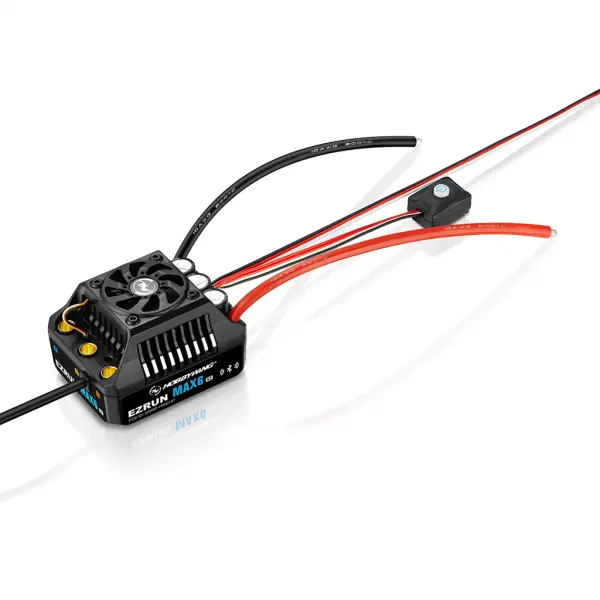

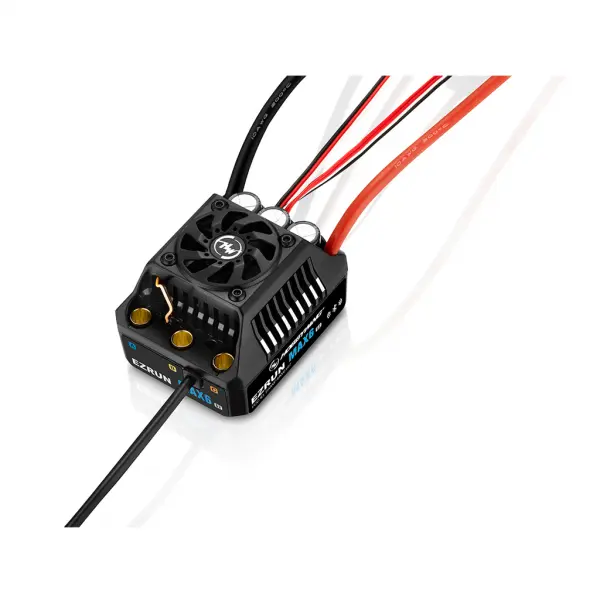

Hobbywing EZRun MAX6 G2 200A ESC

The Hobbywing EZRun MAX6 G2 200A ESC (HW30105100) is a heavy-duty brushless speed controller engineered for 1/6 and 1/7 high-performance builds. With waterproof construction, wide 3–8S LiPo support and a powerful adjustable BEC, it provides stable control for large on-road cars, trucks and monster trucks. Built-in Bluetooth, data capture and firmware upgrade capability make it a modern, high-spec choice for demanding RC applications.

Key Specifications

• Scale: 1/6, 1/7
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Waterproof: Yes
• Continuous/Peak Current: 200A / 1200A
• Input Voltage: 3–8S LiPo
• BEC: Switch-mode 6V / 7.4V / 8.4V @ 8A
• Input Wires: 10AWG, 200mm (black x1, red x1)
• Input Connectors: 6.5mm female connectors
• Fan: 35 x 35 x 10mm; supply 5–8.4V; powered by BEC
• Size: 70 x 56 x 45.5mm
• Weight: 245g (including input wires)

Programming And Interfaces

• Program Port: Built-in Bluetooth
• SET Button on ESC: Not supported
• LED Program Box: Not supported
• LCD G2 Program Box: Not supported
• OTA Programmer: Not supported

Data And Firmware

• Data Recording (extreme value): Supported
• Real-time data: Supported
• Historical data (graph): Supported
• Firmware upgrade: Supported

Applications

• Motors application: 1/6 and 1/7 on-road, truck, monster truck

Suggested Compatibility

• Losi 1/6 Super Baja Rey
• Traxxas XRT
• Traxxas X-MAXX
• ARRMA 1/7 Limitless
• ARRMA 1/7 Fireteam
• ARRMA 1/7 Mojave
• CEN 1/7 Reeper
• HPI Baja 5B

Combining 200A continuous current handling with 8S capability and an 8A adjustable BEC, the EZRun MAX6 G2 delivers the high power and control required by large-scale RC cars. Its compact 70 x 56 x 45.5mm footprint, 10AWG wiring and 6.5mm connectors support robust installation, while the integrated 35mm fan helps maintain consistent performance run after run.
