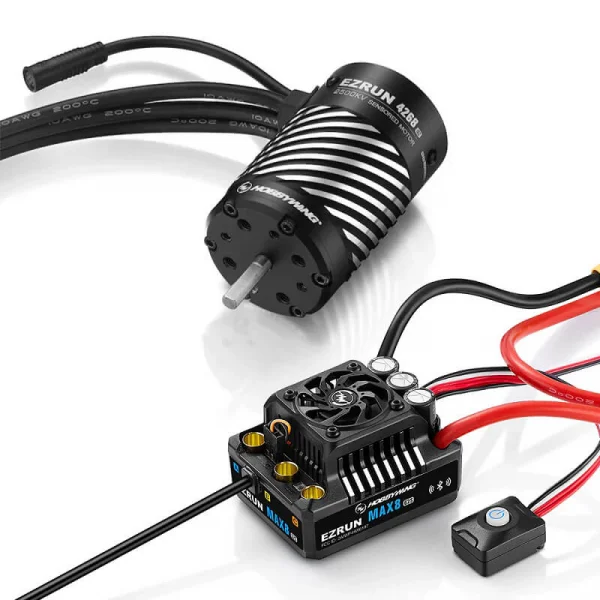

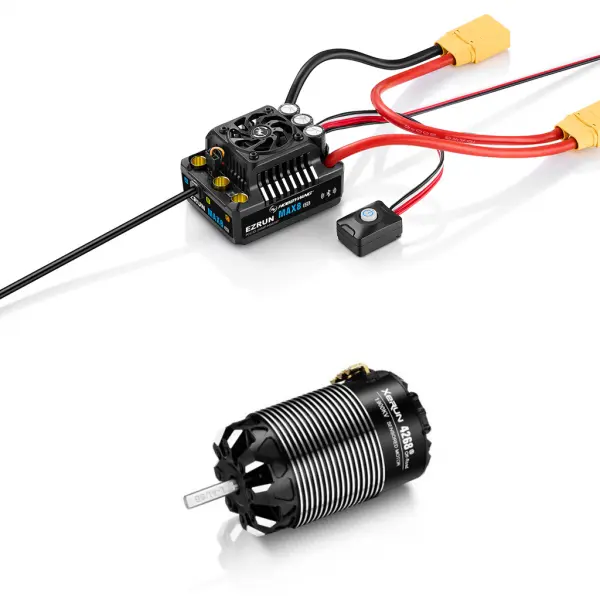

Hobbywing EZRun MAX8 G2S ESC Combo With 4268Sd 2500Kv G2R Motor

The Hobbywing EZRun MAX8 G2S ESC Combo with 4268SD 2500KV G2R Motor (HW38010606) delivers a robust 1/8 scale brushless setup with integrated Bluetooth and built-in data logging. The MAX8 G2S ESC features an intelligent fan start–stop function, waterproof construction and an adjustable high-current switch-mode BEC to support demanding applications.

Paired with the EZRun MAX 4268SD G2R 2500KV motor, this combo is suited to 3–4S Lipo power. Detailed specifications are listed below to help with installation planning and system matching.

ESC: EZRun MAX8 G2S Key Specifications

• Scale vehicles: 1/8
• Bluetooth: Yes
• Built-in data logging: Yes
• Intelligent fan start–stop function: Yes
• Firmware upgrade: Yes
• Motor limit: 4S Lipo: KV ≤ 3000; 6S Lipo: KV ≤ 2400 (4278 size motor)
• BEC output: 6V / 7.4V / 8.4V adjustable, 10A continuous (switch-mode)
• Switch mode: Electronic switch
• Capacitor protection: Yes
• Waterproof: Yes
• Size (L × W × H): 60 × 48 × 40.5 mm
• Weight: 194 g
• Connectors: Input XT90; Output 6.5 mm gold plug (female)

Motor: EZRun MAX 4268SD G2R Key Specifications

• KV-value: 2500KV
• Lipo cells: 3–4S
• No-load current: 5.2A
• Outer diameter / length: 42 mm / 68 mm
• Shaft diameter / exposed shaft length: 5 mm / 18.5 mm
• Bearing size: Front D16×D5×T5; Rear D11×D5×T5
• Pole: 4
• Weight: 360 g
• Application: 1/8 Buggy; 1/10 Heavy-Duty Monster Truck

Suggested Compatibility

• 1/8 scale vehicles
• 1/8 buggy (suggested compatibility)
• 1/10 heavy-duty monster truck (suggested compatibility)

What's Included

• 1 × Ezrun MAX8 G2S ESC
• 1 × EZRUN MAX 4268SD G2R motor
