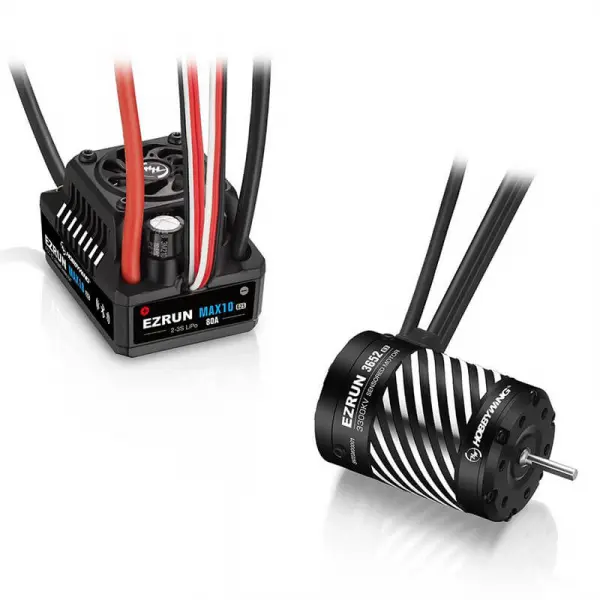

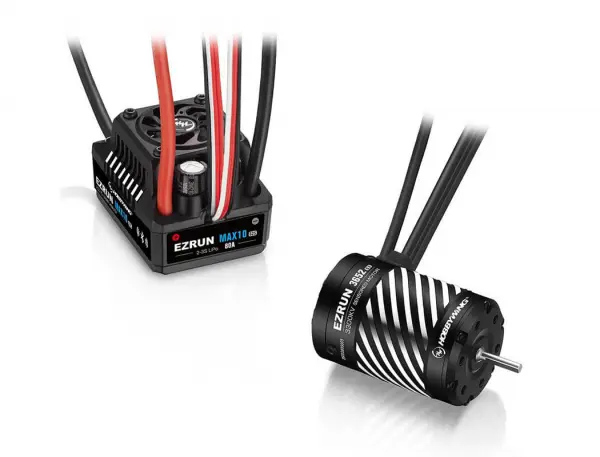

Hobbywing MAX10 G2S ESC Motor Combo HW38010206

This combo combines the Ezrun MAX10 G2S 80A ESC with the matching Ezrun 3652SD G3 3300kV brushless motor – a perfectly synchronised 1:10 scale drivetrain package right from the factory.

The MAX10 G2S is the consistent evolution of the MAX10 G2: same performance data, identical housing – but an electronic speed controller that can be programmed without any additional equipment. The Bluetooth module is integrated directly in to the switch, connecting to your smartphone via the HW-LINK app which handles configuration, data analysis, and firmware updates seamlessly. New features compared to the G2 include internal data logging and a third BEC voltage stage of 8.4V for high-voltage servos.

In this particular setup, the ESC reveals its strengths: The Turbo Timing can only be activated with Hobbywing motors, increasing the maximum RPM by up to approximately 25%. Furthermore, the motor overheat protection only works with supported Hobbywing motors. Both features are available out of the box with the supplied Ezrun 3652SD G3 motor.

• Integrated Bluetooth module in the switch – program directly via smartphone without additional devices.
• Internal data logging of the last 10 minutes of runtime, graphically analyzed in the HW-LINK app.
• Turbo Timing up to 20 degrees – boosts max RPM by up to approx. 25% with the included motor.
• BEC with three voltage levels: 6V / 7.4V / 8.4V at 5A in switch mode.
• Frameless fan with side air outlet, temperature-controlled activation.
• Dust and waterproof ESC and motor according to IP67 standard, with a waterproof sensor cable.
• Overheat protection for capacitors.
• Safety features against undervoltage, overheating, and signal loss.
• 4-pole rotor providing high torque, rapid acceleration, and stable performance.
• CNC-machined aluminum housing and precision bearings on the motor.

ESC (Ezrun MAX10 G2S 80A)

Type: 1/10 Brushless, sensored and sensorless
Current (continuous/peak): 80A / 520A
Input Voltage: 2-3S LiPo
BEC: Adjustable 6V / 7.4V / 8.4V, 5A continuous (switch mode)
Motor Limits: 2S LiPo: KV ≤ 6000
3S LiPo: KV ≤ 4200 (3652/3665 motor)
Turbo Timing: Up to 20 degrees
Fan: Yes, powered via BEC
Programming: Bluetooth (HW-LINK app), LCD programming box, OTA programming module, separate 3-pin programming port
Waterproof: Yes, IP67
Input Connector: XT60
Output Connector: Gold bullet connectors
Dimensions: 53 x 39.5 x 37.2 mm
Weight: 125 g (including cables and connectors)
Application: 1/10 On-Road, Buggy, Rally, and Short Course Truck

Motor (Ezrun 3652SD G3)

Type: Brushless, sensored
KV Rating: 3300kV
No-Load Current: ≤ 3.9A
Cells: 2-3S LiPo
Pole Count: 4
Length: 53 mm
Diameter: 37 mm
Shaft Diameter: 3.175 mm
Weight: 228 g
Waterproof: Yes, IP67
Application: 1/10 On-Road / Off-Road Short Course Truck (light duty)

Please Note: For 7.4V or 8.4V BEC settings, at least a 3S battery is required. Bluetooth range is approximately 5 meters due to design.

• Brand: Hobbywing
• Part No: HW38010206
• Barcode: 6938994407779
