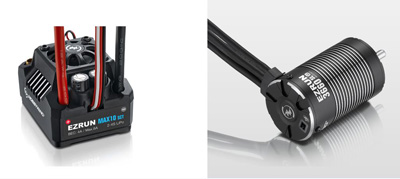

Hobbywing MAX10 SCT ESC Combo With 3660SL 3200Kv Brushless Motor
Brand: Hobbywing
Part No: HW38010200
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
HOBBYWING COMBO MAX10 SCT ESC 3660SL 3200KV MOTOR
The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.
Hobbywing EzRun MAX10 SCT Features:
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- Innovative Filter Capacitor Thermal Protection
- Regular Firmware Updates Free of Charge
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 120A/760A
- Input: 2-4S LiPo/6-12 Cells NiMH
- BEC Output: Switch Mode:6V/7.4V,3A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Black-12AWG-200mm*3
- Input Connectors: No
- Output Connecotors: 4.0 Bullet Connectors (Female)
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 49.0x39.5x34.7mm
- Weight: 105g
The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.
HobbyWing EzRun 3660 G2 3200KV SL Motor Features:
- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
- Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
- CNC machined aluminium housing, high purity copper windings and advanced rotor structure
- Rebuild-able design for easy routine maintenance
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Pole Count: 4
- KV Rating: 3200
- LiPo Cells: 2-3S
- No-load Current(A): 4.9
- Timing: 0 Degrees(Fixed)
- O.D.(mm): 36.00
- Length (mm): 60.00
- Shaft Diameter (mm): 5.0
- Weight (g): 262
Secured by Stripe
- Brand: Hobbywing
- Part No: HW38010200
- Barcode: 6938994407380
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes that will fit but you will need a pinion 32 dp with a 5mm shaft on it and a xt90 to deans adaptor to use batteries with deans on them.
Yes that will be fine but you will need a pinion gear to suit.
No this needs this one HW30502001
No that is not a big enough motor , the one in the hoss is a 540 xl motor so is longer which adds more torque required for bigger trucks.
You will struggle to get a pinion to fit the motor due to the 5mm motor shaft and the gearing pitch on that car.
You would be better looking at the normal version not the SCT version. HW38010203
Yes this would be fine for that model of car.
Yes that should work - just bear in mind these have a 5mm motor shaft though
This would fit and work well - just bear in mind this motor has a 5mm shaft so you would need a new 5mm pinion
3S would be recommended max on these
I believe it's the HW30502000 program card you need for this.
These are a 5.0mm shaft diameter on the motor, so it will just depend which Traxxas you have?
The HW30502000 program card works with these
It would depend on your setup, but I'd advise 3S is probably your max on this
You can use either - but you will have better performance on LiPo
I'd say it's comparable to your TRX Velinion 3S sytem
It's fairly straightforward to bolt the new motor in, but you would need to solder on your battery connectors onto the ESC
It's not quoted.
120A would be a theoretical 11C at 3S - so let's say minimum 25C to be on the safe side
Yes that should work nicely in there
A good 2S battery say VZ0317 or PEK00545 would work nicely
No this is for a 1/10 car you need a 1/8 system due to the size and weight of the truck.
You can solder on your choice of connector
Yes, that would work.
That would work well in the Bugsta
Yes these will fit and work well - however they do have a 5mm motor shaft, so you'll just need a new pinion with a 5mm shaft diameter.
