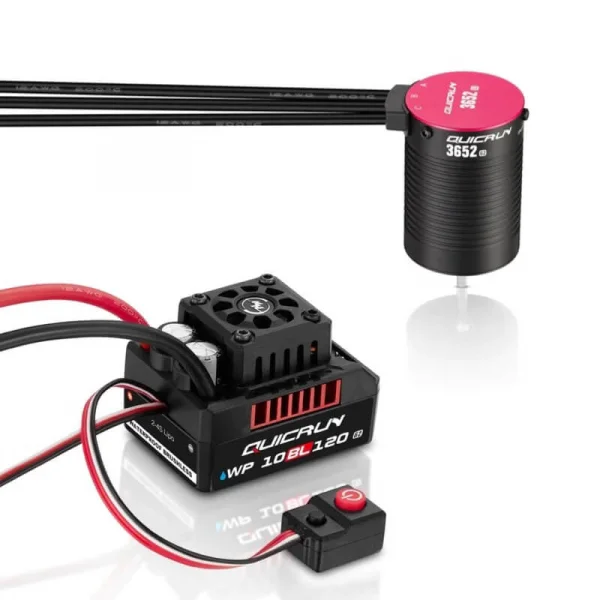

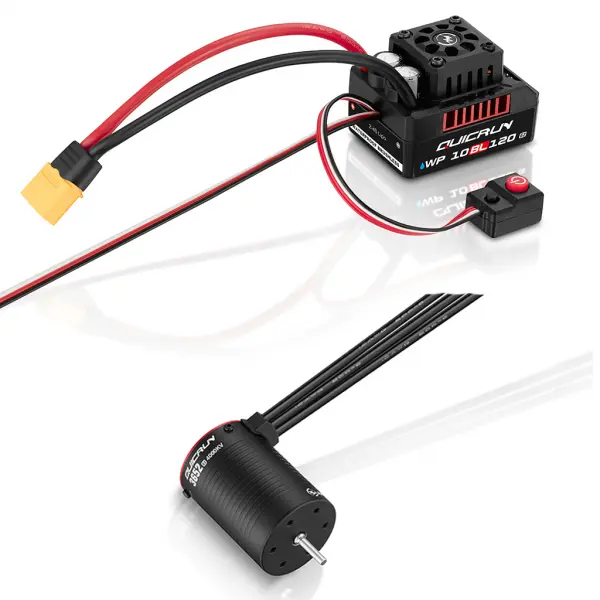

Hobbywing Quicrun 10BL120ESC G2 Combo With 3652SL 3250Kv G2 Motor

The Hobbywing Quicrun 10BL120ESC G2 Combo with 3652SL 3250Kv G2 motor (HW38030207) brings dependable G2 technology to 1/10 scale applications. Combining a waterproof, dustproof ESC with a high-efficiency 4-pole 3652SL motor, this setup focuses on smooth power delivery, reduced running temperatures and robust protection features.

Smart freewheeling technology enhances driving efficiency and lowers operating temperature, while the built-in switch mode BEC provides strong, adjustable output to support modern high-voltage servos. An independent programming port simplifies setup by allowing connection of a program card without removing the throttle lead from the receiver.

Features

• Excellent waterproof and dustproof performance for varied climates and harsh environments
• Smart freewheeling technology for higher efficiency and lower operating temperature
• Built-in powerful switch mode BEC: continuous 5A, instant up to 10A, 6V/7.4V selectable
• Multiple protections: low voltage, ESC overheat, throttle signal loss, current, and capacitor overheat
• Independent programming port for convenient parameter adjustments

Specifications

• KV: 3250KV
• LiPo: 2–3S
• No-load current: 4.0A
• Diameter/Length: 36mm × 52mm
• Shaft diameter/length: 3.175mm × 15mm
• Bearing size (front/rear): 13×5×4mm
• Poles: 4
• Weight: 223g

Suggested Compatibility

• 1/10 on-road
• 1/10 buggy
• 1/10 truck (light load)

Important Warnings

• Ensure power pairing is reasonable according to your chassis and power devices to prevent overload or damage.
• Secure all wiring carefully; loose connections from vibration can cause loss of control.
• Never apply full throttle without the pinion installed due to extremely high no-load RPM.
• Do not allow the motor case to reach 100°C (212°F) or above, as high temperatures may demagnetise the magnets.
