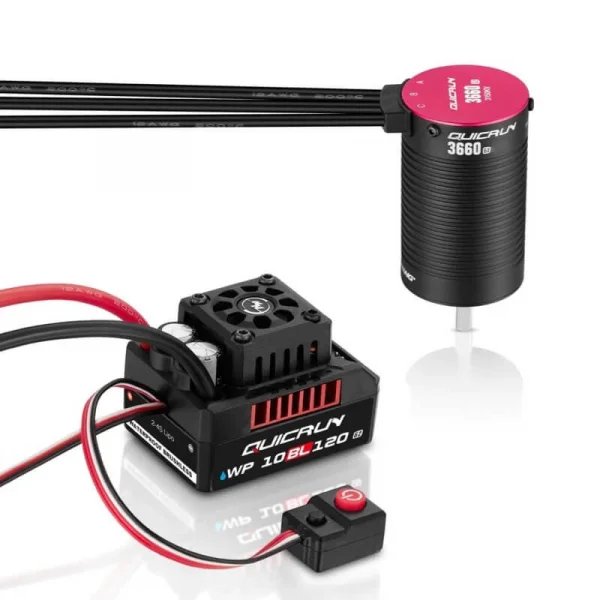

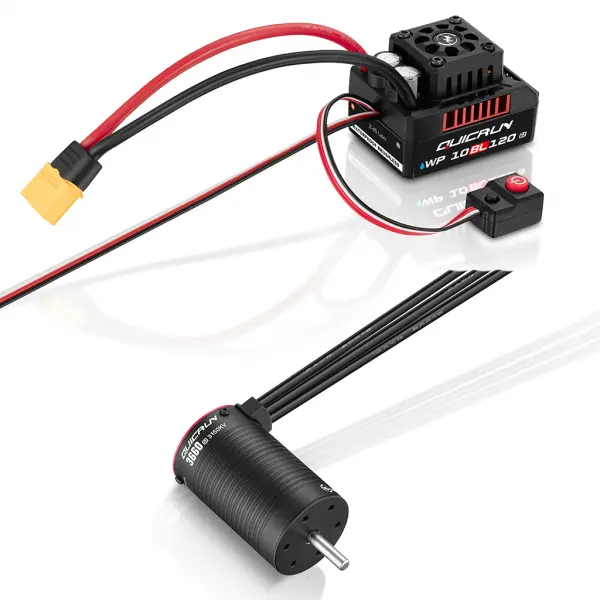

Hobbywing Quicrun 10BL120ESC G2 Combo With 3660SL 3150Kv G2 Motor

The Hobbywing Quicrun 10BL120ESC G2 Combo with 3660SL 3150Kv G2 Motor (part number HW38030210) pairs a robust speed controller with a powerful 4‑pole motor to deliver efficient, reliable performance in challenging conditions. With excellent waterproof and dustproof characteristics, this combo is designed to keep you moving through varied weather and rough terrain.

Engineered for cooler, more consistent running, the ESC features smart freewheeling technology to improve drive efficiency and reduce operating temperatures. A built‑in switch‑mode BEC supplies up to 5A continuous (10A peak) at 6V or 7.4V, supporting demanding and high‑voltage servos. Multiple onboard protections and an independent programming port further enhance ease of use and peace of mind.

Key Features

• Excellent waterproof and dustproof performance for use in harsh environments.
• Smart freewheeling technology for higher driving efficiency and lower operating temperature.
• Built‑in switch‑mode BEC: 5A continuous, 10A peak, selectable 6V/7.4V for powerful and high‑voltage servos.
• Multiple protections: low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
• Independent programming port for convenient setup with a program card without removing the receiver throttle lead.

Specifications

• KV: 3150KV
• LiPo’s: 2–3S
• No‑load Current (A): 5.4A
• Diameter / Length: ⌀36mm / 60mm
• Shaft Diameter / Length: ⌀5mm / 18.5mm
• Bearing Size (mm): Front D16×D5×T5; Rear D13×D5×T4
• Pole: 4
• Weight: 273g

Suggested Compatibility

Suggested compatibility: 1/10 trucks and monster trucks.

Important Notes

• Ensure the power pairing is appropriate for your chassis and follow the vehicle manual to avoid overload and damage.
• Secure all wiring; loose connections from vibration can cause loss of control.
• Do not apply full throttle without a pinion installed; running at extremely high no‑load RPM can damage the motor.
• Avoid exceeding 100°C on the motor can to prevent magnet demagnetisation.
