Hobbywing Quicrun 10BL120 G2 ESC Combo 3660SL 3700Kv
Brand: Hobbywing
Part No: HW38030211
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Quicrun 10BL120ESC G2 Combo With 3660SL 3700Kv G2 Motor
Description

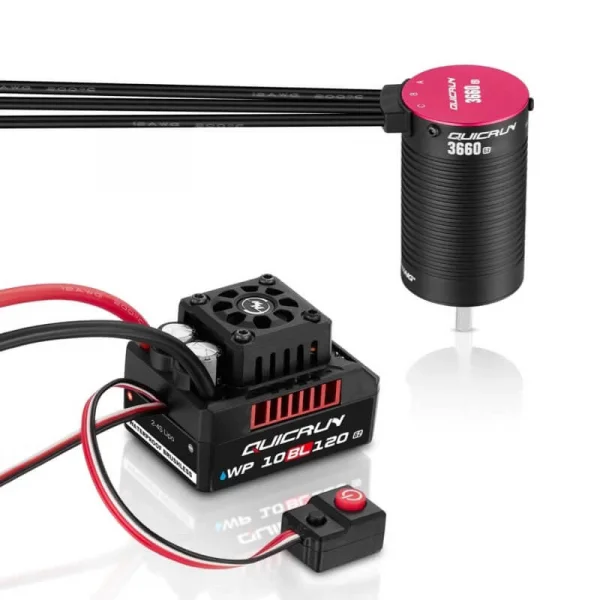

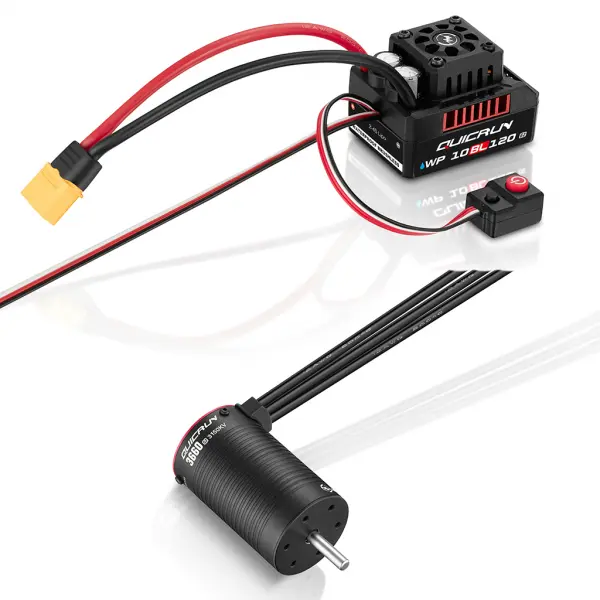

Bring reliable control and strong performance to your 1/10 build with the Hobbywing Quicrun 10BL120ESC G2 Combo With 3660SL 3700Kv G2 Motor (HW38030211). This convenient ESC-and-motor pairing combines waterproof/dustproof durability with efficient running, robust BEC power and comprehensive protection features.
Key Features
- Excellent waterproof and dustproof performance for confident running in varied weather and harsh environments.
- Smart freewheeling technology improves drive efficiency, lowers operating temperature and enhances overall stability and reliability.
- Built-in switch-mode BEC: 5A continuous, 10A peak, with 6V/7.4V output options to suit standard and high-voltage servos.
- Multiple protection functions: low-voltage cutoff, ESC overheat, throttle signal loss, current protection and capacitor overheat protection.
- Independent programming port allows connection of a program card without removing the throttle lead from the receiver.
Specifications
- Motor KV: 3700KV
- Battery: 2–3S LiPo
- No-load current: 6.5A
- Motor size: 36mm diameter x 60mm length
- Shaft: 5mm diameter x 18.5mm length
- Bearing sizes: Front D16×D5×T5; Rear D13×D5×T4
- Poles: 4
- Weight: 278g
Suggested Compatibility
- 1/10 truck
- Monster truck
Important Notes
- Ensure the power pairing is appropriate for your vehicle and drivetrain to avoid overload and damage.
- Secure all wiring carefully; loose connections from vibration can cause signal loss and loss of control.
- Do not apply full throttle without the pinion installed; extremely high unloaded RPM can damage the motor.
- Do not allow the motor case to exceed 100°C (212°F); excessive heat may demagnetise the magnets.
With its dependable waterproof design, adjustable high-current BEC and easy programming access, the Hobbywing Quicrun G2 WP-10BL120 and 3660SL 3700Kv G2 motor combo offers a solid, stress-free upgrade path for off-road RC enthusiasts.
Secured by Stripe
Hobbywing Quicrun 10BL120ESC G2 Combo With 3660SL 3700Kv G2 Motor Manuals & Guides
Specifications
- Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
- Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
- Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V/7.4V adjustable, easy to drive various powerful and high-voltage steering servo.
- Multiple protection functions: Battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
- It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use.
KV: 3700KV
Lipo's: 2-3S
No-load Current (A): 6.5A
Diameter / Length: φ=36mm (1.42") L=60mm (2.36")
Shaft Diameter / Length: φ=5mm (0.20") L=18.5mm (0.73")
Bearing size (mm): Front: D16*D5*T5 Rear: D13*D5*T4
Pole: 4
Weight: 278g
Applications: 1/10 Truck, Monster Truck
Warning: Please carefully check power devices and manual of car frame to ensure the power pairing is reasonable. Avoid wrong pairing to overload and damage the motor. Always wire up all the parts of the equipment carefully. If any of the connections come loose as a result of vibration, your model RC may lose control. • Never apply full throttle if the pinion is not installed. Due to the extremely high RPMs without load, the motor may get damaged. Never allow the motor case to get 100 degrees Celsius (212 degrees Fahrenheit) because the magnets maybe demagnetized by high temperature.
Key Info:
- Brand: Hobbywing
- Part No: HW38030211
- Barcode: 6938994420198
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
That is too hot for 3s bashing you need something like this with a lower kv HW38030207
I'm afraid not many motors will fit correctly due to how they fit in the chassis - if running brushless, so need a longer motor can (65mm minimum).
