Hobbywing Quicrun 3650 G2 10.5T Sensored Motor
Brand: Hobbywing
Part No: HW30404309
Out Of Stock

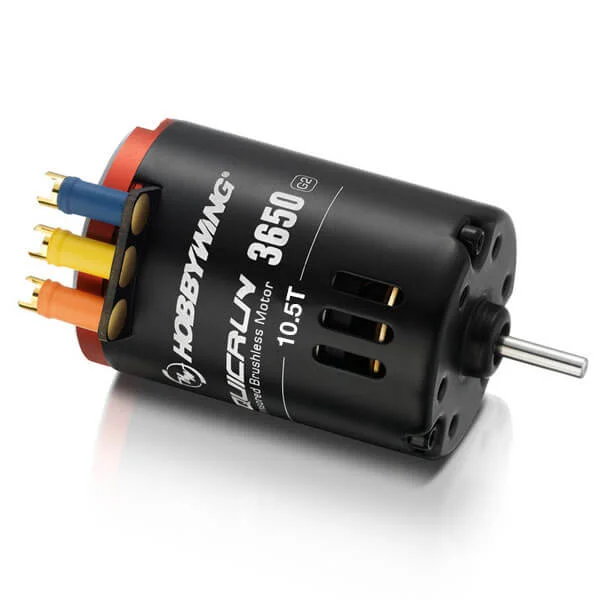

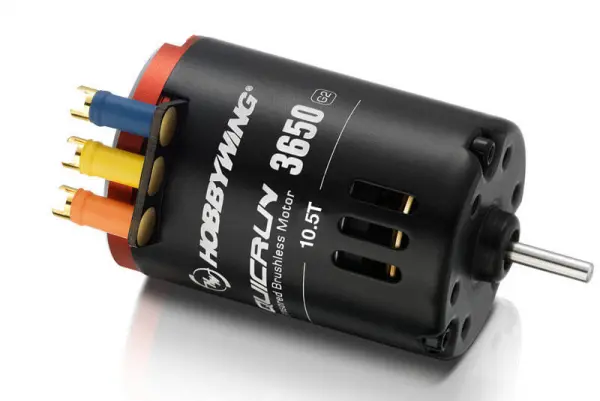

Request Stock NotificationThe Hobbywing QuicRun 3650 G2 10.5T Sensored Motor (HW30404309) delivers smooth, linear throttle response for 1/10 scale setups. A built-in Hall sensor with a non-adjustable end bell and a precision-balanced rotor provide consistent power delivery, while a silicon O-ring helps conduct heat to the motor can for improved cooling. The end bell can be removed for routine maintenance and replacement of common wear parts, and factory-soldered 3.5mm low-impedance bullets offer a reliable plug-and-play connection.
Hobbywing notes suggested compatibility with the QuicRun-10BL60-Sensored ESC for a very smooth and linear power band.
Key Features
- Linear and smooth control from the sensored design
- Enhanced heat dissipation via silicon O-ring and case design
- Plug-and-play with pre-soldered 3.5mm bullet connectors
- Re-buildable design with removable end bell
- Precision-balanced rotor for consistent performance
- Suggested compatibility: Hobbywing QuicRun-10BL60-Sensored ESC
Specifications
- Scale: 1/10
- Type: Brushless, sensored
- Pole count: 2
- KV rating: 3600 KV
- LiPo cells: 2–3S
- No-load current: 2.8 A
- Outer diameter: 36 mm
- Length: 52.8 mm
- Shaft diameter: 3.17 mm
- Weight: 186 g
- Timing: Fixed
Secured by Stripe
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions. The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
Customized 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
Hobbywing QuicRun 3650 SD G2 Features:
- Linear & Smooth Control
- Great Heat-dissipation
- Plug-and-Play
- Re-buildable Design
- Compatible (with QuicRun-10BL60-Sensored ESC)
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Pole Count: 2
- KV Rating: 3600
- LiPo Cells: 2-3S
- No-load Current(A): 2.8
- O.D.(mm): 36 (1.147in)
- Length (mm): 52.8 (2.079in)
- Shaft Diameter (mm): 3.17 (0.125in)
- Weight: 186g
- Timing: Fixed
Key Info:
- Brand: Hobbywing
- Part No: HW30404309
- Barcode: 6938994412124
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes this would be the one we recommend HW38020320
Yes this should work OK with HW30125000
It would work, but you wouldn't be able to run a sensor wire as that's a sensorless eSC
I don't believe they do, sorry
This should work fine on your 120A ESC on 3S. It's likely to struggle on 3S on a 60A ESC however.
As with any motor/ESC combo, always check your temperatures and gear accordingly.
