Description

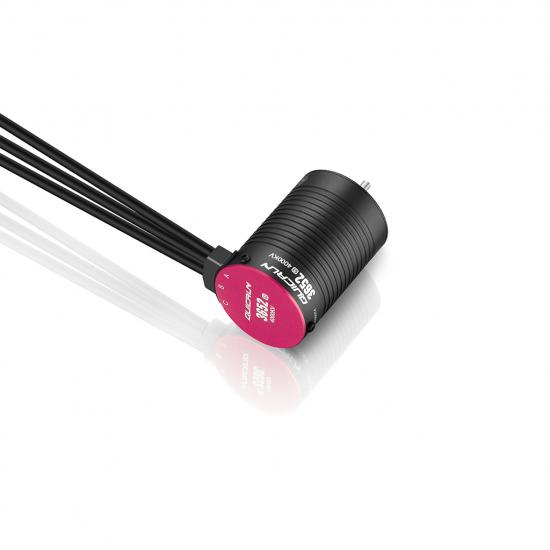

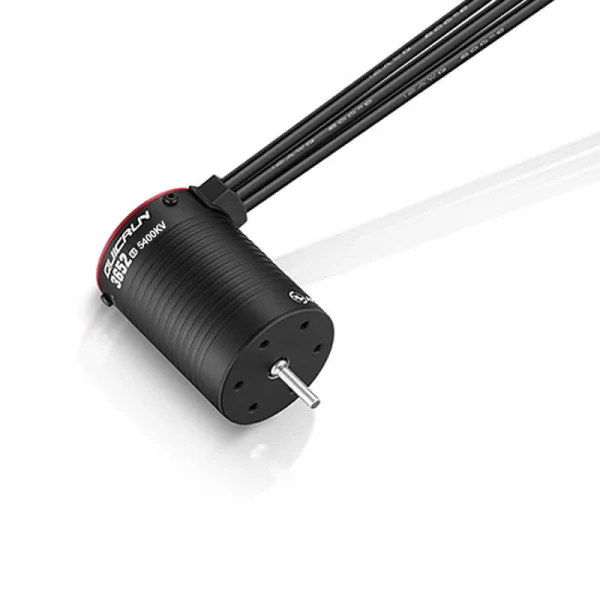

The Hobbywing Quicrun 3652SL 5400Kv G2 Motor Black (HW30404402) delivers strong brushless performance for 1/10 scale applications. With an emphasis on higher efficiency and durable construction, this G2 edition is designed to run cooler under load and offers an increase in maximum output power.
Features
- Explosive output power with a claimed 10% increase in maximum output power.
- Excellent performance with approximately 8% higher motor efficiency than comparable specifications for cooler running under the same load.
- Equipped with a powerful switch-mode BEC capable of up to 5A continuous and 10A peak, with adjustable 6V/7.4V output to drive various high-voltage servos.
- Protection features listed include low-voltage, ESC overheat, throttle signal loss, current, and capacitor overheat protections.
- Independent programming port for convenient connection to a program card without removing the receiver lead.
- Explosion-proof rotor design with reinforced aluminium end plates to improve balance, strength, and protection of internal components.
- High-hardness aluminium can, CNC end cover, 0.2mm low-loss silicon steel laminations, premium bearings, and 200°C high-temperature enameled wire.
- Modular detachable design for easier maintenance and extended service life.
Specifications
- KV: 5400Kv
- LiPo: 2S
- No-load current: 6.8A
- Can size: φ36mm x L52mm
- Shaft size: φ3.175mm x L15mm
- Bearings: Front D13 x D5 x T4; Rear D13 x D5 x T4
- Poles: 4
- Weight: 224g
Suggested Compatibility & Applications
- 1/10 on-road
- 1/10 buggy
- 1/10 truck (light load)
Secure Payments
Secured by Stripe
Specifications
HOBBYWING QUICRUN 3652SL 5400KV G2 MOTOR BLACKFeatures
Key Info:
- Explosive output power - 10% increase in maximum output power.
- Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3660/3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
- Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
- Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
- The QUICRUN 3660 / 3652 SL brushless G2 motor is ideal for off-road or on-road hobbiests, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
- QUICRUN motors feature an explosion-proof rotor design with reinforced aluminum end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
- This QUICRUN 3660/3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminum, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200°C high-temperature-resistant enameled wire for strong performance and longevity.
- The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.
KV: 5400KV
Lipo's: 2S
No-load Current (A): 6.8A
Length (mm): φ=36mm (1.42") L=52mm (2.05")
Diameter / Length (mm): φ=3.175mm (0.13") L=15mm (0.59")
Bearing size (mm): Front: D13*D5*T4 Rear: D13*D5*T4
Pole: 4
Weight:224g
Applications: 1/10 On-road, Buggy, Truck (Light Load)
Key Info:
- Brand: Hobbywing
- Part No: HW30404402
- Barcode: 6938994419963
