Description
The Hobbywing Quicrun 3660SL 3700Kv G2 Motor in Black delivers strong brushless performance in a 36×60 mm can. Designed to run on 2–3S LiPo and weighing 278 g, this 4‑pole unit offers impressive power density and durability for demanding RC applications. Part number HW30404501.
Features
- Explosive output power with a 10% increase in maximum output power.
- Excellent performance and 8% higher motor efficiency than other motors of the same specifications for cooler operation under the same load.
- Equipped with a powerful switch-mode BEC capable of 5A continuous, 10A peak, with adjustable 6V/7.4V output for high-voltage servos.
- Protection features include battery low-voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
- Independent programming port for easy connection to a program card without removing the throttle lead from the receiver.
- Explosion-proof rotor design with reinforced aluminium end plates for improved balance, strength, and protection of internal components.
- Constructed from high-hardness aluminium with a CNC end cover and 0.2 mm low-loss silicon steel laminations, high-precision bearings, and 200°C high-temperature-resistant enamelled wire.
- Modular detachable design for easier maintenance, cleaning, and repairs to extend service life.
Specifications
- KV: 3700Kv
- LiPo: 2–3S
- No‑load current: 6.5 A
- Motor size: 36 mm diameter × 60 mm length
- Shaft: 5 mm diameter × 18.5 mm length
- Bearing size: Front 16×5×5 mm; Rear 13×5×4 mm
- Poles: 4
- Weight: 278 g
Suggested Compatibility
- 1/10 truck
- 1/10 monster truck
Secure Payments
Secured by Stripe
Hobbywing Quicrun 3660SL 3700Kv G2 Motor Black Manuals & Guides
How-To Guides & Articles
Specifications
HOBBYWING QUICRUN 3660SL 3700KV G2 MOTOR BLACKFeatures
- Explosive output power - 10% increase in maximum output power.
- Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3660/3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
- Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
- Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
- The QUICRUN 3660 / 3652 SL brushless G2 motor is ideal for off-road or on-road hobbiests, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
- QUICRUN motors feature an explosion-proof rotor design with reinforced aluminum end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
- This QUICRUN 3660/3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminum, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200°C high-temperature-resistant enameled wire for strong performance and longevity.

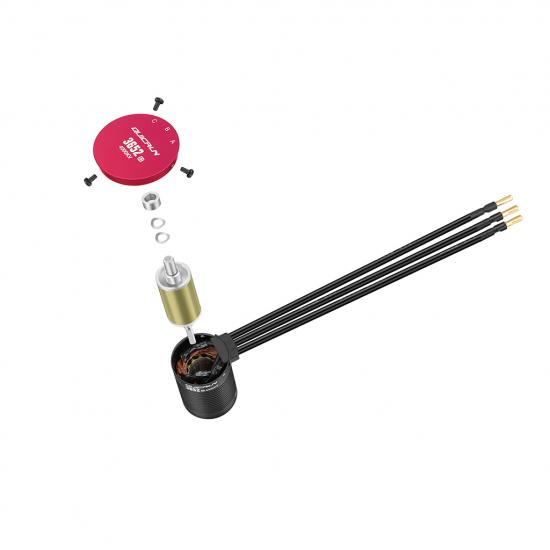

- The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.
Specifications
KV: 3700KV
Lipo's: 2-3S
No-load Current (A): 6.5A
Length (mm): φ=36mm (1.42") L=60mm (2.36")
Diameter / Length (mm): φ=5mm (0.20") L=18.5mm (0.73")
Bearing size (mm): Front: D16*D5*T5 Rear: D13*D5*T4
Pole: 4
Weight:278g
Applications: 1/10 Truck, Monster Truck
Key Info:
- Brand: Hobbywing
- Part No: HW30404501
- Barcode: 6938994419970
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Write a Review
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Hello would a hobbywing quicrun motor HW30404501 work with a hobbywing ezrun max 10 speed controller?
David Britton / 12th September 2023
Yes this would work but is a non sensored motor so will run on non sensore on the ESC.
Si @ Wheelspin Models
