Hobbywing Quicrun 3660SL 4500Kv G2 Motor Black
Brand: Hobbywing
Part No: HW30404502
Shadow Stock: Usually ships next day

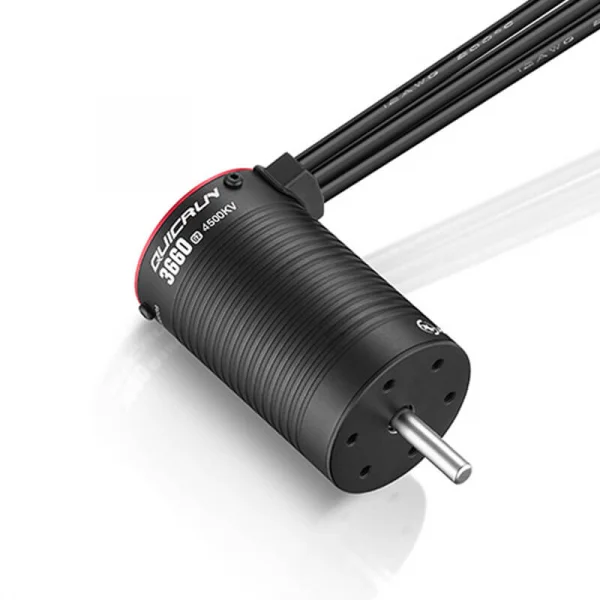

The Hobbywing Quicrun 3660SL 4500KV G2 Motor in Black (HW30404502) is a robust 1/10 scale, sensorless 4‑pole brushless motor designed for strong, efficient performance. With improved output and efficiency versus comparable motors, it runs cooler under the same load, making it a solid choice for off-road or on-road projects that need dependable power in a 36x60mm can.
Key Features
- Up to 10% increase in maximum output power.
- Approximately 8% higher efficiency than similar-spec motors for cooler running under the same load.
- Explosion‑proof rotor with reinforced aluminium end plates for strength and protection.
- High‑hardness aluminium can and CNC‑machined end cover.
- 0.2mm ultra‑thin low‑loss silicon steel laminations.
- Premium, high‑precision bearings and 200°C high‑temperature‑resistant enamelled wire.
- Modular, detachable design for easier maintenance and extended service life.
Specifications
- Scale: 1/10
- Type: Brushless, sensorless
- Pole Count: 4
- KV Rating: 4500KV
- LiPo Cells: 2S
- No‑load Current: 6.2A
- Can Size (O.D. x Length): 36 x 60mm
- Shaft Diameter: 5mm
- Connectors: 4.0mm male
- Weight: 263g
- Front Bearing: D16 × D5 × T5
- Rear Bearing: D13 × D5 × T4
- Colour: Black
Suggested Compatibility
- 1/10th truck
- 1/10th monster truck
- On‑road and off‑road hobby applications requiring a 36x60mm, 5mm shaft motor
Engineered for reliability and ease of upkeep, the Quicrun 3660SL G2 brings balanced, durable performance to 1/10 builds where a compact 36x60mm sensorless motor is preferred.
Secured by Stripe
- Explosive output power - 10% increase in maximum output power.
- Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3660SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
- The QUICRUN 3660SL brushless G2 motor is ideal for off-road or on-road hobbiests.
- QUICRUN motors feature an explosion-proof rotor design with reinforced aluminium end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
- This QUICRUN 3660SL brushless G2 motor is a reliable choice crafted from high-hardness aluminium, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200°C high-temperature-resistant enameled wire for strong performance and longevity.
- The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole Count: 4
KV Rating: 4500KV
LiPo Cells: 2S
No-load current(A): 6.2A
O.D. (mm): 36
Length (mm): 60
Shaft Diameter (mm): 5mm
Connectors: 4.0mm (male)
Weight (g): 263g
Front Bearing: D16*D5*T5
Rear Bearing: D13*D5*T4
Applications: 1/10th Truck, Monster Truck
Key Info:
- Brand: Hobbywing
- Part No: HW30404502
- Barcode: 6938994412315
