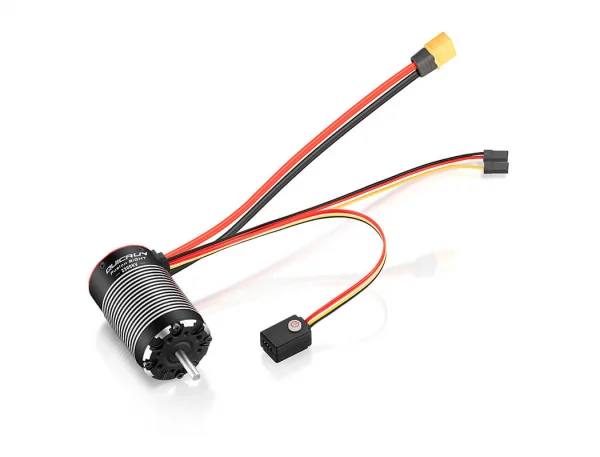

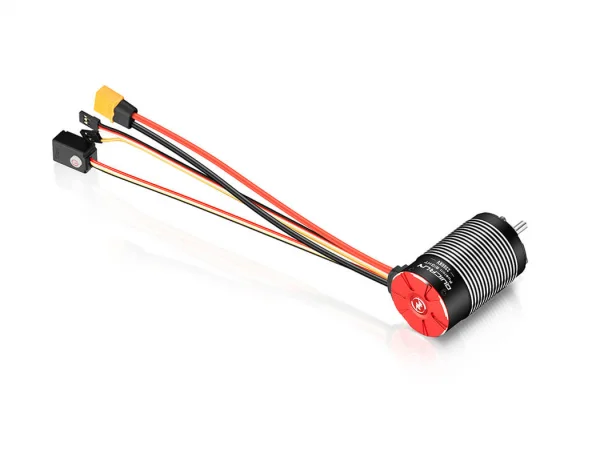

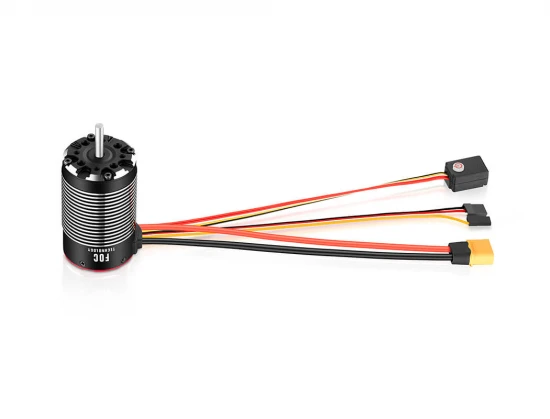

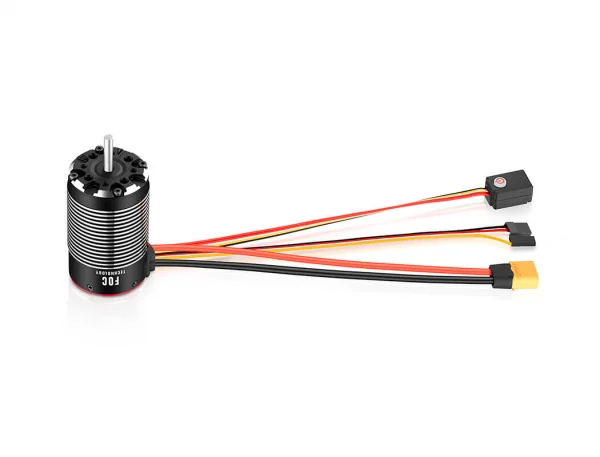

Hobbywing Quicrun Fusion 8ight Combined ESC/Motor - 2300kv 1:8 Crawler

The Hobbywing Quicrun Fusion 8ight Combined ESC/Motor (HW30120404) delivers a sensored, waterproof 2300KV setup purpose-built for 1/8 scale rock crawlers. Bringing the controller and motor together in a single unit, it provides smooth low-speed control with robust current handling for demanding terrain.

Key Specifications

• Scale: 1/8
• Motor Type: Brushless, sensored
• Waterproof: Yes
• Continuous / Peak Current: 80A / 240A
• Input Voltage: 2–4S LiPo or 6–12 cell NiMH
• BEC Output: Switch-mode, adjustable 6.0V / 7.4V / 8.4V, 6A continuous
• KV Rating: 2300KV
• Motor Poles: 4
• Input Wires: 13AWG, 250mm (black x1, red x1)
• Input Connector: XT60
• Motor Size: 42mm diameter x 69mm length
• Shaft: 5mm diameter, 18.5mm exposed length
• Weight: 338g (including wires and connectors)

Programming Options

• ESC Set Button Programming: Not supported
• LED Program Box: Supported
• LCD G2 Program Box / LCD PRO: Supported
• OTA Programmer: Not supported
• Program Port: Independent programming port (switch position)
• Firmware Upgrade: Not supported

Suggested Compatibility

Intended for 1/8 rock crawler applications using 2–4S LiPo (or 6–12 cell NiMH) and an XT60 power connector. Please confirm space, mounting, shaft size and voltage requirements on your model to ensure appropriate fit and performance.
