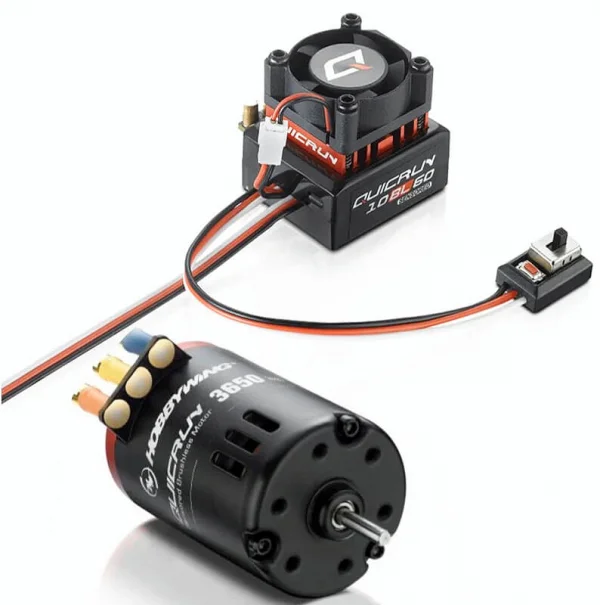

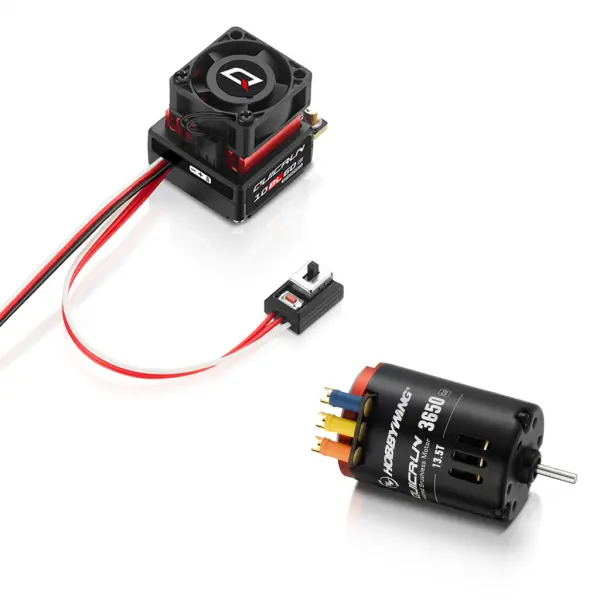

Hobbywing Quicrun G2 10BL60 ESC Combo With 3650Sd 13.5T Motor
Brand: Hobbywing
Part No: HW30803201
In Stock: Usually ships same day
The Hobbywing Quicrun G2 10BL60 ESC Combo With 3650Sd 13.5T Motor pairs a sensored QuicRun 10BL60 G2 speed control with the 3650 SD G2 13.5T motor for smooth, responsive power delivery. Aimed at entry-level and intermediate builders, this combo focuses on straightforward setup, dependable performance and excellent value.
At its core, the ESC delivers 60A continuous and 200A peak current, backed by an upgraded switch‑mode BEC offering 6V/7.4V at 4A (up to 7A peak). Support for Boost/Turbo timing adjustments up to 24 degrees lets you unlock extra speed when needed, while multiple built-in protections enhance reliability run after run.
Key Features
- Sensored G2 ESC design for silky low‑speed control and easy setup
- 60A continuous / 200A peak current handling
- Switch‑mode BEC: 6V/7.4V selectable, 4A continuous (7A peak)
- Boost/Turbo timing support up to 24°
- Integrated protections: low voltage, over‑temperature, throttle signal loss and overload
- Motor rotation direction adjustable
- Programming via SET button, LED Program Box, LCD G2 Program Box or LCD Pro
- Non‑waterproof construction
ESC Specifications
- Scale: 1/10
- Motor compatibility: sensored and sensorless brushless
- Battery input: 2S LiPo
- BEC output: 6V/7.4V switch mode @ 4A (7A peak)
- Input connectors: none (user soldering required)
- Output connectors: none
- Wiring: 14AWG, approx. 175mm
- Program port: shared with fan port
- Data recording: not supported; firmware upgrade: not supported
- Size: 35.0 × 31 × 30.8 mm; Weight: 66.5 g (incl. wires)
Motor Highlights
- 3650 SD G2 13.5T sensored brushless motor
- Enhanced cooling with a silicon O‑ring between end bell and stator for efficient heat transfer
- Pre‑soldered 3.5 mm low‑impedance bullet connectors for stable, plug‑and‑play hookup to the ESC
- Rebuildable design with removable end bell for routine maintenance and replacement of wear items such as rotor and sensor module (e.g., bearings)
Suggested Compatibility
Suitable for 2S LiPo setups with sensored or sensorless brushless motors. Suggested compatibility includes 1/10 touring cars, buggies and drift cars, as well as select 1/12 and 1/14 vehicles.
Part number HW30803201 integrates proven Hobbywing hardware with accessible tuning options, making it a strong choice for drivers seeking reliable control, solid current handling and the flexibility to grow their setup over time.
Secured by Stripe
Introducing the Hobbywing QuicRun 10BL60 Sensored G2 Brushless Speed Control and 3650 SD G2 motor combo.
Outstanding Quality, Amazing Price.
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.
Powerful Built In BEC.
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V. It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
Supports Boost/Turbo Timing Technology.
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
High Reliability And Durability.
- Low voltage protection.
- Over-temperature protection.
- Throttle signal loss protection.
- Overload protection.
Continuous Current 60A. Peak Current 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
Support Multipleprogramming Methods.
The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
Support Motor Rotation Adjustment.
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
SpecificationsESC
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 60A/200A
Input Voltage: 2S LiPo
BEC Output: Switch Mode 6V/7.4V@4A
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1?Yellow-14AWG-175mm*1?Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD Pro: Supported
OTA Programmer: Not Supported
Program Port: Shared with fan port
Date Recording: Not supported
Firmware Upgrade: Not Supported
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires&connectors)
Applications: Motors -Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Touring, Buggy, Drift,1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2
Motor
Great Heat-Dissipation.
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions.
Plug-and-Play.
Customised 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
Re-buildable Design.
The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
Key Info:
- Brand: Hobbywing
- Part No: HW30803201
- Barcode: 6938994420266
