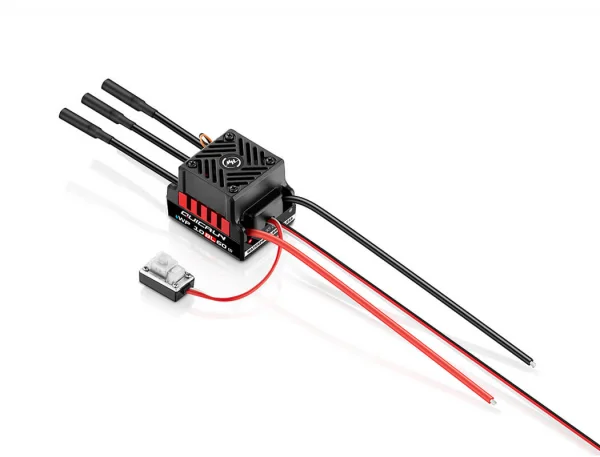

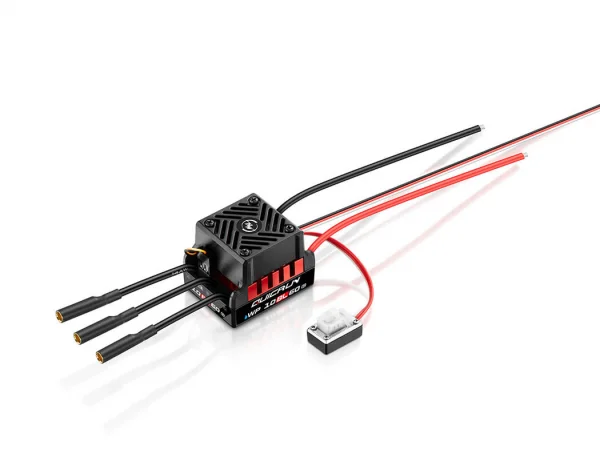

HobbyWing Quicrun WP 10BL60 G2 Brushless Sensorless 60A ESC

The Hobbywing QuicRun WP 10BL60 G2 (part number HW30107300) is a waterproof 60A brushless sensorless ESC designed for 1/10 scale RC cars. It supports 2–3S LiPo power, delivers a robust 60A continuous and 360A peak current, and features a reliable 6V/3A switch-mode BEC to power your radio gear. Simple setup via the on-ESC SET button and support for Hobbywing LED/LCD Program Boxes make tuning straightforward, while a 30mm cooling fan keeps temperatures in check.

Specifications

• Scale: 1/10
• Motor type: Brushless; operates in sensorless mode (compatible with sensored brushless motors in sensorless operation)
• Waterproof: Yes
• Continuous/Peak current: 60A / 360A
• Input voltage: 2–3S LiPo
• BEC: Switch-mode 6V @ 3A
• Input wires: Black 14AWG 150mm x1; Red 14AWG 150mm x1
• Output wires: Black 14AWG 60mm x3
• Input connectors: None
• Output connectors: 4.0mm gold (female)
• Cooling fan: 30 x 30 x 10mm; 6V; powered by BEC
• Programming: SET button on ESC; LED Program Box supported; LCD G2 Program Box supported; LCD PRO supported; OTA programmer not supported
• Data and firmware: Extreme value, real-time and historical data not supported; firmware upgrade not supported
• Size: 46 x 36.5 x 34.3mm
• Weight: 82.6g (including wires and connectors)
• Suggested compatibility: 1/10 on-road, buggy, short course truck
• KV rating (motor limits): 2S LiPo ≤ 6000KV; 3S LiPo ≤ 3500KV (3652/3660 size motor)
