Hobbywing QuicRun WP 10BL80 + 3530SL 1700KV Combo
Brand: Hobbywing
Part No: HW38030215
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Quicrun WP 10BL80 Crawler ESC Combo With 3530SL 1700Kv Outrunner Motor
Description

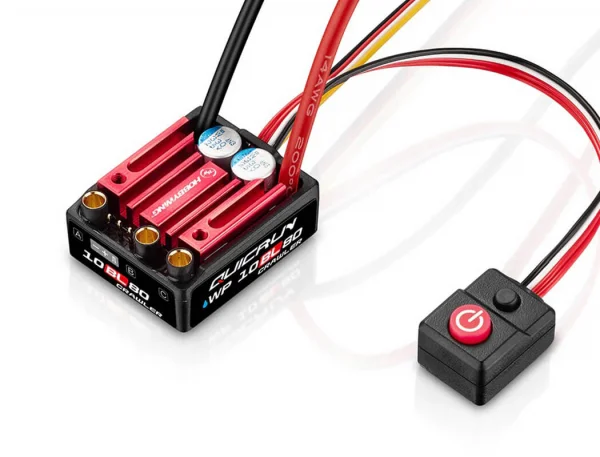

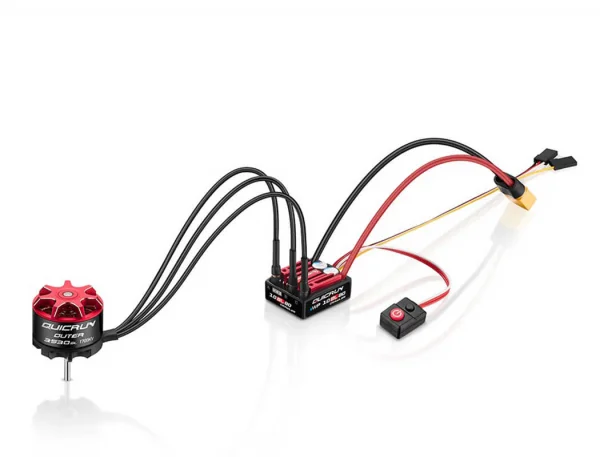

The Hobbywing QuicRun Combo ESC WP 10BL80/3530SL 1700KV brings compact, capable performance to 1/10th scale crawling. Pairing the QuicRun WP 10BL80 crawler ESC with the QR3530SL 1700KV sensorless outrunner motor, this combo emphasises smooth low-speed control and strong torque in a small footprint. Supplied as a matched set under part number HW38030215.
Key Specifications
- Continuous / Peak Current: 80A / 240A
- Motor Support: Sensorless brushless and brushed motors
- Battery: 2–4S LiPo
- BEC Output: 6.0V / 7.4V / 8.4V, 5A
- ESC Size: 36(L) × 30(W) × 15.5(H)mm
- Weight: 47.8g (including wires and connectors)
- Programming Port: Independent
- Motor: QR3530SL sensorless outrunner, 1700KV
Suggested Compatibility
- Applications: 1/10 crawlers
- Applicable Motors: Outer 3530SL sensorless outrunner motors, 540, 555 and other brushed motors
What’s Included
- 1 × WP 10BL80 crawler ESC
- 1 × QR3530 SL outer motor (1700KV)
- Factory-installed XT60 plug
- 1 × Decal and manual
- 1 × Heatshrink kit, double-sided tape, and zip ties
Secured by Stripe
Hobbywing Quicrun WP 10BL80 Crawler ESC Combo With 3530SL 1700Kv Outrunner Motor Manuals & Guides
Specifications
Compact, Powerful, and Capable: 4S/80A performance in a 36×30×15.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.
SpecificationsContinuous / Peak Current: 80A / 240A
Motor Type: Sensorless Brushless Motor, and Brushed Motor
Applications: 1/10 Crawlers
Applicable Motors: Outer 3530SL Sensorless Outrunner Motors, 540, 555 Including Other Brushed Motors
LiPo Cells: 2-4s LiPo
BEC Output: 6.0V / 7.4V / 8.4V, 5A
Size: 36(L)*30(W)*15.5(H)mm
Weight: 47.8g (Included Wires & Connectors)
Programming Port: Independent
- 1 x WP 10BL80 Crawler ESC.
- 1 x QR3530 SL Outer Motor.
- Factory-installed XT60 plug.
- 1 x Decal and Manual.
- 1 x Heatshrink kit, double-sided tape, and zip ties.
Key Info:
- Brand: Hobbywing
- Part No: HW38030215
- Barcode: 6938994420389
