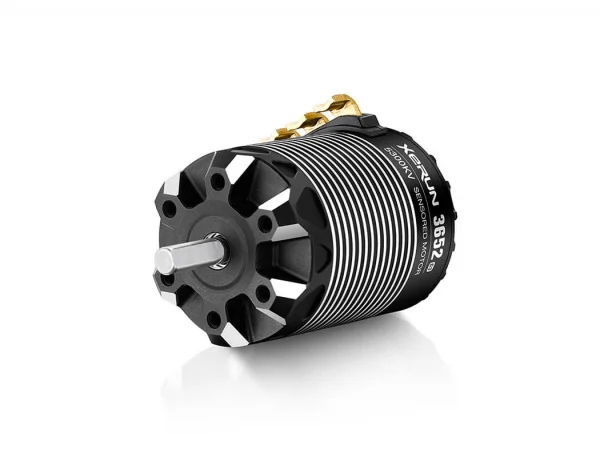

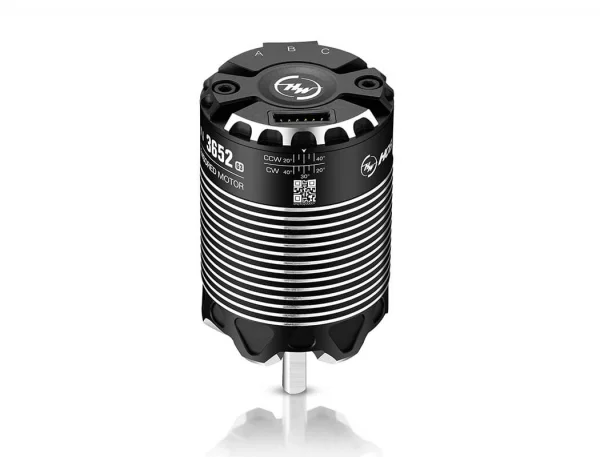

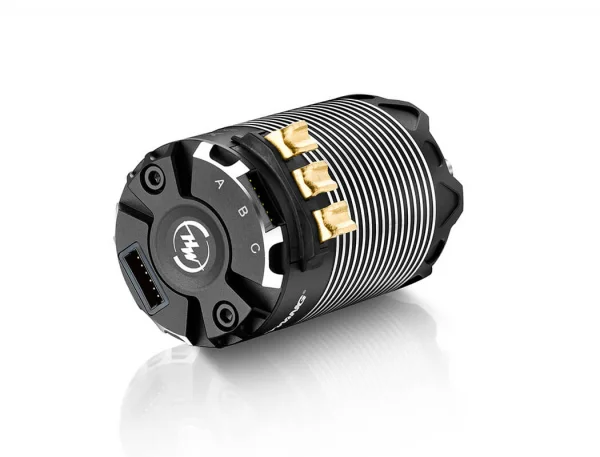

Hobbywing Xerun 3652Sd 4500Kv Black G3 Motor

The Hobbywing Xerun 3652SD 4500KV Black G3 Motor, part number HW30401064, is a 1/10-scale sensored (SD) brushless 4-pole motor. With a 36.6 mm can diameter, 53 mm length and 5 mm shaft, it offers a practical footprint for many 1/10 RC car applications where compact sizing and precise motor control are important.

Rated at 4500KV for use with 2S LiPo systems, this G3 series motor lists detailed bearing specifications and a 189 g weight, helping builders match components confidently. It is presented as part of Hobbywing’s Xerun line, with guidance on ESC and vehicle types provided below as suggested compatibility.

Key Specifications

• Scale: 1/10
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Pole Count: 4
• KV Rating: 4500KV
• LiPo Cells: 2S
• No-load Current: 6.1A
• Outer Diameter: 36.6 mm
• Length: 53 mm
• Shaft Diameter: 5 mm
• Weight: 189 g
• Front Bearing: D13×D5×T4
• Rear Bearing: D11×D5×T5

Suggested Compatibility

• ESC: Hobbywing Xerun XR8 Pro G3
• Vehicles: 1/10 short course car (2WD), buggy, rally
