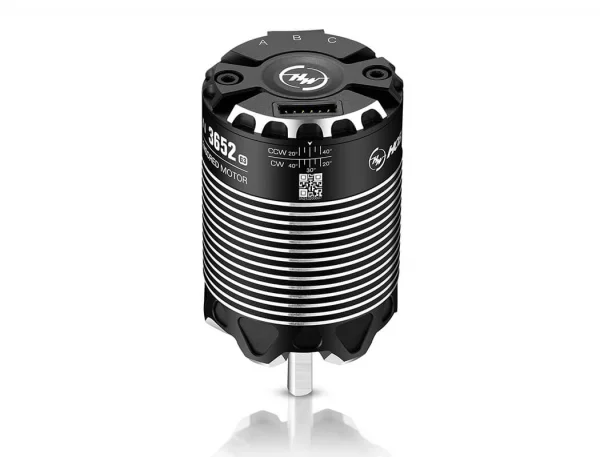

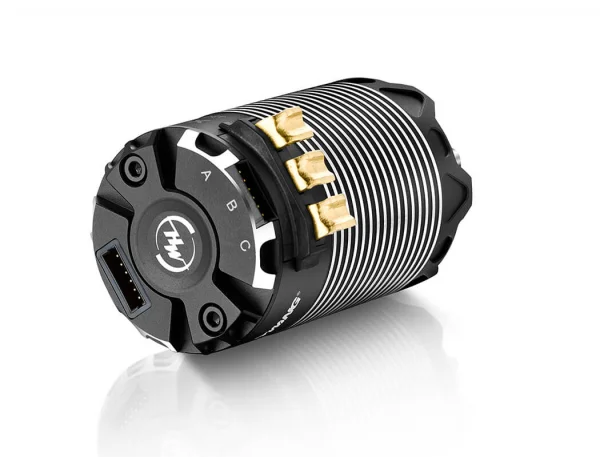

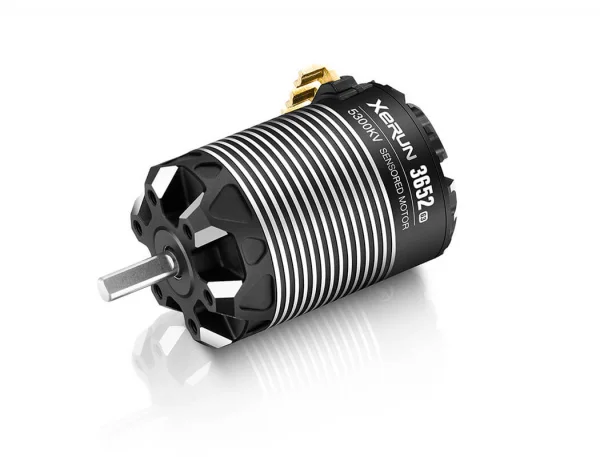

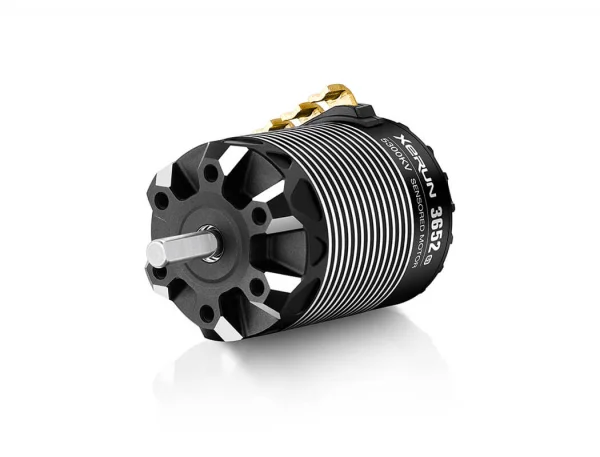

Hobbywing Xerun 3652SD G3 Motor 5300KV (Black)

The Hobbywing Xerun 3652SD Black G3 Motor (HW30401065) is a sensored, 4-pole brushless option for 1/10 scale RC applications. Built in the popular 3652 size, it offers a compact form factor with robust construction for use in a range of on- and off-road platforms.

Key dimensions include a 36.6 mm outer diameter, 53 mm length and a 5 mm output shaft, with a listed weight of 194 g. The motor is specified for 2S LiPo systems and has a no-load current of 7.5 A. Bearing details are D13×D5×T4 at the front and D11×D5×T5 at the rear.

Suggested Compatibility

• 1/10 short course car (2WD)
• 1/10 buggy
• 1/10 rally
• Suggested ESC pairing: Hobbywing Xerun XR8 Pro G3

Key Specifications

• Scale: 1/10
• Motor Type: Brushless (BL)
• Sensored: Yes (SD)
• Pole Count: 4
• LiPo Cells: 2S
• No-load Current: 7.5 A
• Outer Diameter: 36.6 mm
• Length: 53 mm
• Shaft Diameter: 5 mm
• Weight: 194 g
• Front Bearing: D13×D5×T4
• Rear Bearing: D11×D5×T5
