Hobbywing Xerun 3660SD G2 3600Kv Motor Black
Brand: Hobbywing
Part No: HW30401151
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description

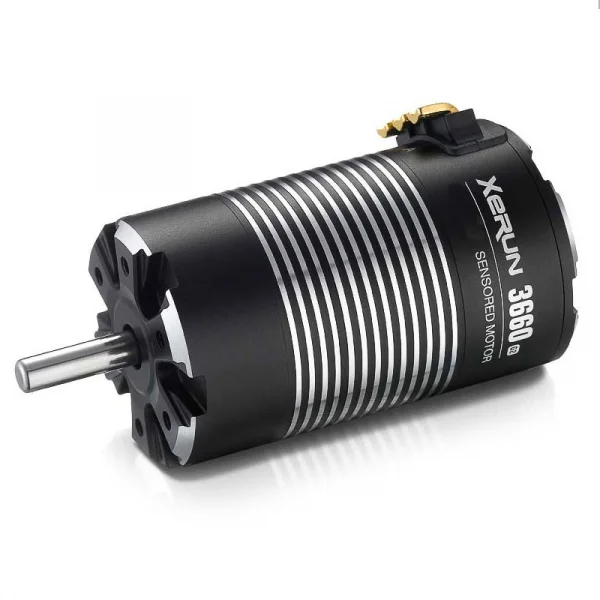

The Hobbywing Xerun 3660SD D5.00 3600Kv G2 Motor (Black) is a 4-pole, sensored brushless motor designed for powerful, smooth control in 1/10 scale applications. When paired with Hobbywing XeRun XR8 series ESCs, its built-in identification chip enables full-time sensored operation and access to Turbo Timing for maximum performance. An advanced, error-resistant Hall sensing system and staggered pole rotor geometry help deliver ultra-low cogging and refined throttle feel.
Premium construction underpins its durability and efficiency, including double insulated windings, Japanese NMB bearings, super-thin silicon steel laminations and lightweight end bell design. Bi-directional adjustable timing lets you fine-tune power delivery, while the turbine-inspired design promotes efficient cooling.
Features
- Full-sensored mode capability with Hobbywing system pairing
- Turbo Timing technology (with suitable ESC pairing)
- Bi-directional adjustable timing (20–40 degrees)
- Advanced Hall sensing system for clean, stable signals
- Low cogging torque from a 4-pole/8-magnet staggered rotor
- Quality materials: double insulated windings, NMB bearings, thin silicon steel
- Turbine-inspired design to aid cooling
- Suggested compatibility: Hobbywing XeRun XR8 SCT and XR8 series ESCs
Specifications
- Scale: 1/10
- Type: Brushless, sensored (SD)
- Pole count: 4
- KV rating: 3600Kv
- LiPo: 2–3S
- No-load current: 4.1 A
- Resistance: 5.6 mΩ
- Diameter: 36 mm
- Length: 62 mm
- Shaft diameter: 5 mm
- Shaft length: 17 mm
- Weight: 214 g
- Timing range: 20–40° (adjustable)
Suggested Compatibility
- Hobbywing XeRun XR8 series ESCs (including XR8 SCT) for full-time sensored operation and Turbo Timing
When used with non-XR8 ESCs, operation may not remain in sensored mode at all times.
Secured by Stripe
Hobbywing Xerun 3660Sd D5.00 3600Kv G2 Motor (Black) Manuals & Guides
Specifications
HOBBYWING XERUN 3660SD D5.00 3600KV G2 MOTOR (BLACK)
The first 4-pole motor with a built-in chip which helps ESC identify it's a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the "sensored" mode (at all times) and provide users with the better performance and smoother control. Note: this motor is compatible with other ESCs but unable to work in the "sensored" mode at all times.
The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.
The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.
The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.
The use of double insulated windings (200? R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300?) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.
HobbyWing XeRun 3660 SD G2 Features:
- Full-sensored Mode
- Turbo Timing Technology
- Bi-directional Adjustable Timing
- Advanced Hall Sensing System
- Low Cogging Torque
- Quality Materials & Excellent Design
- Turbine Design
- Compatible with the XeRun XR8 SCT ESC
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Pole Count: 4
- KV Rating: 3600
- LiPo Cells: 2-3S
- No-load Current(A): 4.1
- Resistance(mΩ): 5.6
- O.D.(mm): 36mm (1.417in)
- Length(mm): 62 (2.44in)
- Shaft Diameter(mm): 5 (0.197in)
- Weight(g): 214
- Shaft Length(mm): 17 (0.669in)
- Timing: 20-40 Degrees (Adjustable)
Key Info:
- Brand: Hobbywing
- Part No: HW30401151
