Hobbywing XERun AXE Plus R3 ESC Combo With AXE 4274Sd 1700Kv R3 Motor
Brand: Hobbywing
Part No: HW38020384
Out Of Stock
Request Stock NotificationThe Hobbywing XERun AXE Plus R3 ESC Combo with AXE 4274SD 1700Kv R3 Motor (HW38020384) brings field-oriented control precision, strong torque delivery and refined low-speed modulation to demanding RC rock crawler applications. Combining the XERun AXE Plus R3 ESC with the AXE 4274SD 1700Kv R3 motor, this package is engineered for smooth, confident control and impressive power across varied terrain.
The AXE Plus R3 ESC integrates FOC technology, a powerful switch-mode Super BEC and a built-in Bluetooth module for quick setup via the HW LINK app. The AXE 4274SD motor pairs seamlessly with the ESC, featuring a high-precision magnetic encoder for accurate rotor position feedback. Both units are sealed to IP67 for protection against water and dust, offering robust performance in harsh conditions.

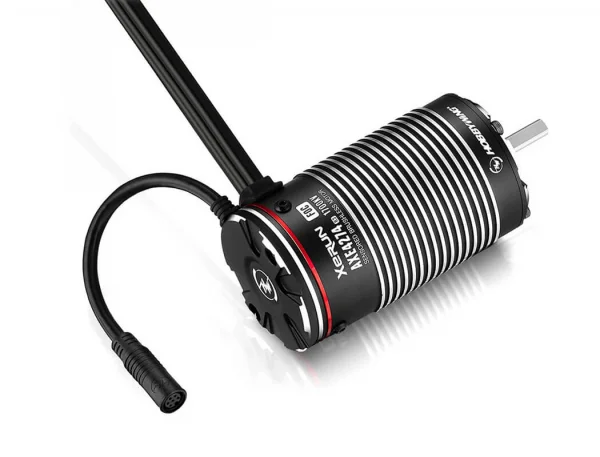

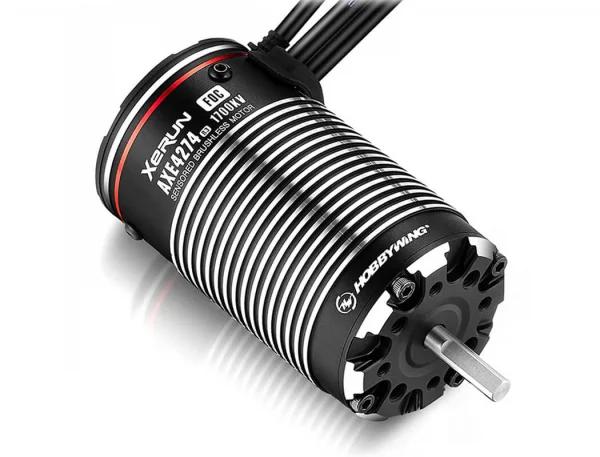

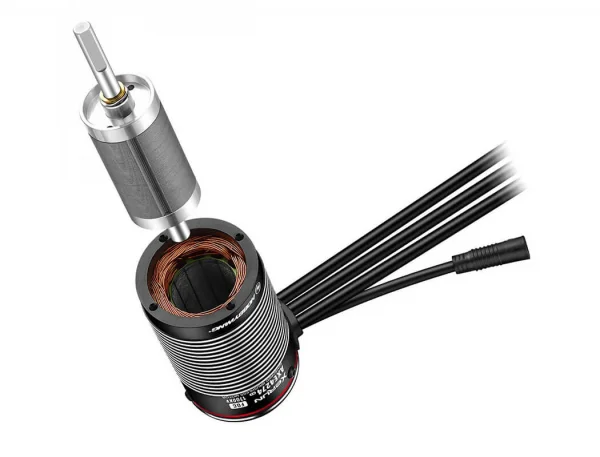

Features – AXE 4274SD 1700Kv R3 Motor
- High-precision magnetic encoder provides accurate rotor position signals to the ESC
- Versatile across different scale areas
- IP67-rated water and dust protection
- High-quality construction materials
- Optimised for sensitive, precise performance
Technical Specifications – AXE 4274SD 1700Kv R3 Motor
- Type: Sensored brushless FOC
- Poles: 4
- KV Rating: 1700KV
- Battery: 3–6S LiPo
- No-Load Current: 4.0A
- Outer Diameter: 42.0 mm
- Length: 74.0 mm
- Shaft: 5.0 mm diameter, 18.5 mm length
- Waterproof: Yes (IP67)
- Weight: 405 g
- Suggested application: 1/8, 1/7, 1/6 rock crawler

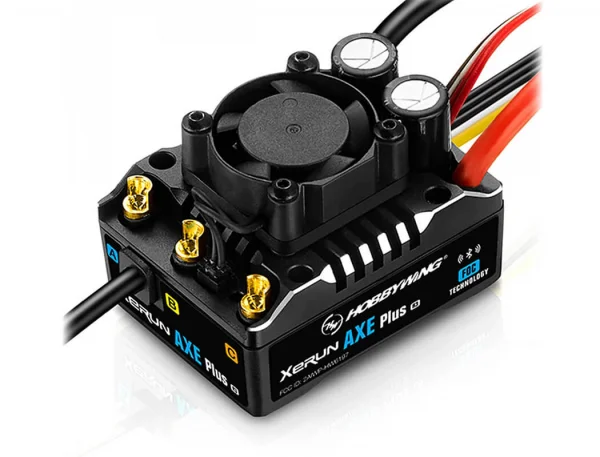

Features – XERun AXE Plus R3 ESC
- FOC technology for stronger, smoother performance
- Drag brake adjustable up to 200% for superior holding power
- Super BEC: 6V / 7.4V / 8.4V at up to 6A
- IP67 waterproof and dustproof sealing
- Smart torque delivery and speed control for consistent pace under load
- Built-in Bluetooth module for wireless setup
- Multiple protections including reverse polarity protection
- Suggested compatibility: XERun AXE R2 and R3 motor series
Technical Specifications – XERun AXE Plus R3 ESC
- Type: Brushless sensored FOC
- Continuous / Peak Current: 135A / 600A
- Battery: 2S–6S LiPo
- Motor limits: AXE R2 (540 / 540L / 550), AXE R3 (4274)
- BEC: 6.0V / 7.4V / 8.4V @ 6A (switch mode)
- Waterproof: Yes (IP67)
- Wires: 12AWG, red & black, 265 mm
- Cooling fan: 25 × 25 × 10 mm, powered by BEC
- Connector: XT60
- Programming: Bluetooth via HW LINK app
- Firmware upgradeable: Yes

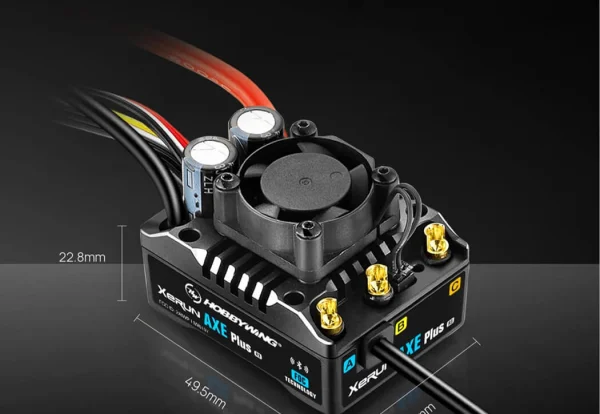

- Dimensions: 49.5 × 37.9 × 32.8 mm
- Weight: 126.5 g
- Suggested application: 1/10, 1/8, 1/6 rock crawler
Secured by Stripe
Experience the ultimate combination of power and precision with the Hobbywing Combo XeRun AXE Plus R3 & AXE 4274SD 1700KV R3 Motor. This set offers unparalleled control and acceleration for RC enthusiasts striving for top-tier performance. With the Xerun AXE Plus R3 ESC, enjoy smooth operation, while the AXE 4274SD 1700KV R3 Motor delivers impressive power. Together, they elevate your RC experience to new heights, ready to tackle any challenge with confidence.
Features XeRun AXE 4274SD 1700KV R3 Motor- The built-in high-precision magnetic encoder sends precise rotor position signals to the ESC
- Versatile in different scale areas
- Excellent protection against water and dust according to IP67 standard
- Use of high quality building materials
- Optimized for sensitive performance development
Type: Sensored Brushless FOC
Poles: 4
kV Rating: 1700KV
Cells: 3-6S LiPo
No-Load Current: 4.0A
Outer Diameter: 42.0mm
Length: 74.0mm
Shaft Diameter: 5.0mm
Shaft Length: 18.5mm
Waterproof: Yes
Weight: 405g
Application: 1/8, 1/7, 1/6 Rock Crawler
- Stronger performance thanks to FOC (Field-Oriented-Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on slopes.
- Super BEC with max. 6A and three voltage levels for using different servos.
- Waterproof and dustproof to IP67 standard.
- Smart torque delivery and speed control for easy control and constant speed under all loads.
- Built-in Bluetooth module.
- Multiple controller protection functions including reverse polarity protection.
- Only compatible with Xerun AX "R2" and "R3" motor series.
Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
Key Info:
- Brand: Hobbywing
- Part No: HW38020384
- Barcode: 6938994416948
