Hobbywing XERun AXE Plus R3 ESC Combo With AXE 540L 1400Kv R2 Motor
Brand: Hobbywing
Part No: HW38020385
Out Of Stock
Request Stock NotificationUnlock precise crawler control with the Hobbywing XERun AXE Plus R3 ESC Combo paired with the AXE 540L 1400KV R2 motor. Delivering smooth FOC drive, strong torque and IP67-ready durability, this HW38020385 set is engineered for consistent, confident performance across varying terrain and conditions.

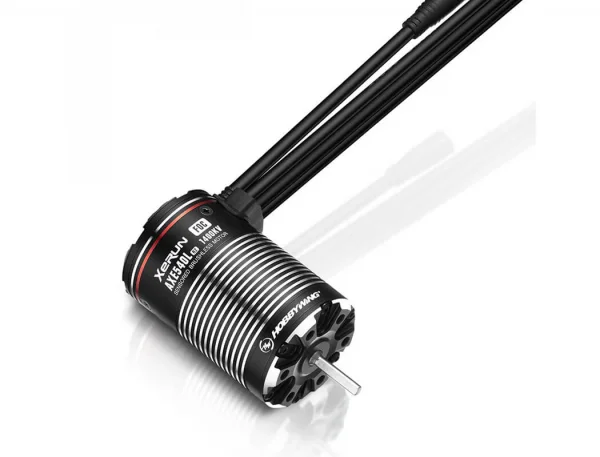

Key Features – Motor
- FOC (Field-Oriented Control) for super linearity and high torque
- Patented Staggered Pole rotor design for ultra-low torque ripple
- Built-in high-precision magnetic encoder
- Applicable to all weather and track conditions
Specifications – Motor
- Type: Brushless FOC
- Poles: 4
- KV Rating: 1400KV
- LiPo Cells: 2S–3S
- No-Load Current: 1.7A
- Outer Diameter: 36.0mm
- Length: 57.8mm
- Shaft Diameter: 3.17mm
- Shaft Length: 15.5mm
- Weight: 211g
- Application: 1/10 rock crawler

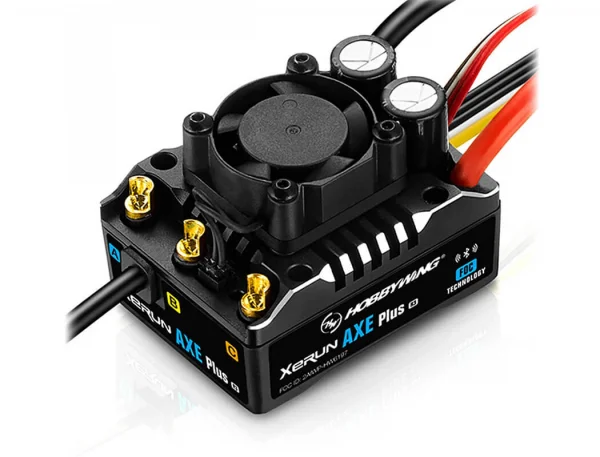

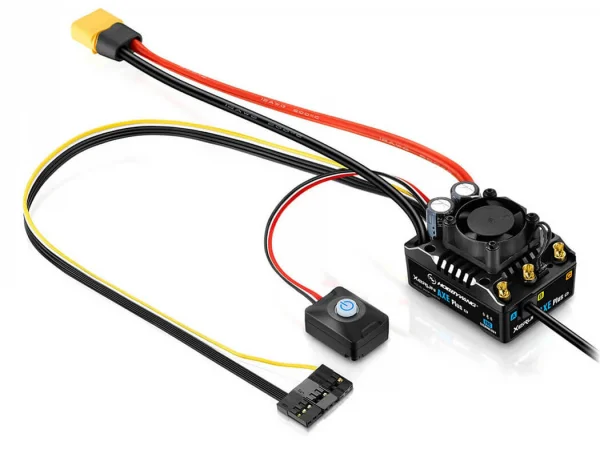

Key Features – XERun AXE Plus R3 ESC
- FOC-based drive for stronger performance and precise low-speed control
- Drag brake adjustable up to 200% for secure holding on steep slopes
- Super BEC: 6V / 7.4V / 8.4V, up to 6A
- Waterproof and dustproof to IP67 standard
- Smart torque delivery and speed control for constant speed under load
- Built-in Bluetooth for HW LINK app setup and firmware updates
- Multiple protections including reverse polarity protection
Specifications – XERun AXE Plus R3 ESC
- Type: Brushless sensored FOC
- Continuous / Peak Current: 135A / 600A
- Cells: 2S–6S LiPo
- Suggested compatibility: Only supports Xerun-AXE 'R2' and 'R3' motor series (AXE R2: 540 / 540L / 550; AXE R3: 4274)
- BEC: 6V / 7.4V / 8.4V @ 6A (switch mode)
- Waterproof: Yes (IP67)
- Cables: 1× 12AWG black (265mm), 1× 12AWG red (265mm)
- Fan: 25 × 25 × 10mm, powered by BEC
- Connectors: XT60
- Programming: Via Bluetooth and HW LINK app
- Firmware Upgrade: Yes

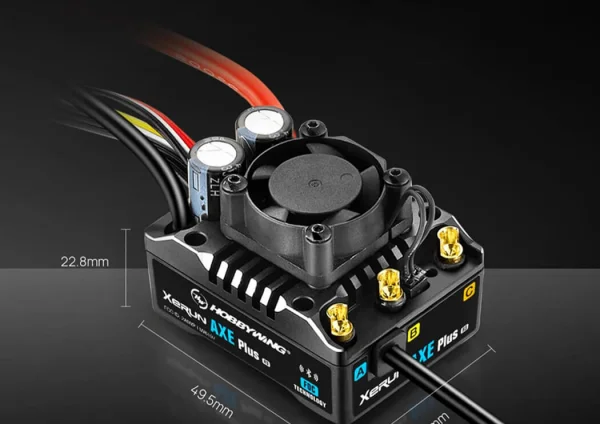

- Dimensions: 49.5 × 37.9 × 32.8mm
- Weight: 126.5g
- Application: 1/10, 1/8, 1/6 rock crawler
What's Included
- 1× XERun AXE Plus R3 ESC
- 1× AXE 540L 1400KV R2 motor
- 1× Manual
Secured by Stripe
Combo XeRun AXE Plus R3 & AXE 540L 1400KV R2 Motor
Experience the pinnacle of RC performance with the Hobbywing Combo XeRun AXE Plus R3 & AXE 540L 1400KV R2 Motor. This combo offers unparalleled control and power, making it ideal for enthusiasts seeking top-tier performance in their RC vehicles. The XeRun AXE Plus R3 ESC features advanced technology for smooth operation and precise control, while the AXE 540L 1400KV R2 Motor delivers impressive torque and acceleration. Together, they form a dynamic duo that elevates your RC experience to new heights.
Features Motor- FOC (Field-Oriented-Control) for super linearity and high torque
- Patented Staggered Pole rotor design for ultra-low torque ripple
- Applicable to all weather and track conditions
- Built-in high precision magnetic encoder
Type: Brushless FOC
Pole: 4
KV Rating: 1400KV
LiPo Cells: 2S-3S
No Load Current: 1.7A
Outer Diameter: 36.0mm
Length: 57.8mm
Shaft Diameter: 3.17mm
Shaft Length: 15.5mm
Weight: 211g
Application: 1/10 Rock Crawler
- Stronger performance thanks to FOC (Field-Oriented-Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on slopes.
- Super BEC with max. 6A and three voltage levels for using different servos.
- Waterproof and dustproof to IP67 standard.
- Smart torque delivery and speed control for easy control and constant speed under all loads.
- Built-in Bluetooth module.
- Multiple controller protection functions including reverse polarity protection.
- Only compatible with Xerun AX "R2" and "R3" motor series.
Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
- 1x Xerun AXE Plus R3 ESC
- 1x Motor
- 1x Manual
Key Info:
- Brand: Hobbywing
- Part No: HW38020385
- Barcode: 6938994416955
