Hobbywing XERun AXE Plus R3 ESC Combo With AXE 540L 2100Kv R2 Motor
Brand: Hobbywing
Part No: HW38020386
Shadow Stock: Usually ships next day
Unlock precise, quiet and powerful crawling performance with the Hobbywing XERun AXE Plus R3 ESC Combo with AXE 540L 2100KV R2 Motor (HW38020386). Combining FOC control with advanced torque management and Bluetooth tuning, this premium pairing delivers smooth throttle response, strong holding power and robust all-weather reliability for serious RC rock crawlers.

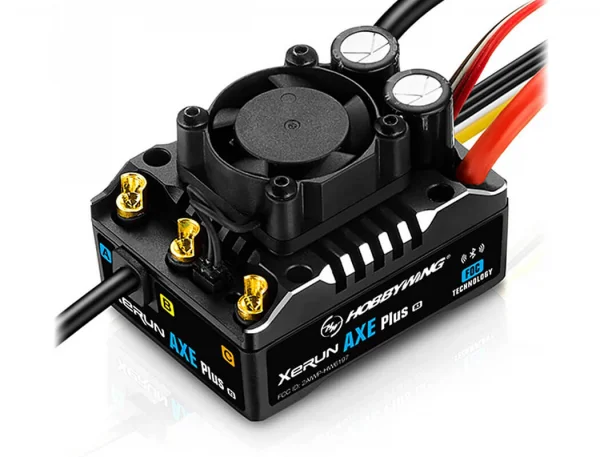

Key Features – XERun AXE Plus R3 ESC
- FOC (Field-Oriented Control) for stronger, smoother performance.
- Drag brake adjustable up to 200% for exceptional hill-hold.
- Super BEC: max 6A with 6V / 7.4V / 8.4V output levels.
- IP67 waterproof and dustproof design.
- Smart torque delivery and speed control for consistent crawl under load.
- Built-in Bluetooth module for easy setup.
- Multiple protection features, including reverse polarity protection.
- Suggested compatibility: XERun AX "R2" and "R3" motor series.

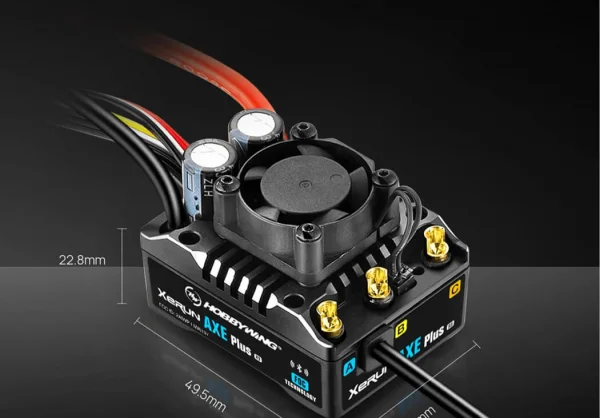

Technical Specifications – XERun AXE Plus R3
- Type: Brushless, sensored FOC
- Current (continuous/peak): 135A / 600A
- LiPo: 2S–6S
- BEC: 6V / 7.4V / 8.4V @ 6A (switch-mode)
- Waterproof: Yes (IP67)
- Cables: 12AWG black 265mm, 12AWG red 265mm
- Fan: 25 × 25 × 10mm, powered by BEC
- Connectors: XT60
- Programming: Built-in Bluetooth via HW LINK app
- Firmware upgrade: Yes
- Dimensions: 49.5 × 37.9 × 32.8mm
- Weight: 126.5g
- Suggested application: 1/10, 1/8, 1/6 rock crawler

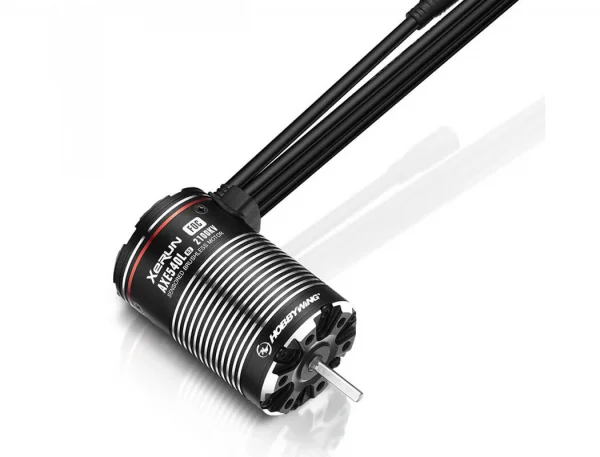

Key Features – AXE 540L 2100KV R2 Motor
- FOC drive for super linearity and high torque.
- Patented Staggered Pole rotor design for ultra-low torque ripple.
- Built-in high precision magnetic encoder.
- Suitable for all-weather and varied track conditions.
Technical Specifications – AXE 540L 2100KV R2 Motor
- Type: Brushless FOC
- Poles: 4
- KV rating: 2100KV
- LiPo cells: 2S–3S
- No-load current: 2.7A
- Outer diameter: 36.0mm
- Length: 57.8mm
- Shaft diameter: 3.17mm
- Shaft length: 15.5mm
- Weight: 212g
- Suggested application: 1/10 rock crawler
This Hobbywing combo pairs the AXE Plus R3 ESC and AXE 540L 2100KV R2 motor to deliver exceptional crawl control, efficient power delivery and reliable operation in demanding terrain and conditions.
Secured by Stripe
Elevate your RC car with the Hobbywing Combo Xerun AXE Plus R3 & AXE 540L 2100KV R2 Motor. Designed for enthusiasts seeking superior performance, this combo delivers unrivaled control and power. The Xerun AXE Plus R3 ESC ensures smooth operation and precise handling, while the AXE 540L 2100KV R2 Motor offers impressive torque and acceleration. Together, they redefine your RC experience, offering unparalleled performance and excitement.
Features Xerun AXE Plus R3- Stronger performance thanks to FOC (Field-Oriented-Control) technology.
- Drag brake adjustable up to 200% for unparalleled holding power on slopes.
- Super BEC with max. 6A and three voltage levels for using different servos.
- Waterproof and dustproof to IP67 standard.
- Smart torque delivery and speed control for easy control and constant speed under all loads.
- Built-in Bluetooth module.
- Multiple controller protection functions including reverse polarity protection.
- Only compatible with Xerun AX "R2" and "R3" motor series.
Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
- FOC (Field-Oriented-Control) for super linearity and high torque
- Patented Staggered Pole rotor design for ultra-low torque ripple
- Applicable to all weather and track conditions
- Built-in high precision magnetic encoder
Type: Brushless FOC
Pole: 4
KV Rating: 2100KV
LiPo Cells: 2S-3S
No Load Current: 2.7A
Outer Diameter: 36.0mm
Length: 57.8mm
Shaft Diameter: 3.17mm
Shaft Length: 15.5mm
Weight: 212g
Application: 1/10 Rock Crawler
Key Info:
- Brand: Hobbywing
- Part No: HW38020386
- Barcode: 6938994416962
